Description
DESCRIPTION:

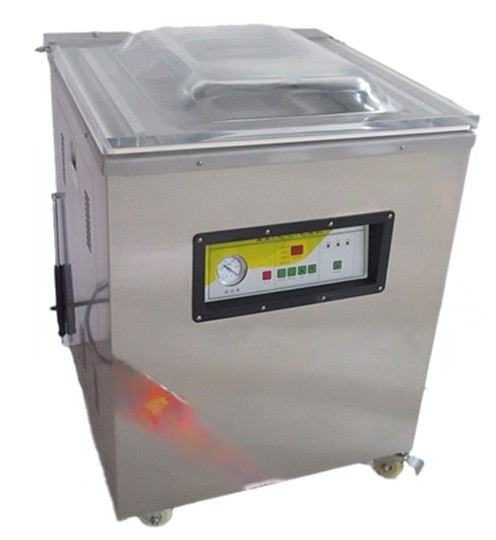

- IA series Vacuum Chamber Packing Machine can finish the whole programs of vacuum extraction, gas flushing (optional), sealing, cooling and exhaust automatically.
- The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for longer time.
TECHNICAL PARAMETER:
| Model | IA-400/2ES | IA-500/2ES | IA-600/2ES | IA-1040/2S | |
| Voltage (V/Hz) | AC 220/50 110/60 | AC 380/50 | AC 380/50 220/60 | ||
| Motor Power (W) | 750 | 1100 | 750×2 | ||
| Sealing Power (W) | 500 | 750 | 900 | 1500 | |
| Ultimate Vacuum Pressure (Kpa) |
1 | ||||
| NO. of Sealing Bar for Each Chamber |
2 | 2 | |||
| Sealing Length (mm) | 400 | 500 | 600 | 900/400 | |
| Sealing Width (mm) | 10 | ||||
| Chamber Dimensions (L×W×H) (mm) |
440×420×130 | 530×525×130 | 700×620×250 | 1035×450×170 | |
| Vacuum Pum Rate (m3/h) |
20 | 40 | |||
| Material of Vacuum Chamber |
Stainless steel | ||||
| External Dimensions (L×W×H) (mm) |
540×480×1010 | 580×650×1010 | 760×770×970 | 1110×625×870 | |
| Net Weight (kg) | 110 | 125 | 150 | 200 | |
