Description
FEATURES:

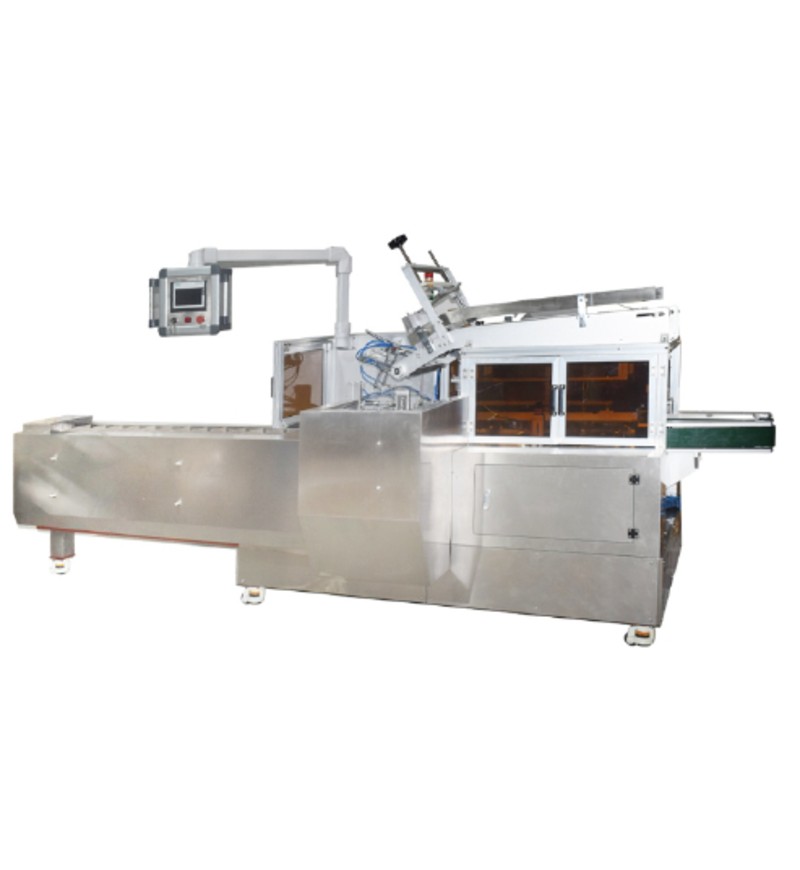

Automatic Cartoning Machine is the newest model which is our company further improved on the basis of advanced technologies at home and abroad. It is the high-tech product whick integrates electricity, gas, light. The product is suitable for cartooning the pharmaceutical products, foods and cosmetic, poker, electronic and daily products and so on. The machine can finish automatically all hobs such as automatic side lining, carton opening, euro-hole folding, the stuff cartooned, carton sealing and so on. It can be used alone, or be linked with the other device, to be a production line.
TECHNICAL PARAMETER:
| Model | IA-130X/SK | |
| Encasing speed | 25-35 boxes/min | |
| Box | Quanlity requirement | Gray cardboard: 300-350g/m3
White cardboard: 250-350g/m3 Corrugated paper: customized |
| Dimension range (LxWxH) | 245 x 130 x 80mm (adjustable) | |
| Compressed air | Working pressure | 0.5-0.8mpa |
| Air consumption | 20m3/h | |
| Power supply | 240v/220v/380v 50Hz | |
| Machine noise | <70dm | |
| Motor power | 1.5kw | |
| Dimension | 4146 x 1306 x 1884mm (LxWxH) | |
| Weight | 2500kg | |
| Machine frame | Stainless steel, carbon steel and aluminum | |
| Speed | 25-35 box/min | |
| Remark | PLC micro-computer control
Aluminum alarm when box lack |
|
SPECIFICATION OF HOT MELT MACHINE:
| Model | IA-168 |
| Capacity | 5L |
| Max temperature | 200℃ |
| Max melt speed | 7kg/hrs |
| Max work pressure | 8.7mpa |
| Nozzle | 1-2 |
| Voltage | 200-240v, 1 or 3 phase, 50/60Hz |
| Size | 520 x 339 x 475mm |
| Weight | 31kg |
PACKING SAMPLE:
