Description
APPLICATION:

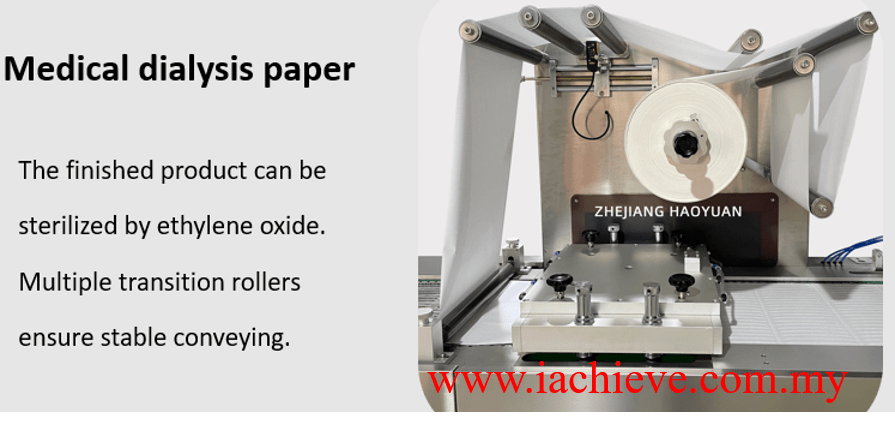

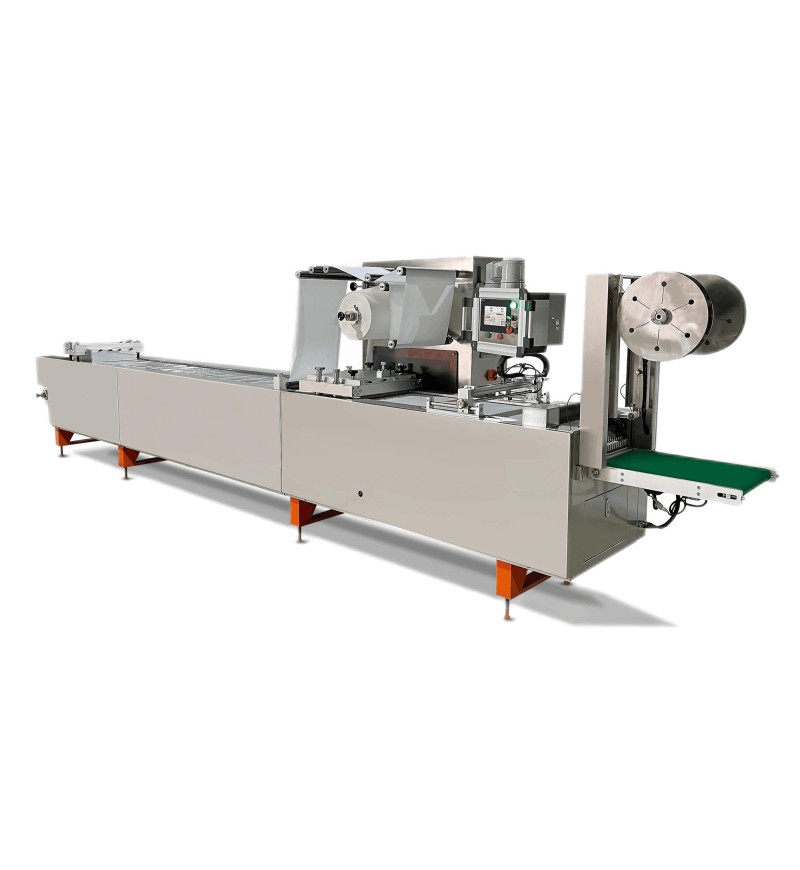

1.This machine is widely used in paper-PE blister packing for medical appliances (such as syringe needle, injector, pledged)

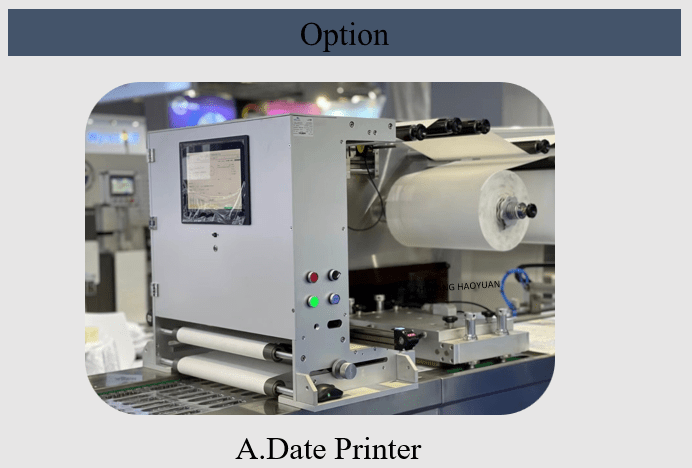

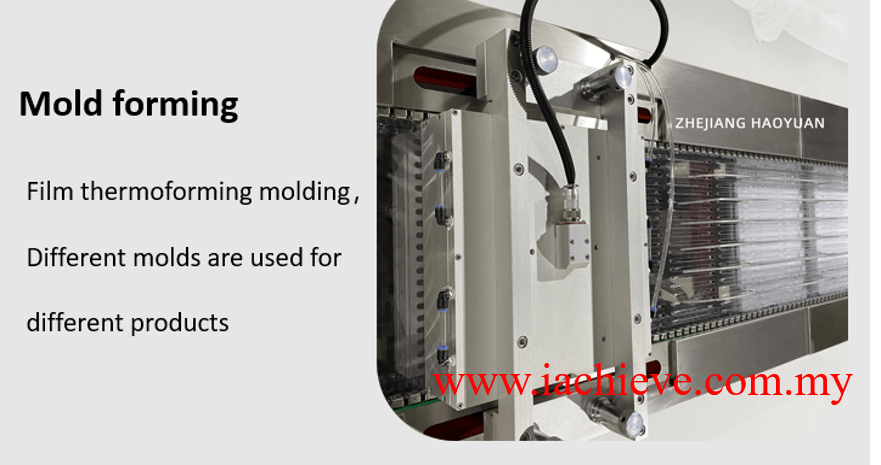

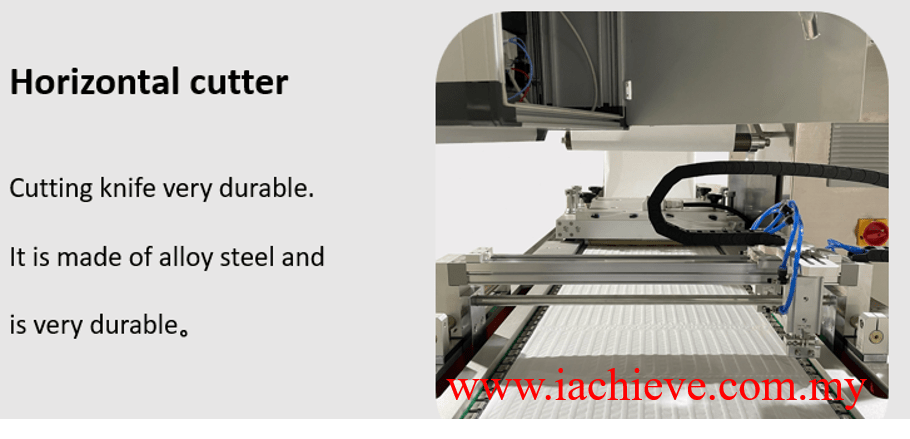

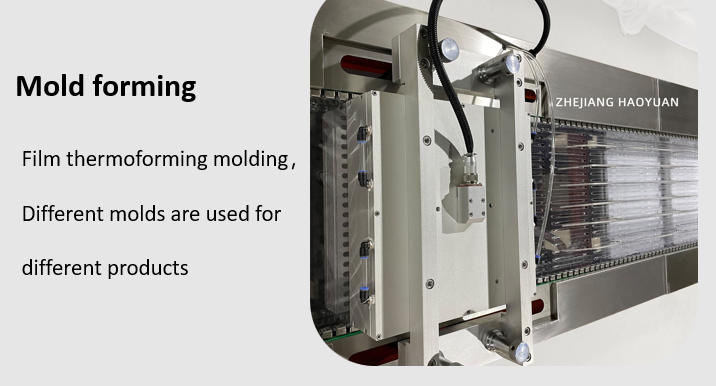

2.It can continuously finish the full processing of heating in machine for PE film, forming the blister, falling appliances, sealing, batch number printed, vertical and cross cutting and transfer the final product.

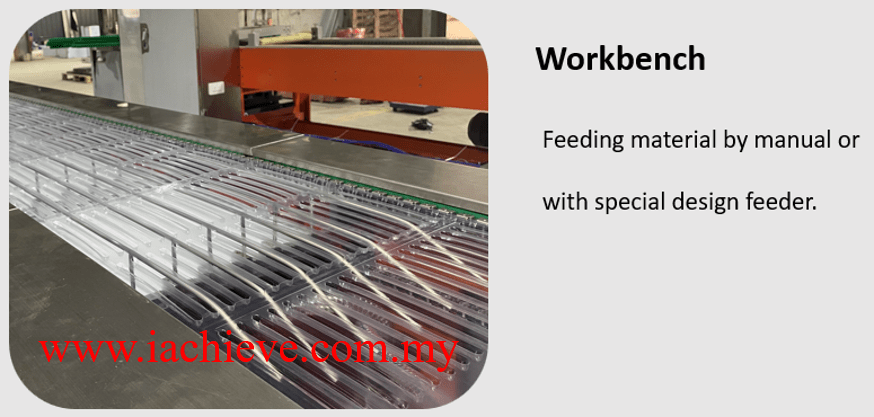

3.Specific feeder can be configured according to different material.

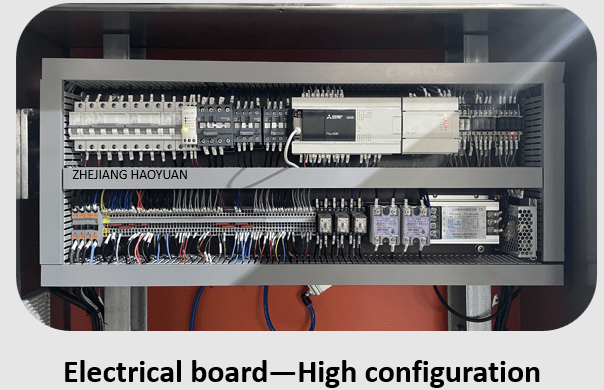

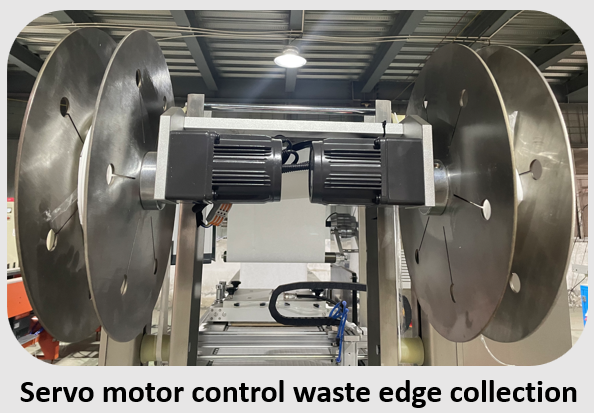

- Mitsubishi (JAPAN) PLC, temperature control and Servo Motor, ensure the accuracy and high stability.

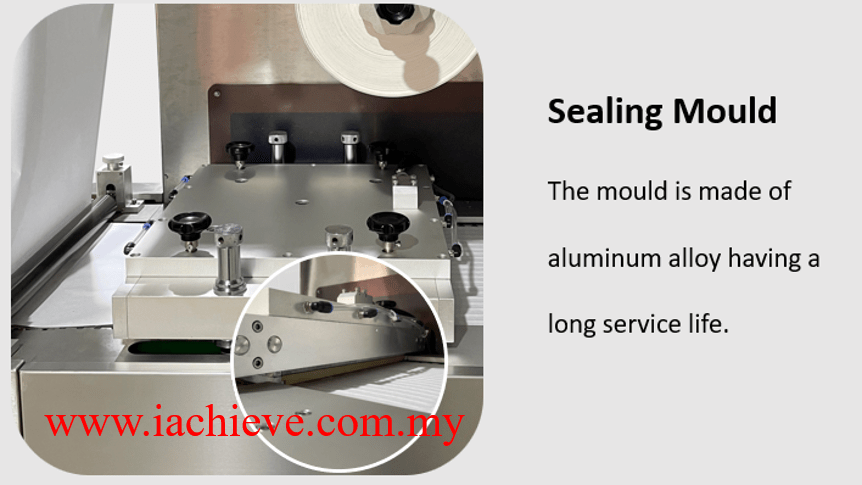

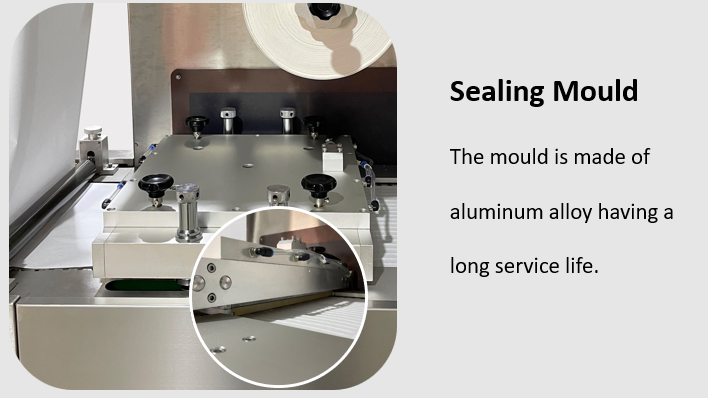

- Intermittent sealing ensure the aesthetic of product and avoid leakage.
- Stainless Steel body, good appearance, easy to clean and durable.
TECHNICAL PARAMETER:
| Model | IA-420/HY |
| Brand | IACHIEVE |
| Production speed | 30-400 bags/min |
| Package product size | (L) 5-400mm, (W)5-300mm, (H) 1-60mm |
| Film width | According to mold |
| Width of packing film | <435mm |
| Outer diameter of film | <400mm |
| Packaging film material | PE, PET composite PET/Paper |
| Air pressure | 6Mpa |
| Machine operating height | 930mm |
| Total power | 14.5kw |
| Voltage | 415v 3 Phase 50/60Hz |
| Dimension (LxWxH) | 6520 x 1060 x 1720mm |
| Weight | 2600kg |

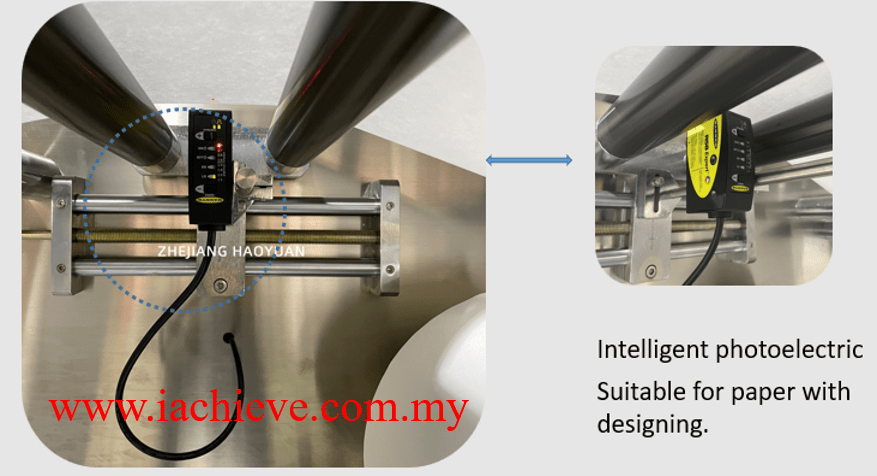

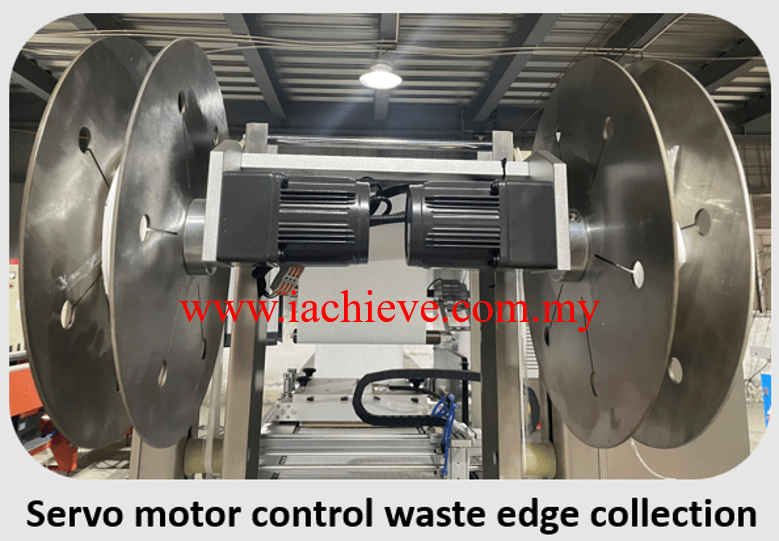

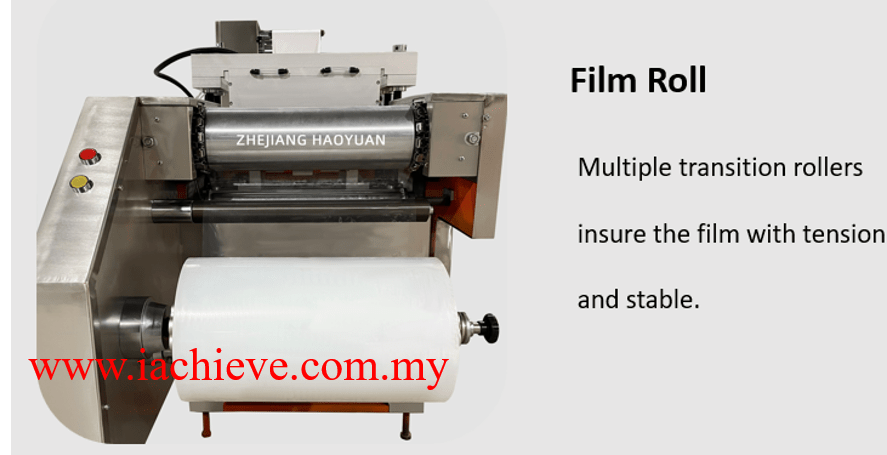

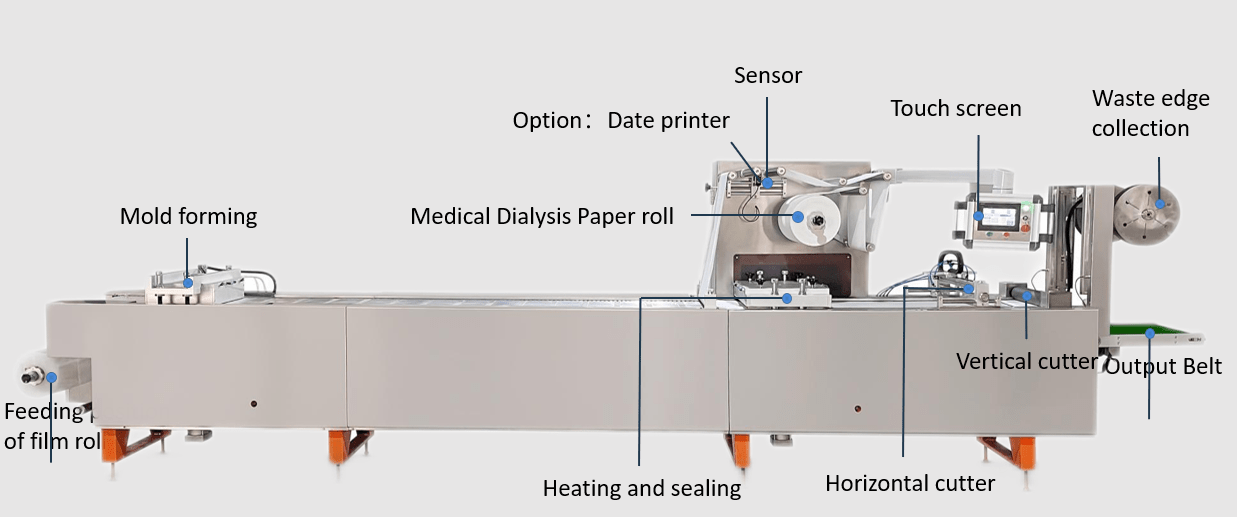

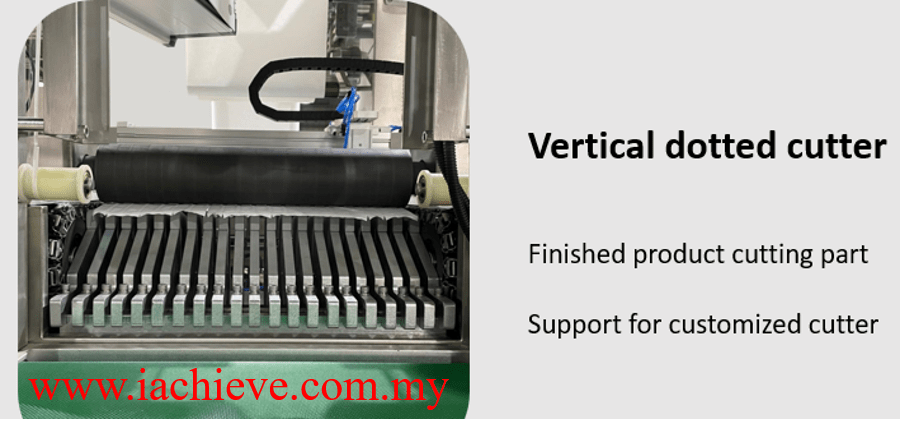

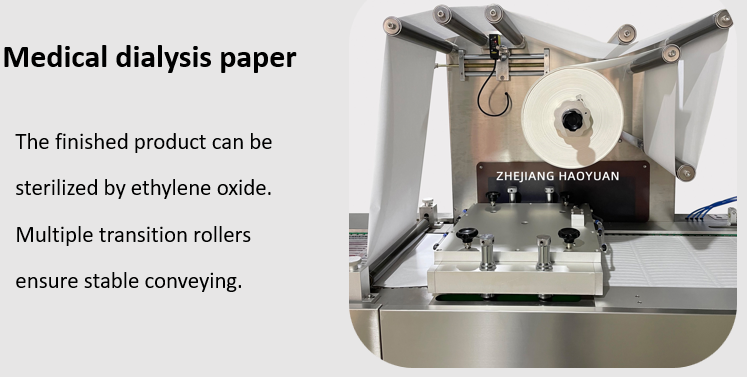

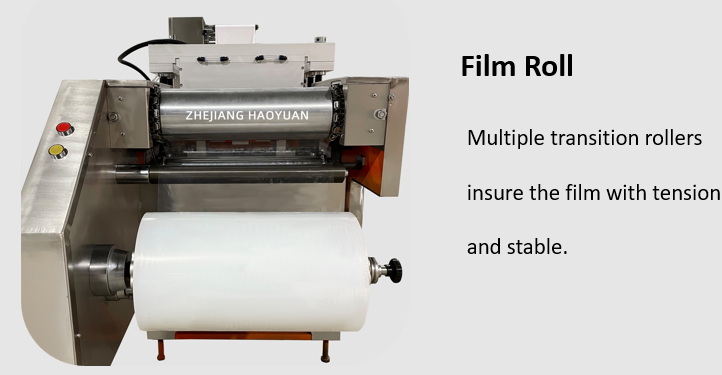

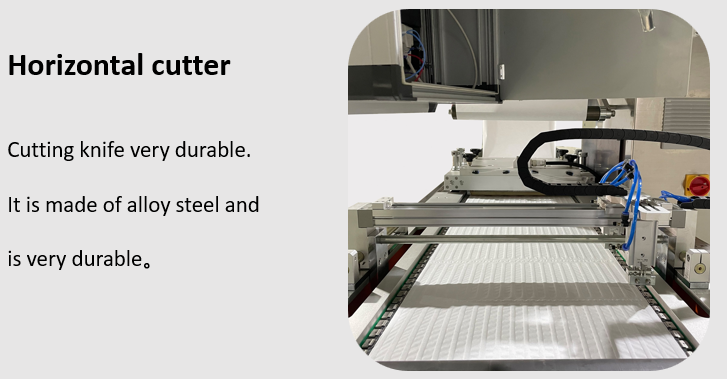

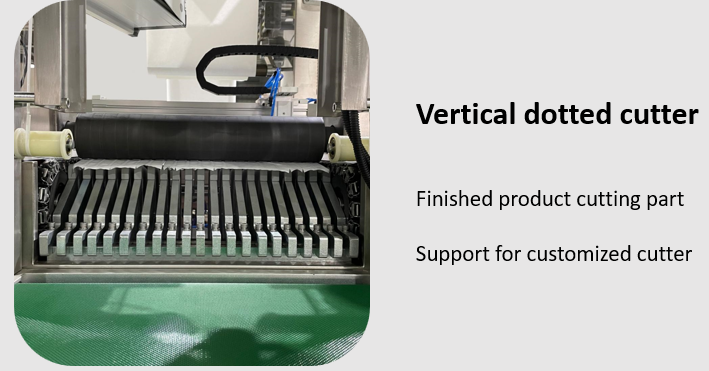

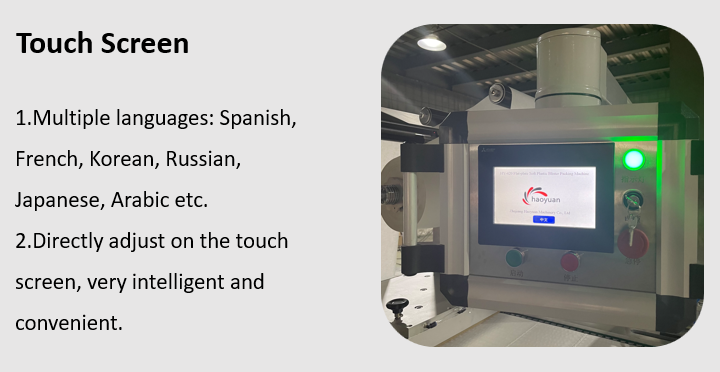

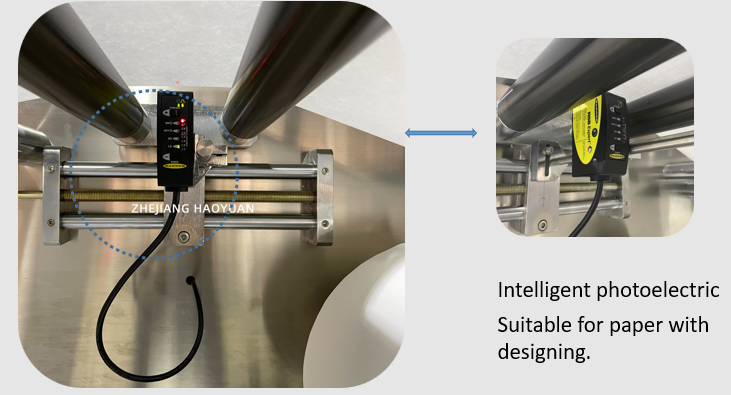

MACHINE DETAILS:

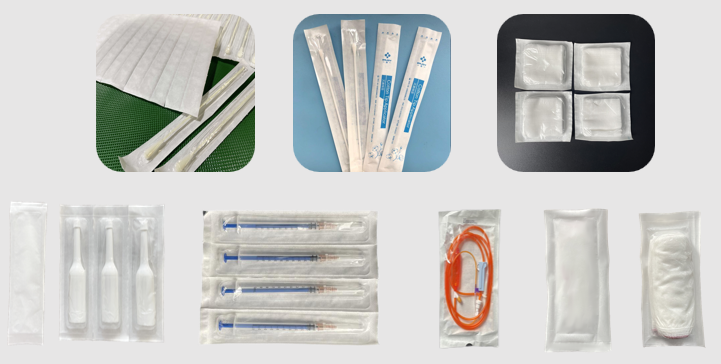

PRODUCT APPLICATION:
