Description

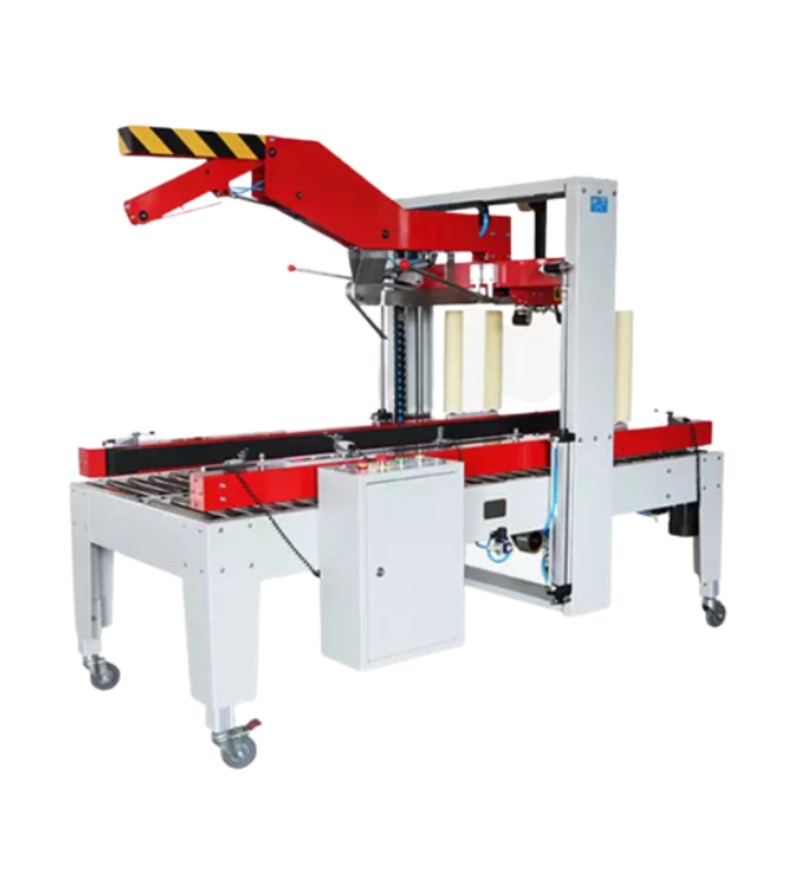

DESCRIPTION :
- The structure is simple and easy to adjust.
- Driven by side belts, upper and bottom tape head can seal the carton at the same time.
- The carton front flap, side flap and back flap can be folded automatically, fast and smoothly.
- By adopting mechanical-electrical integration technology, the machine can adjust the carton width, height and other parameters automatically.
- It is suitable for a variety of automatic production sites.
TECHNICAL PARAMETER:
| Model | IA-5050ZQ/FXJ |
| Voltage (V/Hz) | AC220/50 Single phase |
| Power (W) | 200 |
| Air Pressure (Mpa) | 0.4-0.6 |
| Maximum Carton Size (LxWxH) | 600 x 500 x 500mm |
| Minimum Carton Size (LxWxH) | 250 x 150 x 180mm |
| Sealing Speed (cartons/min) | 10-20 (as reference) |
| Conveyor speed (m/min) | 20 |
| Used Adhesive Tape | BOPP, Water-free adhesive tape, PVC adhesive tape |
| Width adhesive tape (mm) | 48,60,76 (optional) |
| Height of table (mm) | 600-750 |
| External Dimension (LxWxH) | 1830 (with bracket 2640) x 920 x (1480-1640) |
| Net Weight (kg) | 300 |

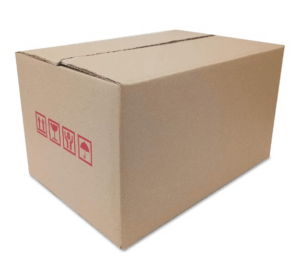

PRODUCT APPLICATION:
