Description
INTRODUCTION:

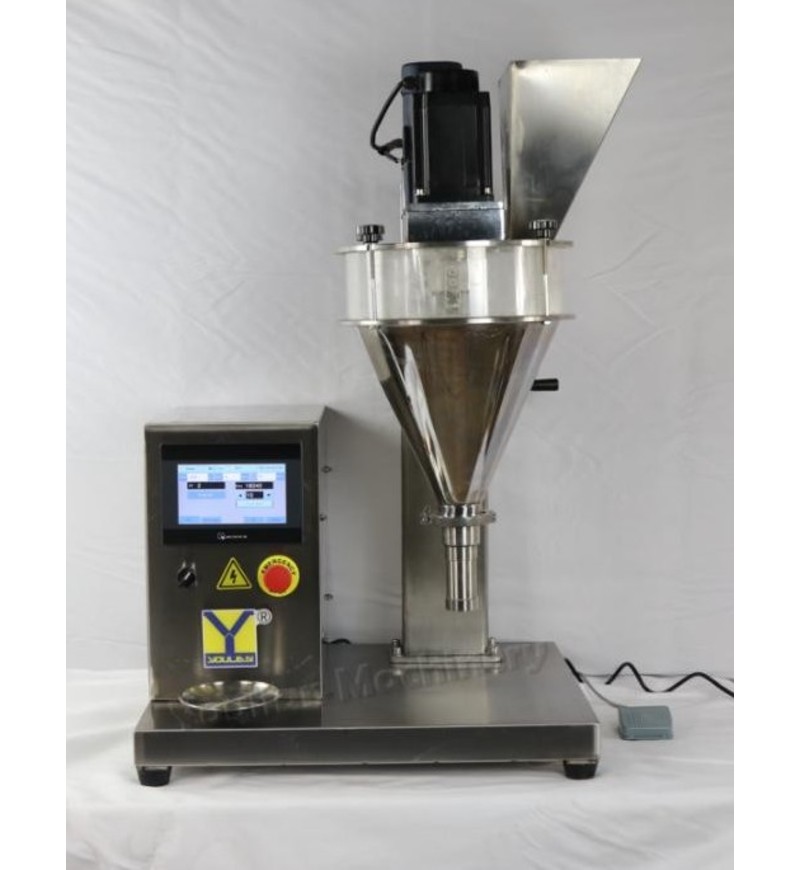

This semi-automatic filling and packaging machine was designed in terms of the National GMP Standard. The hopper is sheer, the dust can’t collect. And the working table height adjustable. Over 10 recipes can be saved for later using. The machine is suitable for packaging product, for instance, milk powder, feed/rice powder, icing sugar coffee, monosodium glutamate, solid beverage, dextrose, solid medicament, etc.
MACHINE DETAILS:
- Filling system is driven by step motor high weighing precision.
- Working conditions shows in English by touch screen display.
- Auger is driven by fast response clutch/brake, and weighing feedback proportion tracked.
- Chinese/English is displayed in touch screen.
- Made of stainless steel totally, the door of hopper can be side opened.
- Machine structure is simple, compact, easy to operation and maintenance.
TECHNICAL PARAMETER:
| Model | IA-5/VFF |
| Brand | IACHIEVE |
| Voltage | 220-240v 50-60Hz |
| Power | 0.85kw |
| Filling Volume Range | 3-300g (Depends on auger) |
| Filling Accuracy | <1% (According to packing weight and product specs) |
| Filling speed | 10-25 bags/min |
| Hopper Volume | 25L |
| Dimension | 775 x 650 x 1150mm |
| Weight | 107kg |
