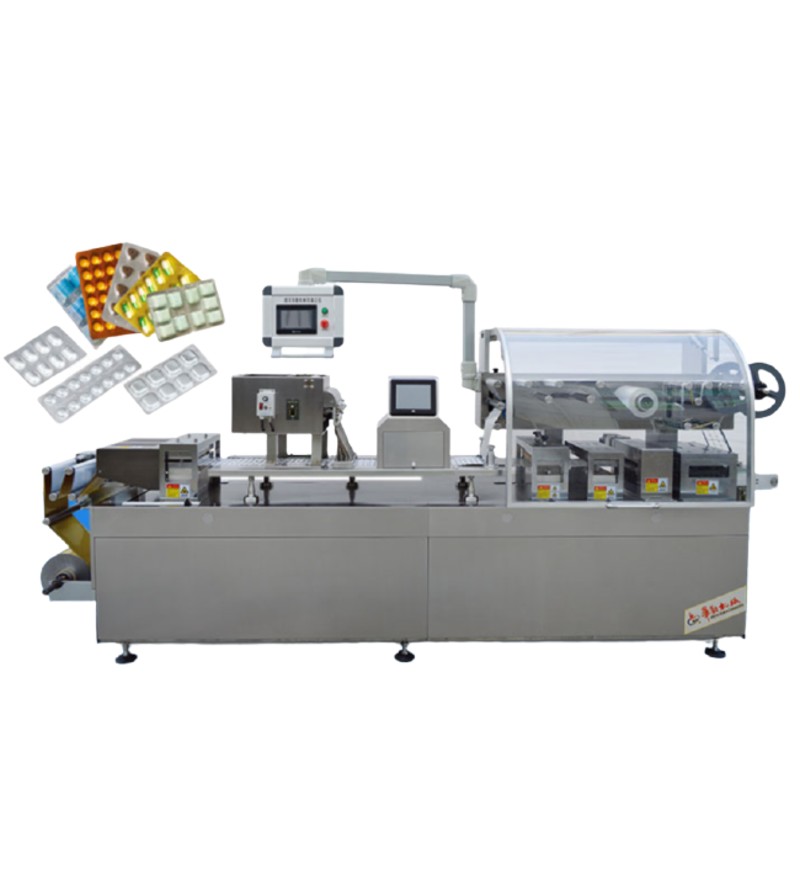

HIGH SPEED BLISTER PACKING MACHINE-IA-260/DPP

Description

SPECIFICATION:
This machine is suitable for pack capsule and tablet which request high packaging standard to protect its quality and extend expiration date. This machine combined with two function: aluminum foil cold forming blister and PVC thermal forming blister. The two functions transform by changing moulds.

1. The whole machine can be divided into packaging to enter the 2.2-meter elevator and split purification workshop
2. The key components are all made of high-quality stainless steel and high-grade aluminum alloy material
3. Novel mold positioning device, it is very convenient to replace the mold with the positioning mold and the whole guide rail, to meet the general requirements of quick mold change
4. For an independent station make indentation and batch number separation, so as to ensure the clarity of the indentation and printing (indentation and batch number can also be in a position).

5.The transmission of the machine is isolated from the work area to prevent pollution and facilitate cleaning.

6. The material feeding is controlled by the precision servo motor; the synchronous precision and the length of the stroke are randomly set by the man-machine interface.

7.The heat-sealing cylinder is placed under the heat-sealing station to reduce machine center, enhance the running stability of the equipment. For the region and the transmission mechanism is completely isolated to prevent pollution, easy to clean up

8. Aluminum / plastic (hot forming) and aluminum / aluminum (cold forming) General Institutions: Aluminum/Aluminum packing just change the mold and corresponding feeder is OK.

TECHNICAL PARAMETER:
