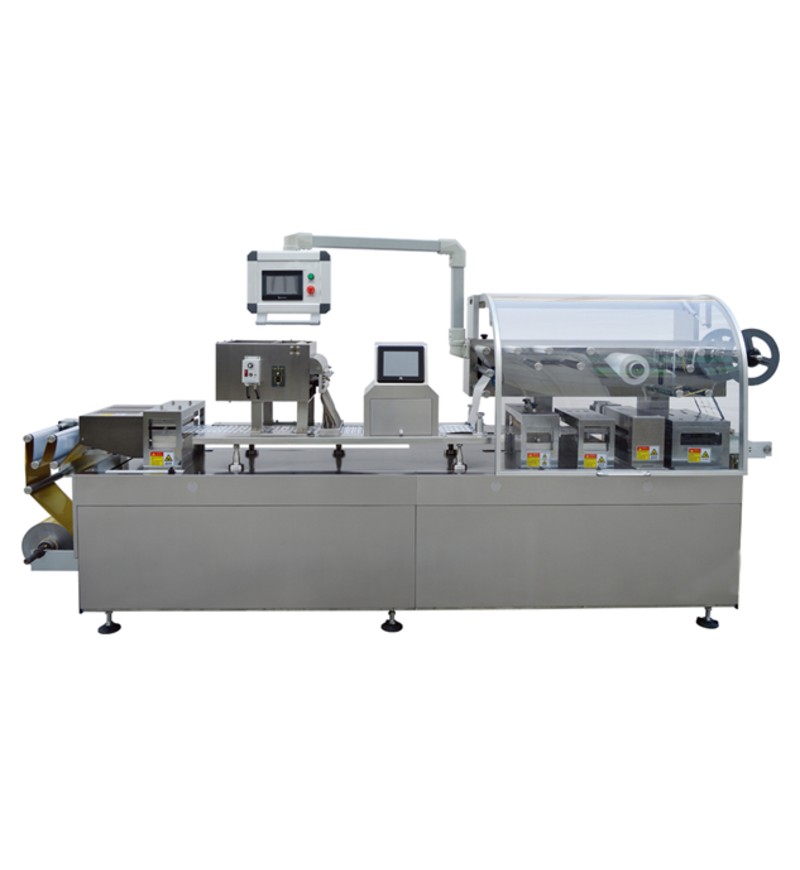

Automatic Alu-Alu & Alu-PVC Blister Packing Machine

Features

1. The whole structure adopts open layout structure, and the modular design has good station visibility and convenient maintenance and adjustment. Novel and safe appearance protection design is for safe operation.
2. With the heating plate temperature control, the main motor overload protection, PVC and PTP package material position detection, feeding storage position detection control, automatic protection shutdown if have fault.

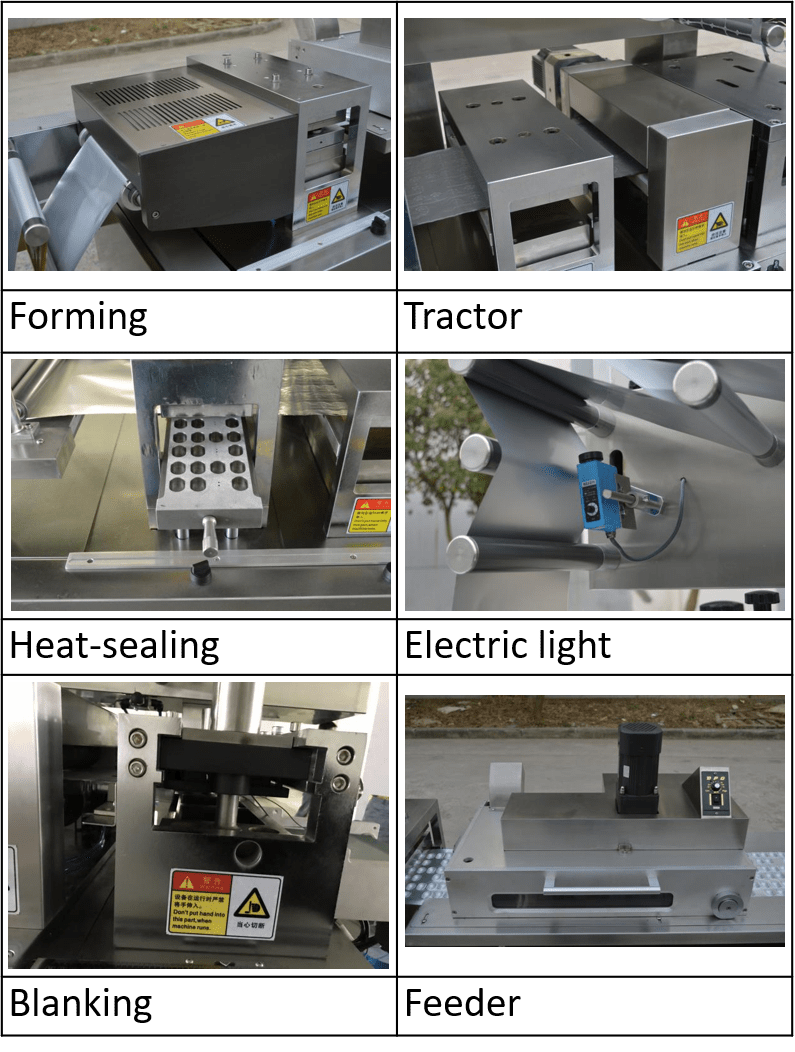

3. The heating mechanism adopts the contact type version of the heating, the delay of the turning on after the heating plate is put down, will limit the material waste in store within and reduce the heating power and heating temperature, save energy and enhance the stability of the plastic film, not easy to deformation.
4. Increase PVC rapid replacement material feeding platform, rapid material platform, whole guide, increase the overall practicality of equipment.
5. Molds concave groove positioning, rectangular design, positive pressure forming, micro edge blanking, replacement more convenient and quicker. All parts of contact with drugs are made of high-quality stainless steel and high-quality aluminum alloy non-toxic materials, high grade surface treatment process, texture emerging.
6. Cushion seal : when the machine stops, the cylinder will automatically rise the netted plate. The deformation of the bubble caused by heat radiation during the stay is eliminated, which is convenient for the cleaning of the netted plate and the buffering effect of super pressure is also beneficial to prolong the service life of the machine.
7. The upper and lower netted plate is heat sealed work in with each other : that is both the positive and negative sides are dot like recalculate (also can be linear sealed), because the stress is equal, the plate is more smooth, and the sealing performance is improved.
8. Adding a separate batch number embossing position, abandon the disadvantages of the difficult to handle or manage when change molds in the sealing position, and the design of batch heating mechanism, ensure the clarity of printing.
9. The printing register control system can be used to register to the pictures and the words on the printed aluminum foil.
10. Frame type filling is efficient and reliable. It can be adapted to various type setting methods and filling of irregular shapes (according to the packing products design mating special feeder)
11. Using high end PLC control, touch screen operation, digital display in Chinese and English, frequency conversion speed regulation, servo traction, traction length in the traction size range can do arbitrary adjustment on the touch screen.
12. The finished products are orderly output, the defective products are collected easily, and equipped with waste collection device, and the waste is collected easily.
13. The whole machine is designed by split connection, which is easy to enter the elevator and workshop.
