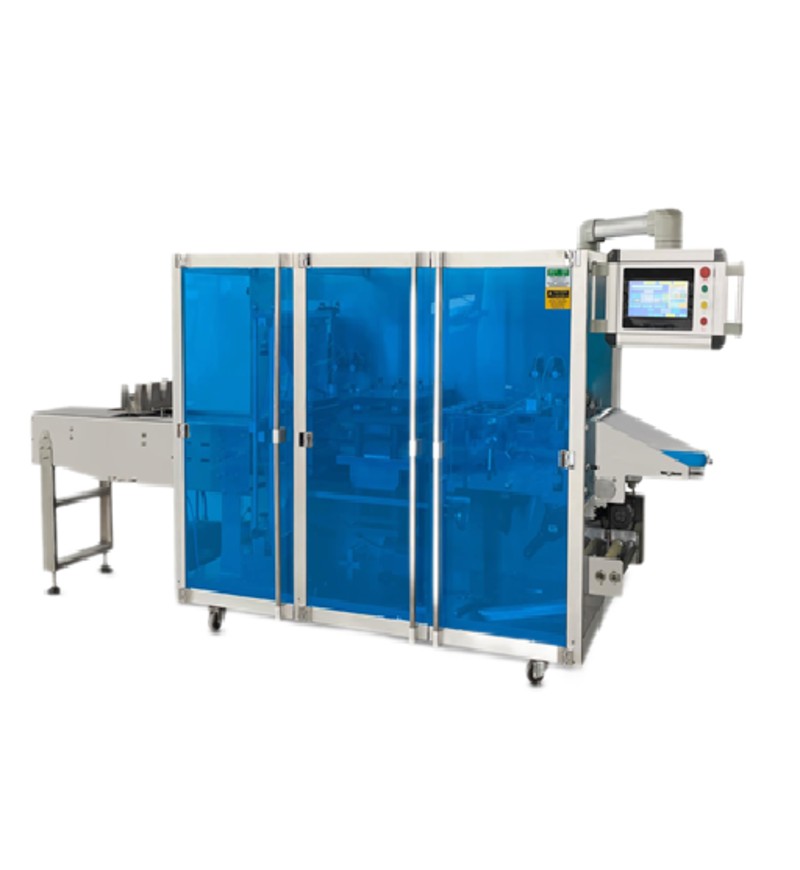

This is our technical staff combined with packaging equipment, at the request of the majority of customers at home and abroad to carry on the independent research and development of a new generation of packaging machine. The whole machine adopts light, electricity, gas integration design, advanced technology, is currently the most advanced membrane film packaging machine.
Technical Parameters:
| Model | IA-800WS/HY |
| Voltage | 415V, 3 Phase |
| Power | 8.5 Kw |
| Speed | 80 – 200 bags/min |
| Product size | L 100 – 300mm , W 80 – 150mm |
| Film width | 400 – 800mm |
| Film roll inner diameter | 70 – 75mm |
| Film material | PE/OPP PE/PET |
| Weight | 2180 Kg |
| Dimension | 4500 * 1000 *1800 mm |

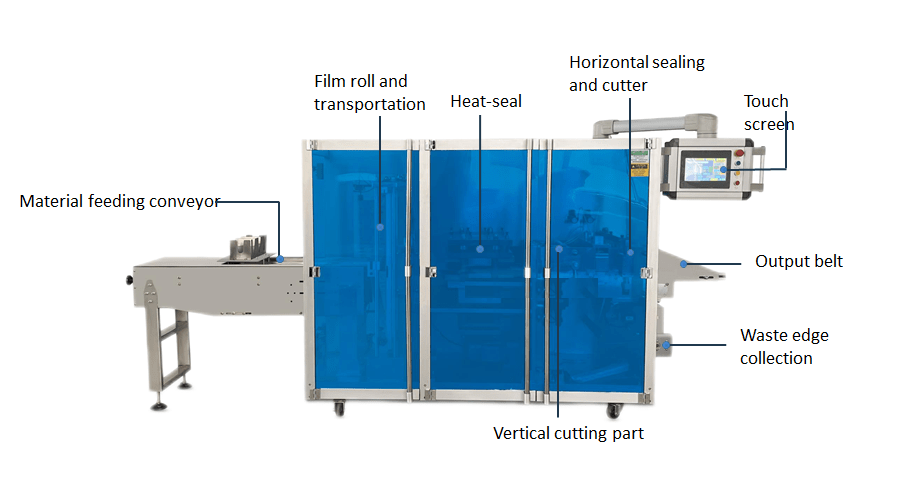

Machine details

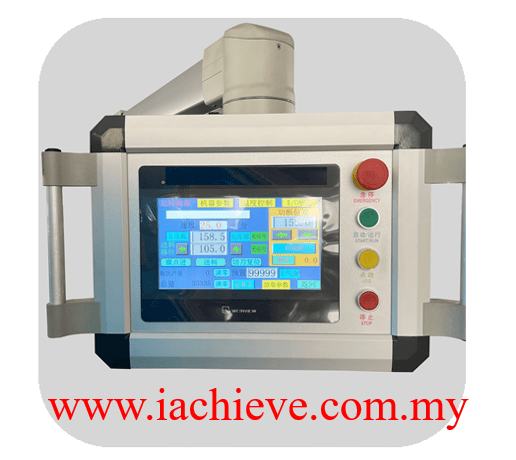

Touch Screen
- Multiple languages: Spanish, French, Korean, Russian, Japanese, Arabic etc.
- Directly adjust on the touch screen, very intelligent and convenient.

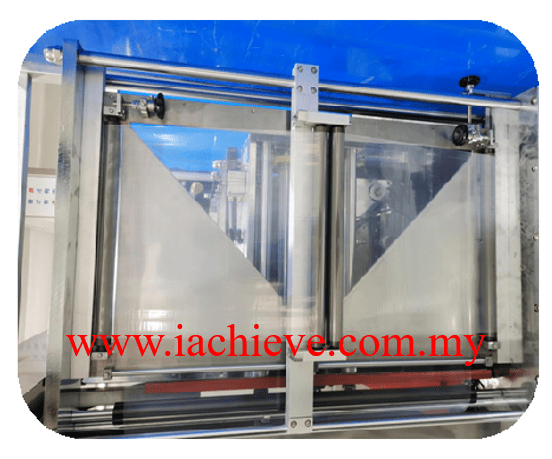

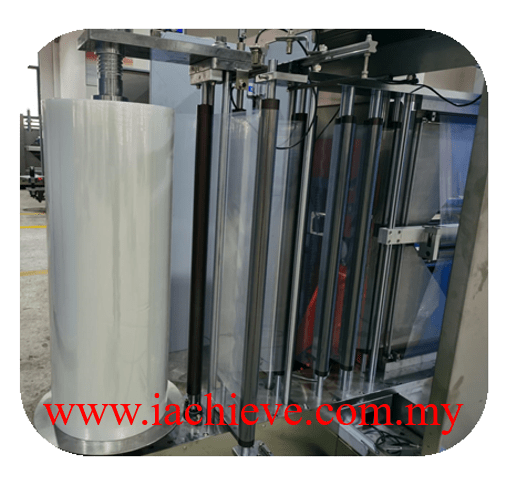

Film Roll
- Multiple transition rollers insure the film with tension and stable.
- Option: Date Coding
- Intelligent sensor
Film Scuttiling System
- Intelligent sensor for folded cutting evenly

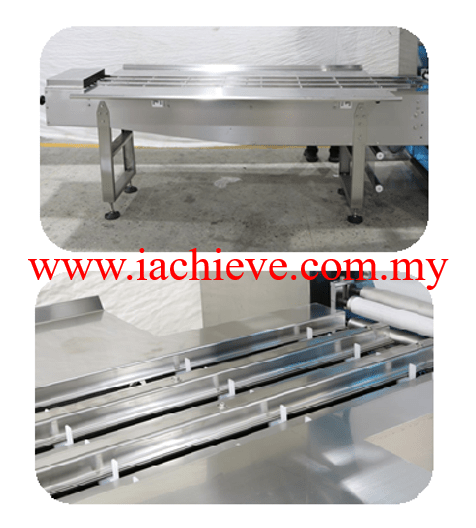

Feeding Conveyor
1.Feeding material by manual or with special design feeder.
2.Customized two or more lines according to sample.

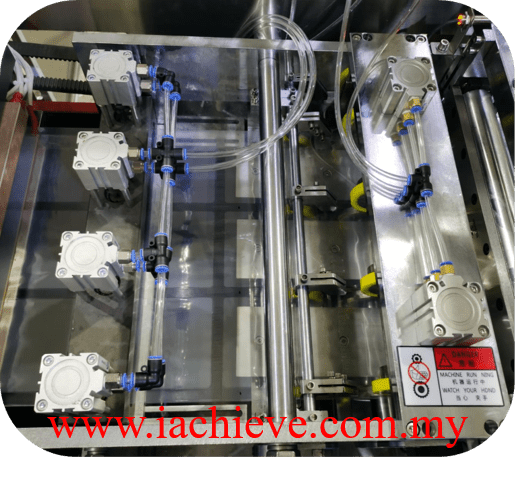

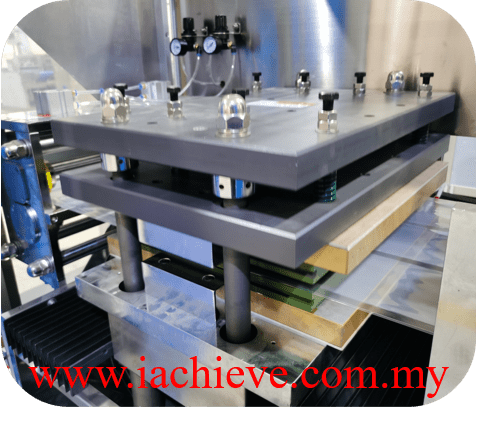

Heating Mould
1.Reliably sealing
2.Product regularity and unity
3.Beautiful sealing effect
Longtitudinal cutting
1.Roller traction
2.Easy to tear hole drilling device

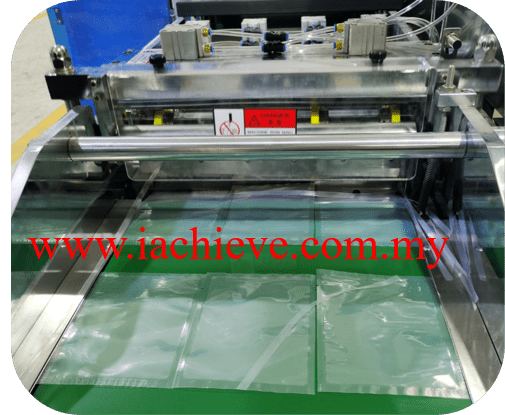

Horizontal Cutter
1.Durable cutter, orderly export
2.Speed 40 beats per minute

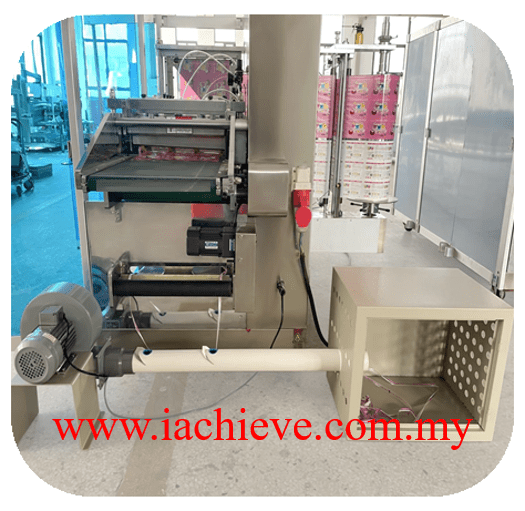

Waste Edge Collection
- Independent device
- Clean and tidy

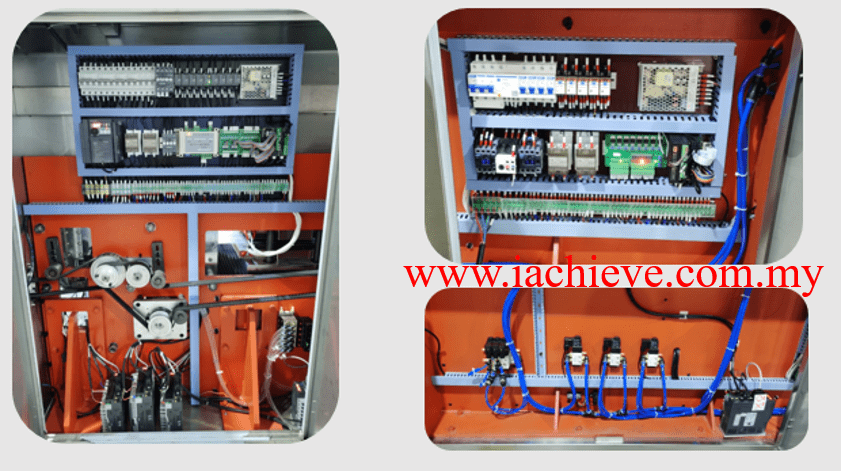

Servo Motor Control
