Description
DESCRIPTION:

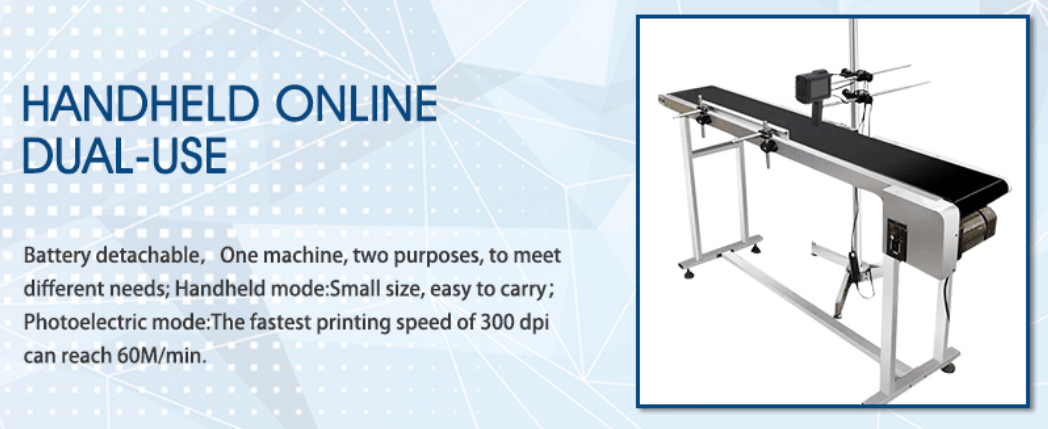

- It has the functions of handheld mode printing and pipeline mode printing; (Note: pipeline mode can only use P series ink cartridges)
2. It can be used in water-based and fast-drying cartridges. The machine can recognize cartridges automatically and adjust the optimum printing parameters.
3. Intelligent Pinyin and handwritten associative input method; (for Chinese area only)
4. It has the function of importing and exporting the database, and can print the assignment code (variable two-dimensional code, bar code, text).
Printing material:
Carton, wood, plasterboard, fiberboard, plastic, ceramic, metal, aluminum foil and other materials;
Color cartridge: white, black, blue, red, yellow, green, stealth

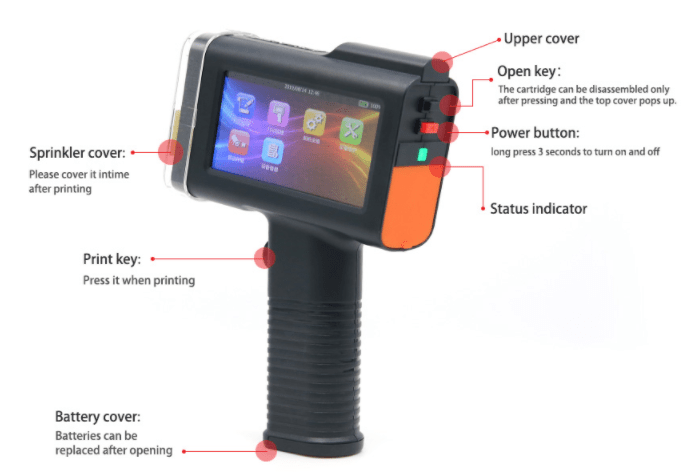

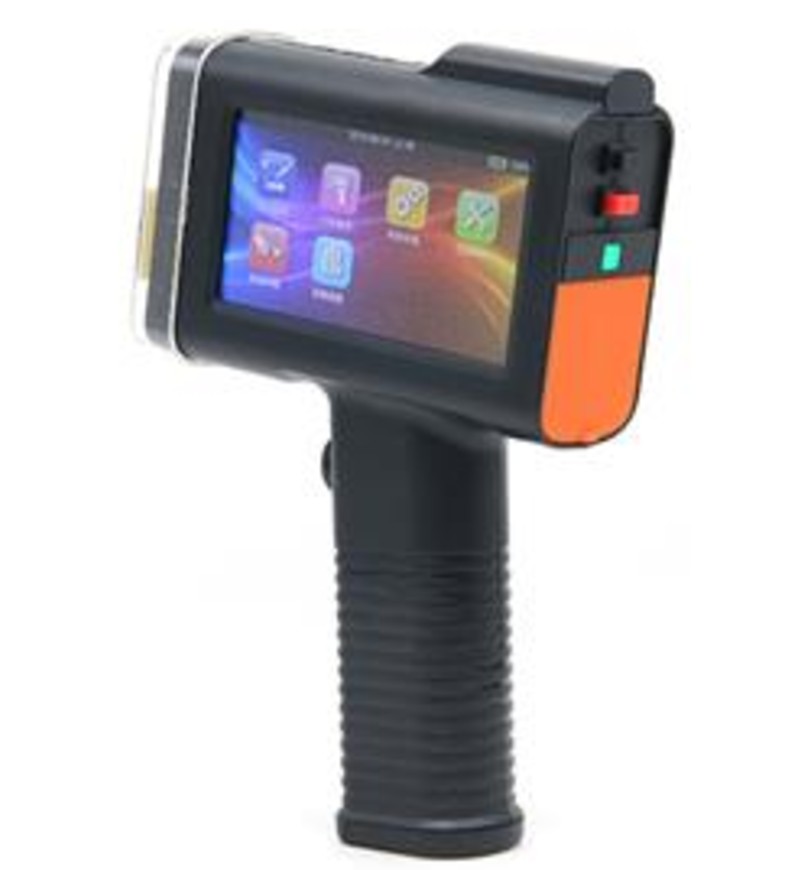

New Generation Hand-held Printer
Moderate weight (machine New Generation Hand-held Printer light Will work long hours and will not be tired;
The whole machine material is safe and environmentally friendly, and has passed ROHS certification;
Fully enclosed design of the printer, the interface is not leaking, it can be dustproof and splash proof, and has high safety.
TECHNICAL PARAMETER:
| Designation | Specification description |
| Display screen | 4.3-inch colour high resolution LCD touch panel |
| Display status | LED green light means power on, blue means on printing, red means power shortage |
| Operation interface | User-friendly UI Design, easy to operate |
| Printing content | Characters, numbers, symbols, QR Code, barcodes, pictures, time, dates, counters, etc |
| Printing fonts | Vector font, dot matrix font |
| Printing resolution | 300dpi/600dpi |
| Printing rows | 1-5 rows (adjustable) |
| Font height | 2.5mm-12.7mm (adjustable) |
| Printing distance between | 2-5mm (distance between printer head and object) |
| Printing speed | 60m/min (max speed) |
| Printing direction | 360° printing |
| Cartridge capacity | 42ml |
| External interface | USD, Photoelectric interface, power interface |
| Battery capacity | 2600mAh |
| System consumption | <SW in average |
| Ambient temperature | 0-40°C |
| Ambient humidity | 0%-80% |
| Power supply | DC9V-2A |
| Weight | 450g |
| Storages capacity | 50MB (can store 30000 printing information) |
| Continuous printing | >10h |
| Size | 138 x 54 x 217mm |
