Description

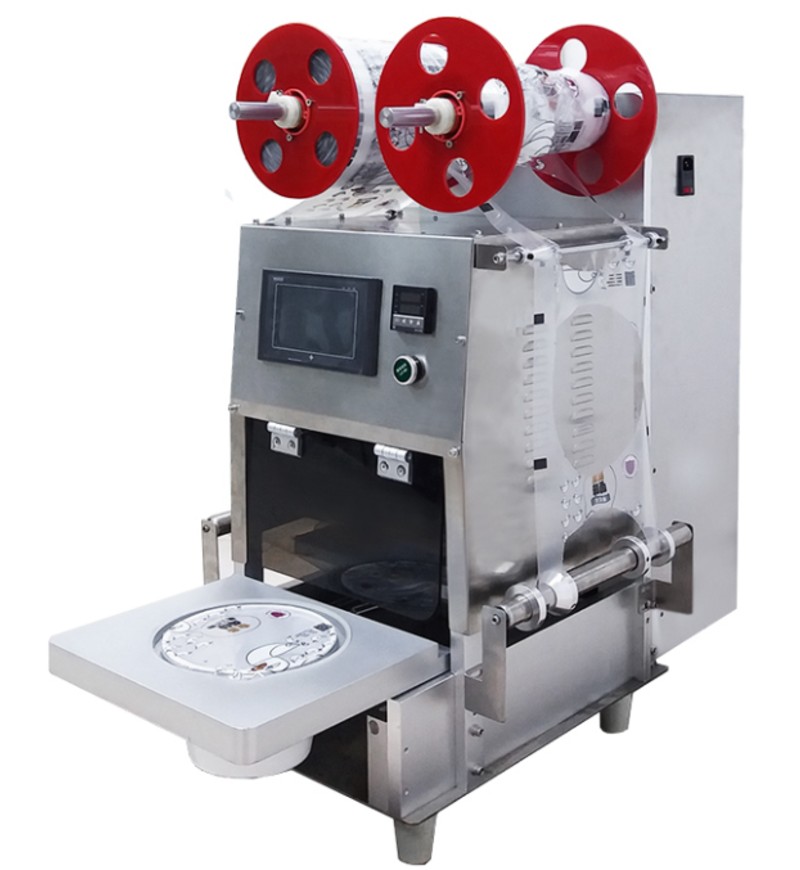

MACHINE OVERVIEW:
This machine is a new desktop automatic sealing machine developed according to market demand, which improves production efficiency and saves effort. The sealing film is made of plastic composite coils, automatic punching, automatic sealing and automatic waste discharge, which solves some cups without lids. , The sealing problem of the box, no matter what shape, it can be sealed, which saves space, and can seal a box at a time, which is very popular among users.
SPECIFICATION:
- Manually put the box, automatically send the box, air pressure sealing, automatic waste discharge, automatic out of the box.
- Single-chip microcomputer program control, stable and reliable.
- The man-machine interface is controlled by a touch screen, which is easy to operate and can monitor the running status of the machine at any time.
- Classic digital display temperature control meter, the temperature difference is plus or minus 5 degrees, and the sealing effect is good.
- Precise guide rail, smooth walking and precise positioning.
- Taiwan photoelectric eye tracking.
TECHNICAL PARAMETER:
| Model | IA-95/FBJ |
| Production Speed | 400-500 boxes/hour |
| Sealing Diameter | 30-250mm can be customized |
| Sealing Material | Plastic Composite film, aluminum foil composite film, PP, PE, PET, PS are all available |
| The Size of the Sealing Film | 2-3mm larger than the cup mouth, with tight sealing and beautiful apperance |
| Temperature Range | 0-300 degrees |
| Power | 800-1200W |
| Voltage | 220V |
| Machine Size | 550 x 700 x 850 |
| Machine Apperance | Stainless steel |
| Net Weight | 90kg |
PRODUCT APPLICATION:
