Description
Description:

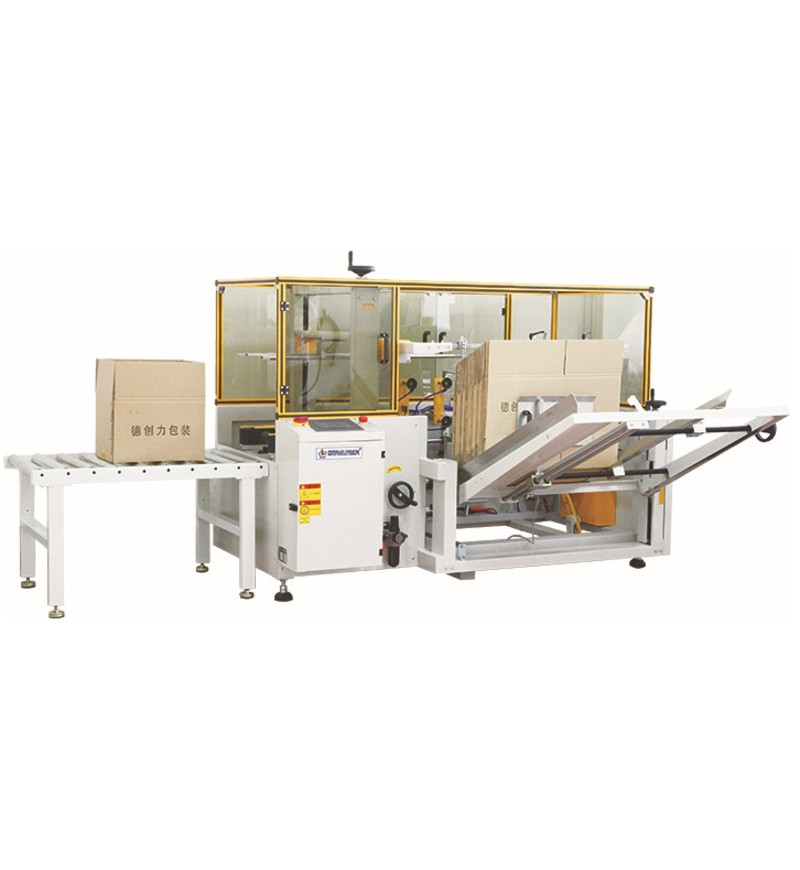

CE Automatic case erectors is large quantities of automatic carton box, automatic folding under cover, automatic sealing bottom tape line equipment all adopt PLC + screen control, easy to operate, is essential for automated mass production equipment.
Machine Characteristics :
1.Easy operation,machine can be used individually and combined with the packaging line.
2.Vertical storage,cartons can be added at any time without stopping the machine.
3.Suitable for forming and sealing cartons of the same size.
4.Manually adjust to change the carton sizes(finishing in 2-3minutes).
5.Advanced photo-electricity induction control system.
6.Rationally designed, the forming, folding and sealing process are accomplished simultaneously.
7.Cutter Safety system to prevent hands form stabbed by the cutter.
8.Heavy duty built, both steel and stainless steel types.
9.Equipped with PLC(Siemens) system, saving labor and easy to operate.
10.Adopted international advanced technology, with imported parts and electrical components, this machine has a stable performance and long life-using.
11.Stable operation, long operating life, high efficiency
12.Automatic alarm when lacking the tape or cartons
- Technical Parameter of Case Erectors :
| Model | IA-4012 KXJ Case erectors |
| Carton size | L250-450mm*W150-400mm*H100-400mm |
| Open catron capcity | 600-720cartons/Hour(Maximum) |
| Storage quantity | 100cartons ( 1000mm ) |
| PLC | Siemens |
| Electric parts | Schneider |
| Operation panel | Siemens touch screen |
| Voltage | 220V-415V 3PH 600W 50/60HZ |
| Tape width | 48/60/75mm(alternative) |
| Frame material | Carbon steel |
| Output conveyor | 2m (No power) |
| Air cylinder | AIRTAC |
| Automatic type | Fully automatic |
| Pneumatic | 5kg/cm2 |
| Machine dimension | 2780*1250*1840mm(L*W*H) |
| Weight | 450kg |
