Description
Main Application

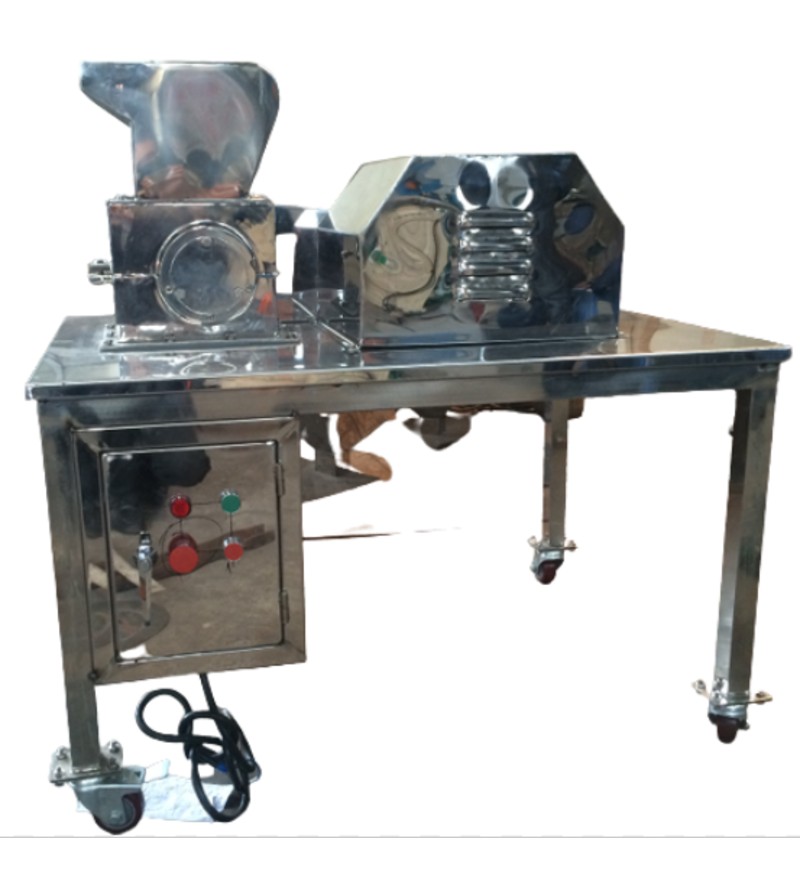

The machine is applied for industries such as pharmaceutics, chemical, metallurgy and foodstuff. It is used as specialized equipment for coarse crushing of material in preparatory process, and can crush hard and tough material like plastics and steel wire. Especially it is not limited by viscosity, hardness, softness and fiber shape of material and has good effect to all materials.
Working Method
The machine has horizontal crushing structure and the whole machine is made of stainless steel. Any raw material, being feed into the grind chamber through the Upper feeder, stroked by the revolving and fixed knives, cut and grinded and then automatically runs to the exit by the centrifugal force of revolving object. The machine is designed according to GMP standard, with the characteristics of compact structure, easy washing, and low noise. So it is the most ideal new product in current crusher market.
Technical Parameters:
| Model | IA-80/CSJ | IA-120/CSJ | IA-200/CSJ | IA-400/CSJ | IA-600/CSJ |
| Capacity (Kg/h) | 10 – 50 | 50 – 80 | 100 – 200 | 200 – 400 | 300 – 500 |
| Size of input granules (mm) | ≤50 | ≤100 | ≤100 | ≤100 | ≤200 |
| Fineness of products (mm) | 0.5 – 20 | 0.5 – 20 | 0.5 – 20 | 0.5 – 20 | 0.5 – 20 |
| Speed of principal axis (r/min) | 400 | 400 | 400 | 600 | 600 |
| Power (kw) | 1.5 | 4 | 5.5 | 7.5 | 30 |
| Weight (kg) | 120 | 250 | 420 | 580 | 760 |
| Dimension (LxWxH) | 510×450×950 | 700×650×1200
|
850×720×1350 | 1200×1000× 1450 | 1300×1100× 1650 |
Before & After:
