Description
DESCRIPTION:

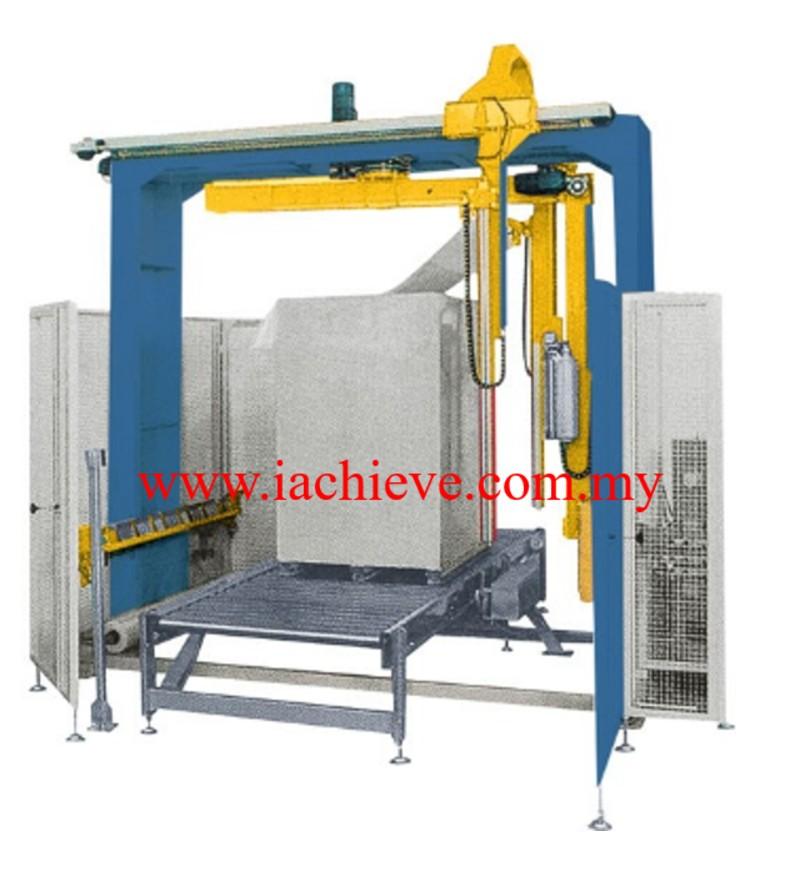

It is an Automatic machine with rotating arm for wrapping palletized loads with stretch-film. Any load that can be conveyed easily and economically wrapped.
- Use cantilever wrapping the products tightly without moving the pallet for making sure the product safety.
- Suitable for heavy or unstable loads.
- The pallet will be delivered to its position, and automatically proceed pressing, stretching, wrapping, cutting, clamping the film and send out the pallet. These stretches wrap equipment does not require an operator.
- Wrapping speed is adjustable.
- Install the safe palisade for the safety concerned.
- The photoelectric cell can read the pallet height automatically
- Commonly fit for automatic production line.
- Automatic Stretch Wrapping Machine can match with the top sheet dispenser that is applied to the top of the load.
- Ideal for higher pallets loads or light weight pallet loads, large and extra width pallet to wrap, which are not suitable for turntable wrapping.
- 360 degree swinging rotary arm doing the wrapping with pallet load staying in place.
TECHNICAL PARAMETER:
| Model | IA-1200A/CHW |
| Power supply | 3φ 415V |
| Power consumption | 5000w |
| Wrapping height | 2000mm |
| Pallet size | L600~1200 x W800~1000 x H200~2300mm |
| Cantilever speed | 60-70 pallet/hour |
| Stretch film material | PE |
| Film rolls core internal diameter | 76mm |
| Film rolls external dimeter | 350mm |
| Air compressor | 5kg/ccm |
