Description
DESCRIPTION:
- This series is designed to seal carton by applying adhesive tape
- Cost effective, High speed
- Easy size changeovers
- For integration into production line or as standalone machine
- Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
- The machine folds front/side/rear flaps at high speed
- Two-side drive belts
- Designed with upper & bottom tape heads or just upper tape head that are ideal for sealing uniform cartons continuously
- easy loading and unloading due to the brackets installed on the two ends of the machine
TECHNICAL PARAMETER:
| Model | IA-5050Z/FXJ |
| Voltage (V/Hz) | AC220/50 |
| Power (W) | 260 |
| Gas Pressure (Mpa) | 0.4~0.6 |
| Speed | 22m/min (25 cartons/min) |
| Maximum Carton Size (WxHxL) | 600 x 500 x 500mm |
| Minimum Carton Size (WxHxL) | 180 x 160 x 180mm |
| Adhesive Tape Material | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table | 600-750mm |
| Width of Adhesive Tape | 48, 60, 76mm (optional) |
| External Dimension (LxWxH) | 1830 x 920 x (1450-1600) |
| Net Weight (kg) | 250kg |
| Max Conveyor Load | 30kg |

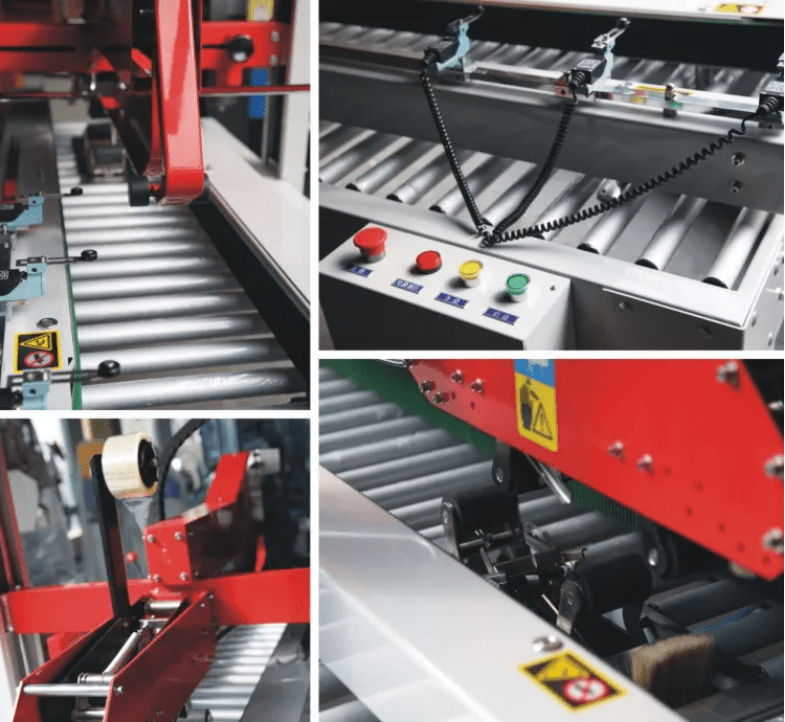

MACHINE VISUAL DETAILS:
