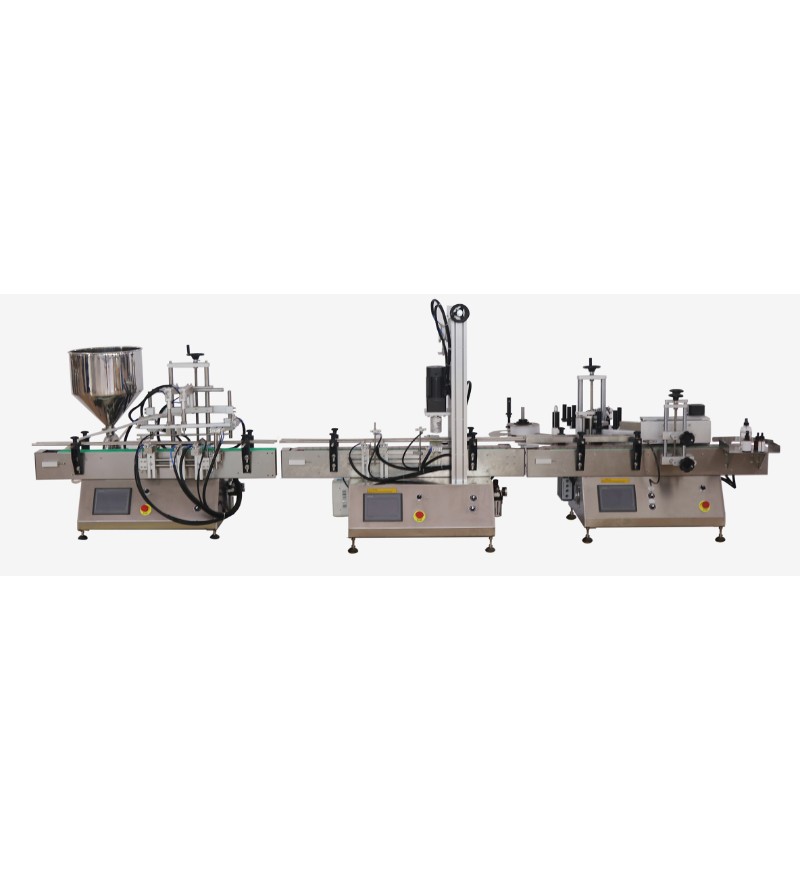

AUTOMATIC FILLING SYSTEM (TABLE TOP)

AUTOMATIC FILLING SYSTEM (TABLE TOP)

SKU IA-100T/GCGA-2 Category Paste Type Filling Machine Tag FILLING MACHINE

Special For Cosmetic Line (Toner & Cream)

This machine is applied for viscosity and paste filling like cosmetic products. It is able to integrate to capping machine and labelling machine in bottling line, fully complete and intelligence control advantage.

Share Now:

Characteristics

Auto shut on/off filling nozzle, prevent drop while filling.
Automatic tray collector under filling nozzle, to avoid dropping on bottle.
Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts.
Whole machine designed and manufactured accordance to GMP regulation.

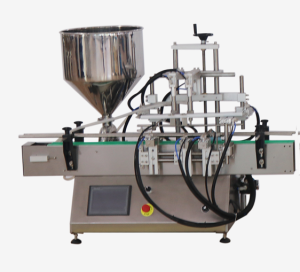

Filling Machine Technical Parameter

Model	IA-100T/GCGA-2
Voltage	220V , Single phase
Filling head	2 head
Filling volume	10 – 100 ml
Diameter of bottle	20 – 110 mm
Capping speed	8 – 12 bottles/min
Length of conveyor	1500 mm
Air pressure	0.5 – 0.7 mpa
Small cylinder	SMC
PLC Control	Delta
Material	Stainless steel 304
Machine weight	120 kg
Machine dimension (LWH)	1000 * 650 * 750 mm

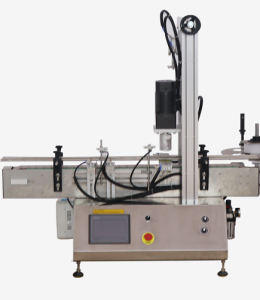

Capping Machine Technical Parameters

Model	IA-550A/XGJ
Voltage	220V , Single phase
Capping head	1 head
Diameter of cap	20 – 55 mm
Diameter of bottle	20 – 110 mm
Capping speed	15 – 20 bottles/min
Length of conveyor	1500 mm
Air pressure	0.5 – 0.6 mpa
Small cylinder	SMC
PLC Control	Delta
Material	Stainless steel 304
Machine weight	160 kg
Machine dimension (LWH)	1000 * 650 * 750 mm

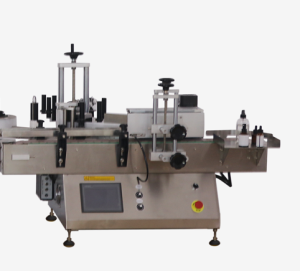

Labelling Machine Technical Parameters

Model	IA-100A/TBJ
Voltage	220V , Single phase
Power	250W
Diameter of bottle	20 – 100 mm
Length of label	20 – 150 mm
Height of label	20 – 100 mm
Labelling speed	10 – 20 bottles/min
Labelling accuracy	±1mm
Machine weight	126 kg
Machine dimension (LWH)	1270 * 830 * 740 mm

Product Application
