Description
APPLICATION:

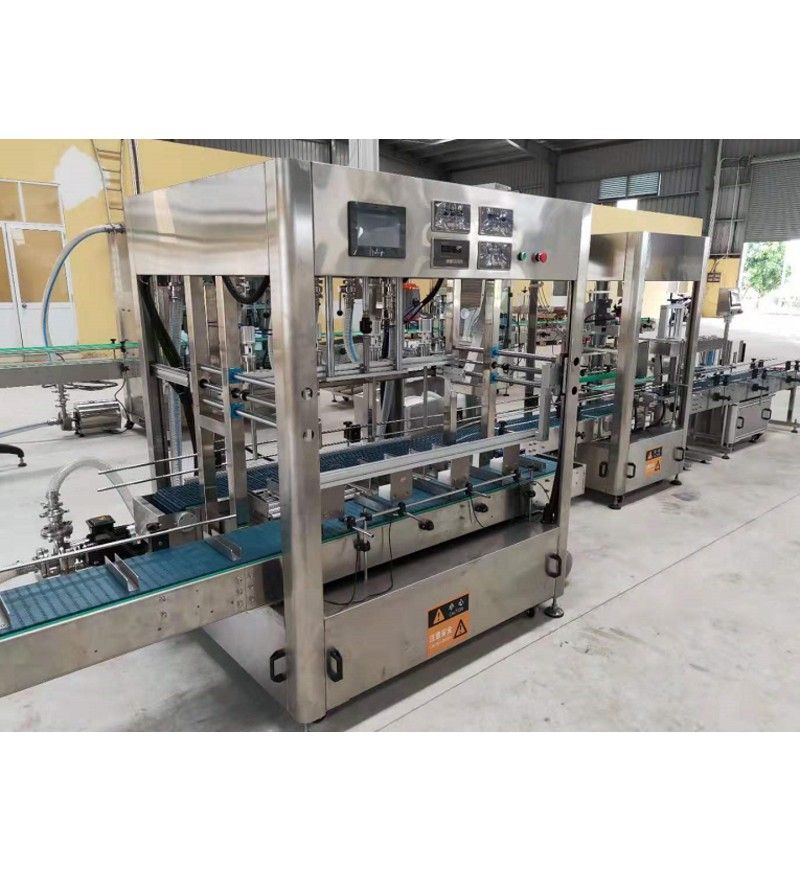

This fully automatic filling machine is made of stainless steel and conforms to hygiene standards, and this filling machine adopts computer automatic control system, full touch screen control, the production process is safe, hygienic, easy to operate, and convenient for manual and automatic switching.
THE MAIN PURPOSE:
FEATURES:
- Using an electronic weighing device, the filling head realizes filling after the bottle mouth is accurately positioned.
- The filling volume is easy to adjust and the operation is simple, and the filling of bottles of different specifications can be replaced in a short time.
- The whole machine is designed according to GMP standard requirements.
TECHNICAL PARAMETER:
| Model | IA-20L/CZJ-6 |
| Brand | IACHIEVE |
| Filling range | 10L – 25L |
| Filling accuracy | <±1-2% |
| Filling Head | 6 Head |
| Compressed Air Pressure | <0.6-0.7Mpa |
| Air consumption | 15m3/h |
| Voltage | 220v 50Hz |
| Power consumption | <6kw |
| Net weight | <800kg |
| Dimension (LxWxH) | 4500 x 1100 x 1900mm |
| Capacity (20L) | 500-580/hour |
