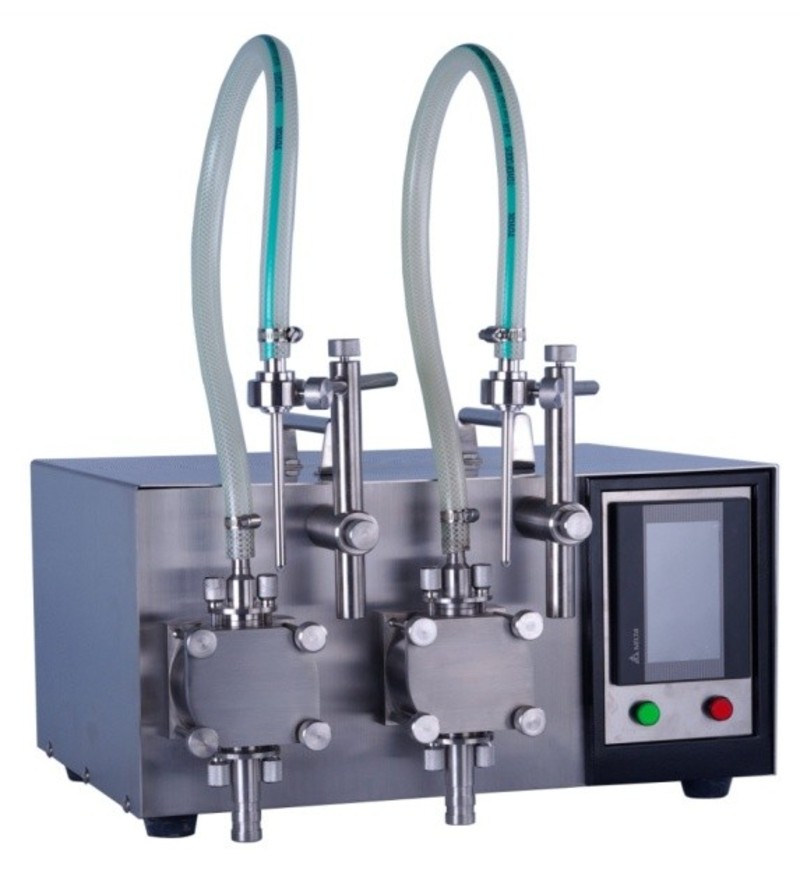

TABLETOP DIGITAL FILLING MACHINES （FOR DOUBLE PUMP）

TABLETOP DIGITAL FILLING MACHINES （FOR DOUBLE PUMP）

Category Tag
  1. The Digi-Fill uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.
  2. The volume，speed，the time between of filling can be designed .
  3. Each filling can be fast first and slow later, bubble can be eliminated.
  4. Human interface is using PLC control and Touch Screen Operation.
  5. 20 sizes data can be stored.
  6. Pump unit easily dismantled for cleaning.
  7. Can be extend to use in conveyor on line.
GET QUOTE NOW

Share Now:

Facebook Twitter Youtube

Standard Accessories

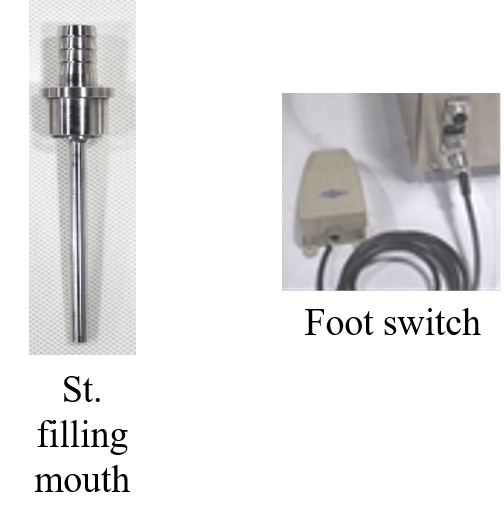

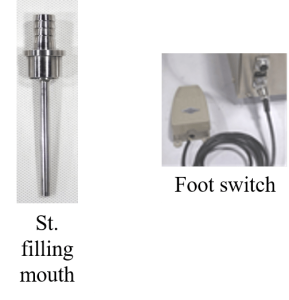

Standard filling mouth 2 Pieces
Foot switch 1 Piece
O ring 6 Pieces
Ring 4 Pieces
Non-ruturn valve ring 2 Pieces
Fuse 2 Pieces
Frequency-change Operation manual 1 Copy

Technical Parameter

Volume 10ml~11000ml
Accuracy 0.5-1%
Filling Speed 100ml 48P/min  300ml 32P/min  1000ml 20P/min
Supply Power 1P 220V 50-60Hz  800W
Size 460x480x310mm
Net Weight 36Kg
