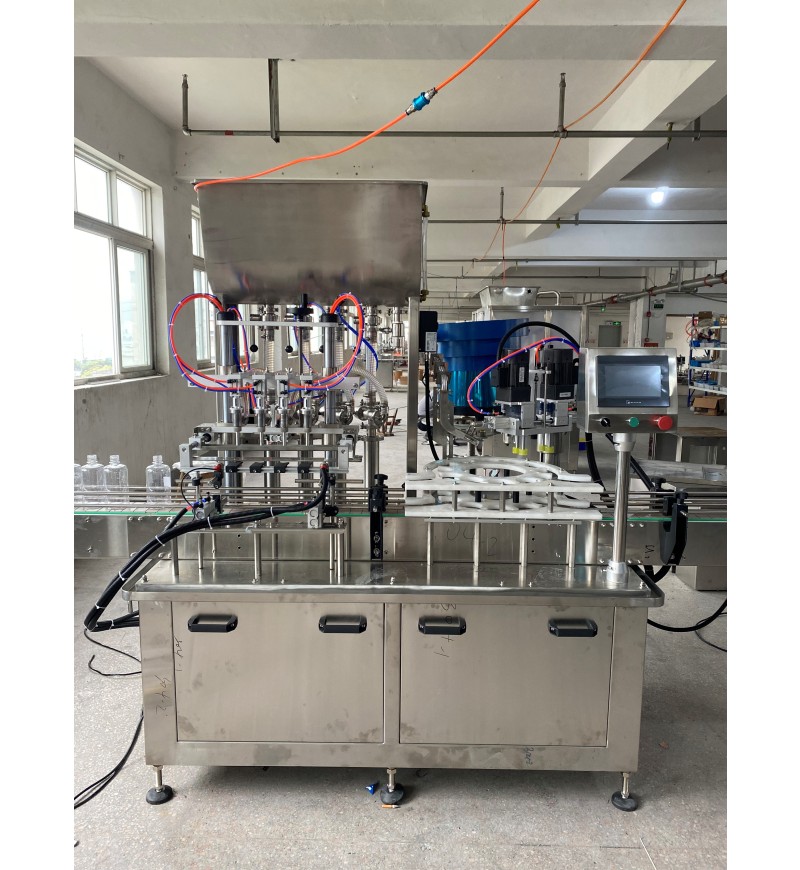

4 Head Automatic Filling & Capping Machine

SKU IA-1000/YTSP-4 Categories Filling Machine, Liquid Type Filling Machine Tag FILLING MACHINE

Discover the 4 head automatic filling and capping machine with precision piston filling, anti-drip suck-back, PLC touchscreen control, and 304 stainless steel construction for easy cleaning and GMP compliance.

Machine Process

Automatic Piston Pump Filling (4 Heads) + Auto Lifting + Heating Tank
Automatic Plugging Machine (1 Head)
Automatic Screw Capping Machine (1 Head)

Machine Features

This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage.
Piston pump filling, measuring precision, convenient manipulation.
Filling system has function of suck back, avoid liquid leak through.
Color touch screen display, PLC control system, very stable perfor-mance.
Machine body is made by 304 stainless steel, easy to dismantle and clean, full compliance with GMP requirements.

Technical Parameter

Model	IA-1000/YTSP-4
Voltage	220V 50/60Hz
Power	1.5Kw
Filling Heads	4
Capping Heads	1
Filling Volume Range	100-1000ml (Adjustment)
Capacity	1200-1500 Bottles/hour
Filling Accuracy	1-2%
Machine size (L W H)	250010001900mm
Weight	500Kg
