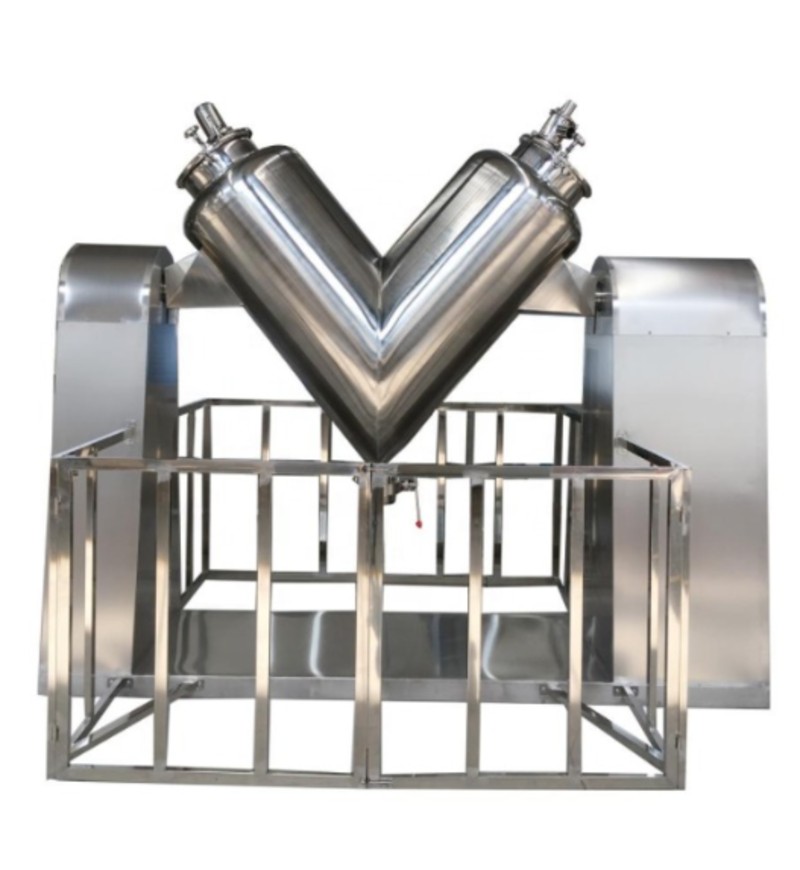

“V” TYPE POWDER MIXING MACHINE IA-180VI

Characteristics

The machine has the features of the special construction, high effect, uniform mixture. The machine can also increase to blend the function compulsorily. It can mix thin powder and more than two form powders including the materials that contain water. It can get the good result of admixture (meaning that little admixture additives).

Feature

V-type mixer can produce homogeneous solid-solid mixture of medicine, health care and food.
Comply with GMP standard, there is no dead corner mixing barrel.
There is a manual operation inspection and loading port at the end of the cylinder to allow access to its interior.
The outlet is positioned at the position where the two cylinders are connected, and is equipped with a manual or automatic butterfly valve.
The maximum capacity reaches 50 litres.
The guardrail conforms to the EC safety standard to prevent the operator from touching it during operation.
The side bracket to support the hybrid body has a durable motor and bearing system.
Isolate from the outside world during powder mixing.
Easy to operate and clean, low working noise.

Specification

Model	IA-180VI
Full Volume	0.3m³
Capacity (Litre)	60-80L
Mixing Revolution	6-10rpm
Mixing Time	0-60 Min
Motor Power	1.1kw
Stirrer Motor	0.55kw
Power	3 Phase , 415v
Weight	310kg
Gross Rotation Speed (mm)	1850
Overall Size (L x W x H) mm	1900 x 700 x 1650
Material	Stainless Steel 304
Brand	IACHIEVE
