Description
MAIN APPLICATION:
It is widely applied for the material crushing by the industries of pharmacy, chemical, metallurgy, foodstuff and so on, especially that contains little oil and viscosity like white sugar, dry chili, pepper and others.
WORKING METHOD:

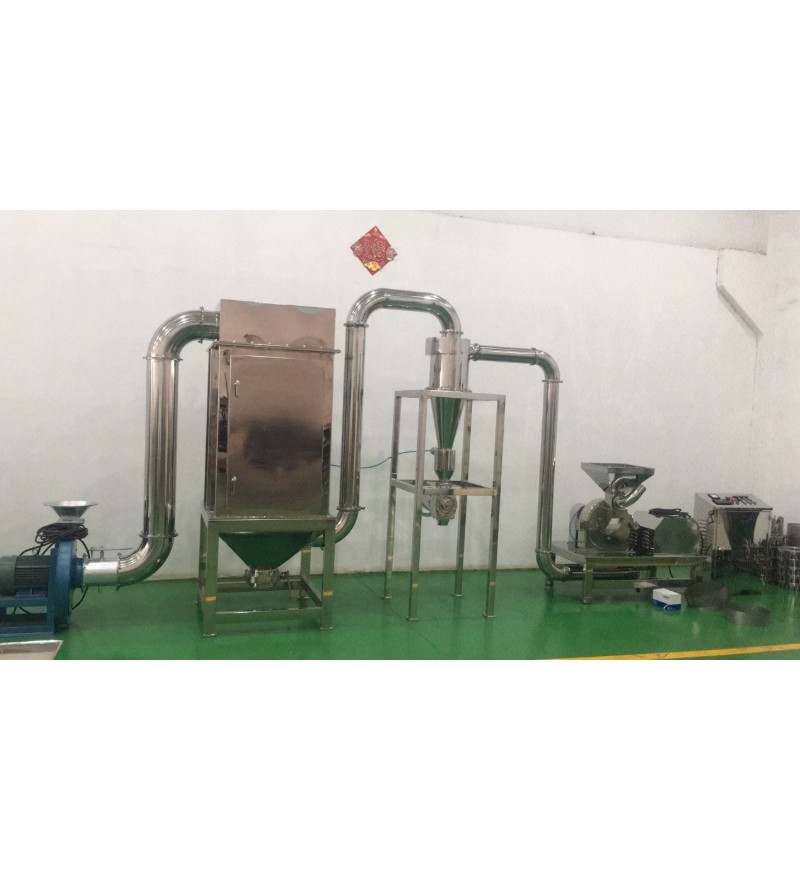

The machine is composed of grinder, cyclone separator and blower. The crushing chamber is equipped with the wind wheel type high speed rotary cutters so that the airflow in the chamber is strong enough to eliminate any heat in the chamber; It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
FEATURES:
- The material of machine is made of stainless steel SS304
- The size of powder can be achieved by changing sieve which is 20-120 mesh
- Capacity is improved a lot because the cyclone discharging more quickly
- Easy and firm structure, stable running, low noise and high efficiency
TECHNICAL PARAMETER:
| Model | IA-60C/WF |
| Brand | IACHIEVE |
| Capacity | 300-600kg/h |
| Rotary Speed | 2500r/min |
| Input size | 15mm |
| Final size | 40-120 mesh |
| Grinding Power | 30kw |
| Fan Power | 7.5kw |
| Discharging Power | 1.5 |
| Dimension (LxWxH) | 6900 x 1400 x 3800mm |
| Weight | 2400kg |

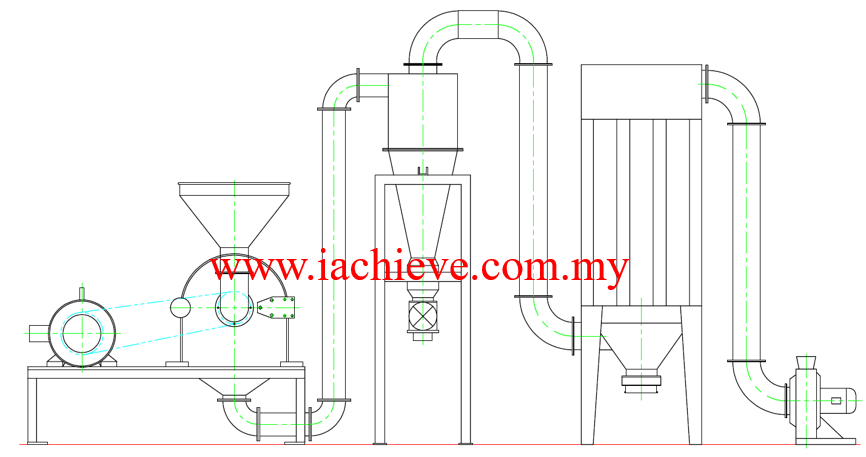

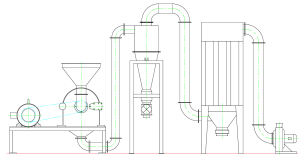

MACHINE DRAWING:

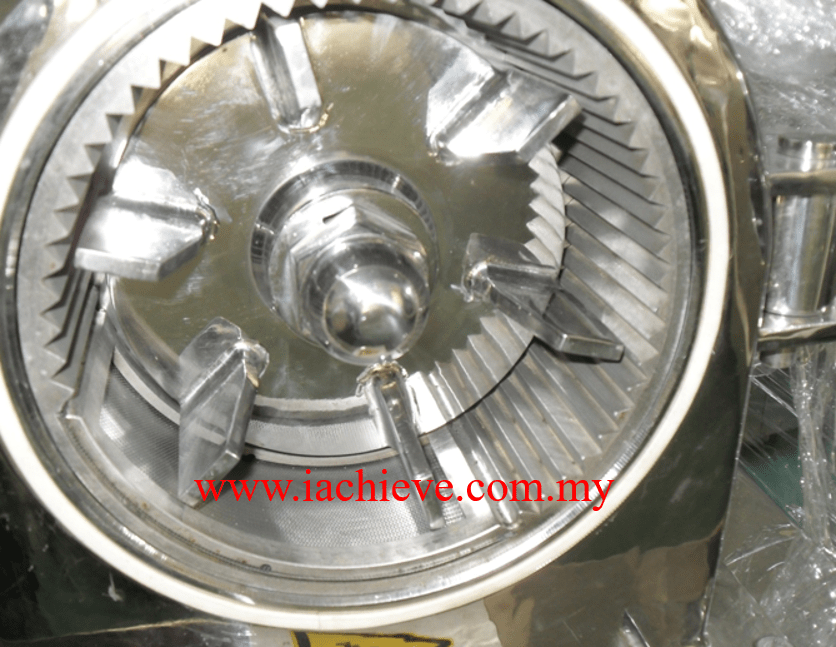

GRINDING BLADE:
