Description
DESCRIPTION:

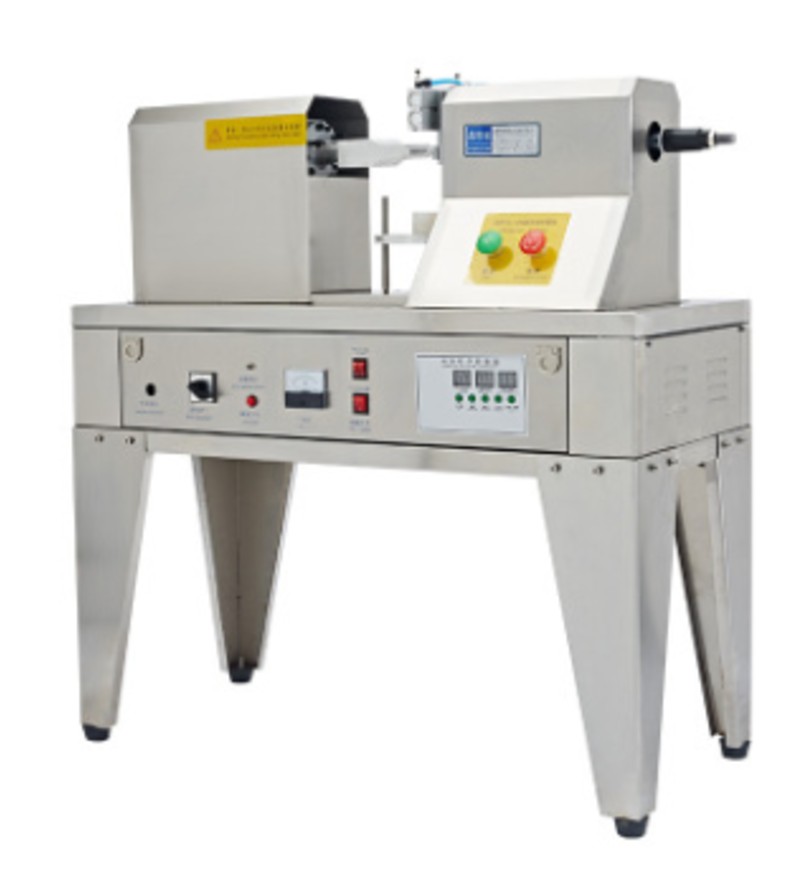

Ultrasonic hose sealing machine adopts Taiwan movement circuit, uses the principle of ultrasonic to seal the end of hose and composite pipe, has good working stability and high efficiency, and the moving components are all well-known brands. After careful design by our company, we are the first to launch an advanced ultrasonic series product ahead of domestic counterparts. This machine is based on the original type sealing machine. The casing is improved by 304 stainless steel and the sealing and cutting function is added. Therefore, this machine can work in harsh environments and can meet the requirements of corrosive product sealing and one-time forming (The seal automatically cuts off the extra edges at the same time.
APPLICATION PRODUCT:
Mainly used for sealing of toothpaste, cosmetics, medicines, food, industrial products, etc.
TECHNICAL PARAMETERS:
| Power supply | Single-phase AC (AC) 220V 50Hz |
| Output power | 1200W |
| Working frequency | 20KHz |
| Sealing diameter | Φ5-Φ80mm |
| Processing height | 0-300mm |
| Sealing speed | 20 / sec |
| Whether to bring a knife | Yes |
| Printing | standard models without printing function (customizable printing function) |
| Working stroke | 50mm |
| Dimensions | 1100*460*450 |
| Weight | 86kg |
MACHINE FEATURES:
- Economical: This machine has reduced the extra functions, only retaining the most core sealing and trimming functions, and strives to achieve the highest efficiency at the lowest price.
- Sealing and trimming: The left side of the machine is an ultrasonic device, and the right side is a sealing and trimming device. The tool head can be customized according to customer requirements.
- Stability: the power source of the machine is pneumatic, work is stable, not easy to damage, customers can rest assured to use.
