Description
MACHINE DETAILS:

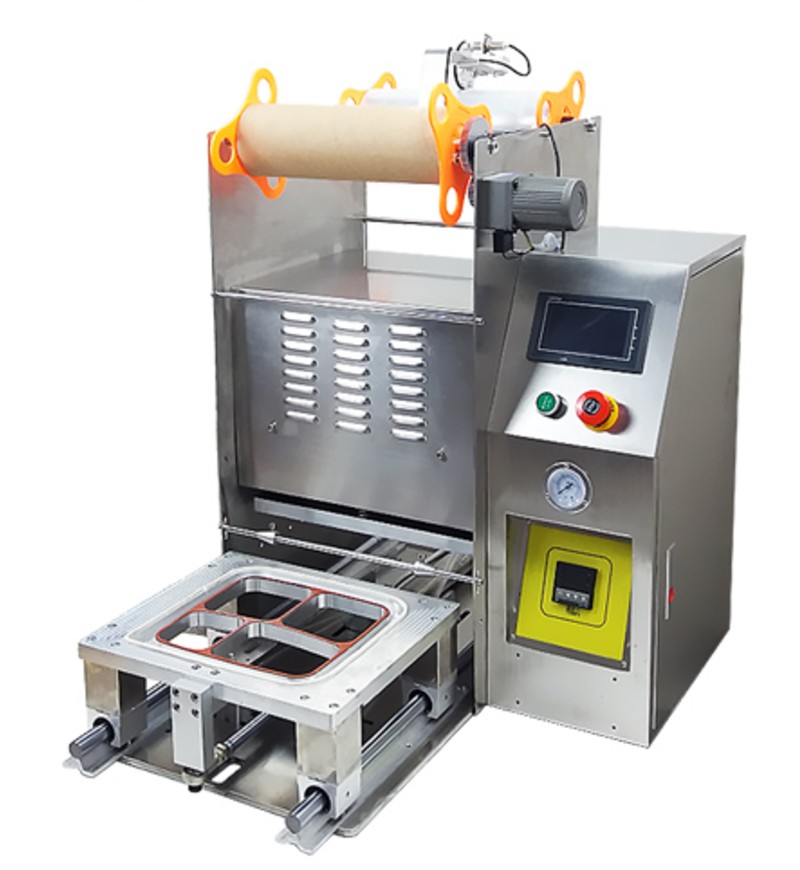

This machine is a new desktop type automatic sealing machine developed according to market demand, which improves production efficiency and saves effort. The sealing film is made of plastic composite coils, automatic punching, automatic sealing and automatic waste discharge, which solves some cups without lids. , The bottle sealing problem, no matter what shape, can be sealed, saving space, can seal one box, two boxes, four boxes at a time, it is very popular among users.
FEATURES:
1. Automatic box feeding, air pressure sealing, automatic waste discharge, automatic box ejection, automatic top box.
- Single-chip microcomputer program control, stable and reliable.
- The man-machine interface is controlled by a digital display LED screen, which is easy to operate and can monitor the running status of the machine at any time.
- Classic digital display temperature control meter, the temperature difference is plus or minus 5 degrees, and the sealing effect is good.
- Precise guide rail, smooth walking, precise positioning.
- Taiwan photoelectric eye tracking, electrical integration.
- The size of the sealing film is 2-3mm larger than the cup mouth, the sealing is tight, and the appearance is beautiful
TECHNICAL PARAMETER:
| Model | IA-1T/FHJ-M |
| Brand | IACHIEVE |
| Capacity | One to one: 500-600 tray/h |
| Sealing diameter | 50-250MM (customized) |
| Sealing material | Plastic composite film, aluminum foil composite film, PP, PE, PET, PS are all available. |
| Air pressure range | 4-8kg/cm2 |
| Temperature range | 0-300 degrees |
| Power | 500-1000w |
| Voltage | 220v |
| Machine size | 600 x 850 x 800 |
| Machine appearance | Stainless steel |
| Net weight | 75kg |

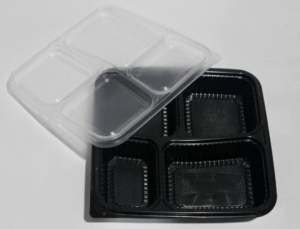

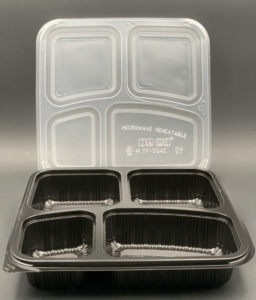

PRODUCT APPLICATION:
