Description
DESCRIPTION:
This machine is suitable for medicine aluminum-plastic plates, round bottles, heterosexual bottles, food, school supplies, health care products, toys, cosmetics, auto parts, toothpaste, tissues, office supplies, hardware, household paper, poker, etc. and similar items It can automatically complete manual folding, carton opening, article packing, batch number printing, and box sealing.
The machine uses PLC to control the photoelectric monitoring of the actions of each part. It automatically rejects unqualified items during operation. If abnormalities occur, it can automatically stop and display the reason for troubleshooting in time. The machine can be used alone or combined with a blister packaging machine. The hot melt device or other equipment is used in conjunction to form a complete production line.
- Refrigeratioin unit with strong power to support enough cold air for freshness.
- The size can be customized to meet markets’ needs.
- The showcase is equipped with a plastic curtain that can be pulled down to prevent insects from the fruits and vegetables.
- Inclined design of shelves for better display and storage effect with glass plates in front to prevent foods from failing.
TECHNICAL PARAMETER:
| Model | IA-100/DZH |
| Brand | FULLWELL |
| Capacity | 30-80/minutes |
| Box requirement | 250-350 g/m² |
| Box dimension | Biggest size : 220 x 90 x 65mm
Smallest size : 70 x 14 x 14mm |
| Power | 1.5kw |
| Dimension | 3100 x 1100 x 1600mm |
| Weight | 1500kg |

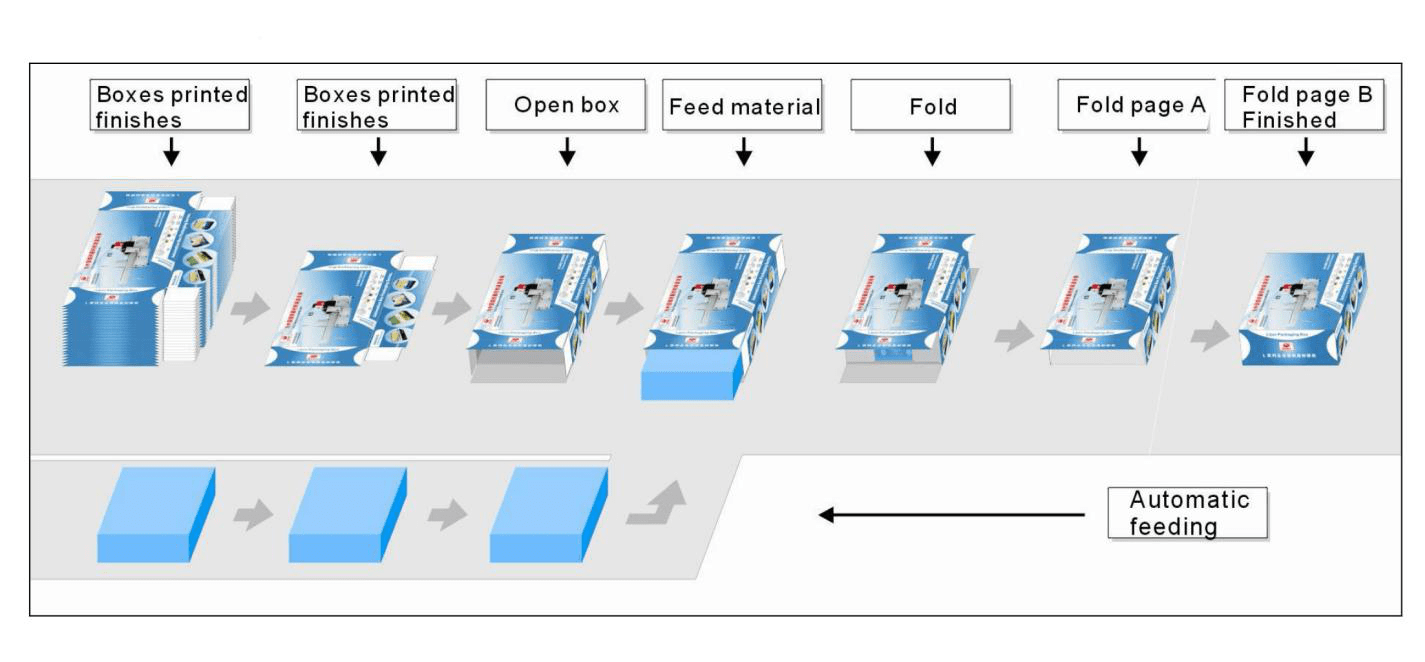

EQUIPMENT WORKFLOW:

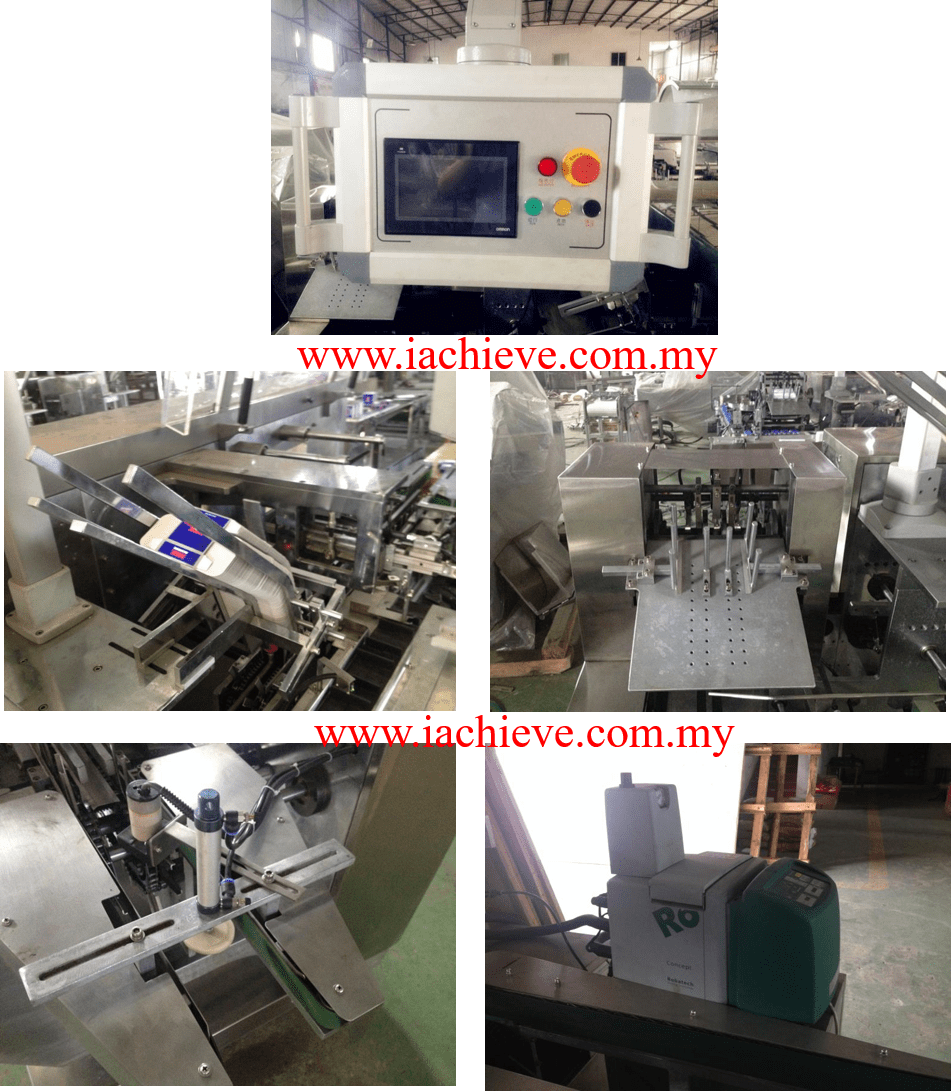

MACHIENE FEATURE:
