Description
DESCRIPTION:

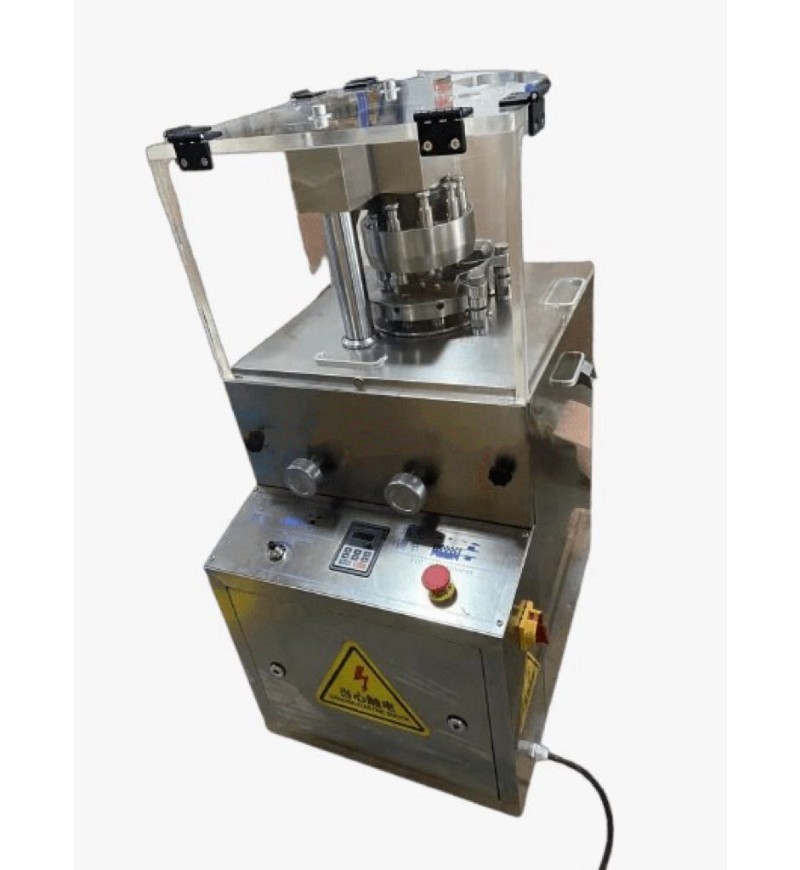

This machine is a dual-press automatic rotating, continuous tableting machine, which can compress granular raw materials into round tablets, lettering and special-shaped, two colour tablets. It is mainly used for the production of tablets in the pharmaceutical industry, and is also suitable for chemical and food industries. , Electronics and other industrial enterprises.
Main structural features:
- The outer casing is a closed form of all stainless steel, and the internal table surface is made of stainless steel, which can maintain the surface gloss and prevent cross-contamination, and meet the GMP requirements.
- Equipped with plexiglass see-through window, can see the pressing state, and the side panels can be fully opened, which is easy for internal cleaning and maintenance.
- All controllers and operating parts are reasonably arranged.
www.iachieve.com.my
No.78 &78-1, Blok D7,Pusat Perniagaan Suria Puchong, Jalan Suria Puchong 1,47110 Puchong, Selangor
Sales: 0111-577-1177 Services: 013-626-6633 - The frequency conversion speed control device is adopted for electrical speed control, which is convenient to operate, stable in rotation, safe and accurate.
- Equipped with overload protection device, when the pressure is overloaded, it can automatically stop.
- Implement electromechanical integration, using button keys and screen display.
- Take the lead in trying the semi-automatic lubrication device and the plexiglass dust-proof device on the top of the turntable.
- The transmission system is sealed in the oil tank below the main engine. It is a safe and separated independent part without mutual contamination. The transmission part is immersed in the oil pool, which is easy to dissipate heat and wear.
- Vulnerable parts such as the upper rail, feeder, hopper, transmission worm, powder meter, etc. have a common structure with the products, which is conducive to standardization, generalization and serialization.
SPECIFICATION:
Model: IA-9D/ZP-T
Voltage: 220V 50/60Hz
Motor Power: 2.2kw
Number of Die: 9
Max Working Pressure: 60kn
Max Diameter of Tablet: 15mm
Max Thickness of Tablet: 6mm
Max Depth of Filling: 15mm
Product Capacity: 17,000pcs/h
Machine Dimension: 480L * 630W * 1100H mm
Machine Weight: 260kg
