Description
DESCRIPTION:

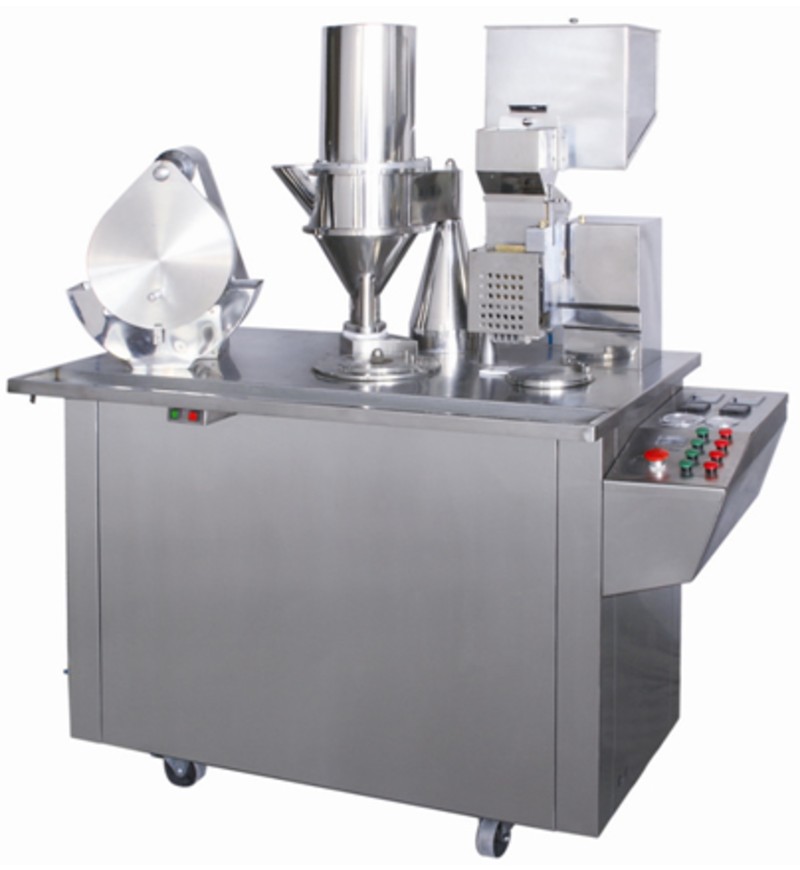

This machine is adopted with micro-computer PLC, touch screen operation, frequency converter, electronic auto counting device, can automatically complete the placing, separating, filling and locking for capsule respectively, decrease the work intensity, increase the output capacity, meet the requirement of pharmaceutical sanitary. Novel structure, good-looking appearance, easy of operation, it is suitable for filling domestic and imported capsules. It is ideal equipment for filling capsule medicine in pharmaceutical industry at present.
TECHNICAL PARAMETER:
| Model | IA-208C/CGN |
| Brand | IACHIEVE |
| Capacity (10 thousand pcs/h) | 1-2 |
| Total Power | 380V/50Hz 3.1kw |
| Capsule Style | 0#.1#.2#.3# Machine made standard capsule |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air supply | ≥0.1m³/min |
| Vacuum (m³/h) | 40 |
| Overall Dimensions(mm) | 1200×720×1600(L×W×H) |
| Weight (kg) | 330 |
