STAINLESS STEEL HOMOGENIZER TANK IA-200L/RHG

SKU IA-200L/RHG Category

Features

The Homogenizer tank is made of centrifugal force generated by a high-speed, powerful rotating rotor, which breaks the material from the radial direction into the narrow and precise gap between the rotor and the rotor, and is subjected to centrifugal extrusion and impact to make the material dispersed and mixed, emulsification. The machine has the advantages of compact structure, small size, light weight, easy operation, low noise and stable operation. Its biggest feature is that it does not grind the medium in the production process, and combines high-speed shearing, dispersing, homogenizing, mixing and crushing.

The Role of The Homogenizer Tank

The Homogenizer tank can make the material high-speed staged and emulsified, so that various materials can be uniformly mixed to obtain a uniform liquid. At the same time, the emulsification tank also has the functions of heating, cooling, heat preservation and stirring. The tank body design has material inlet, discharge port, pure water port, etc. The process nozzle provides the full range of conditions for the emulsification process.

Technical Parameter

Model IA-200L/RHG
Brand IACHIEVE
Material SS304
Voltage 415v 3 Phase
Design pressure 0.3 Mpa
Design Temperature Inner 100°C Outer 130°C
Working pressure 0.2 Mpa
Working Temperature Inner 100°C Outer 120°C
Motor Power 1.5kw
Speed 0 – 1400rpm

Food Application

~ Food and beverage: dairy products, ice cream, chocolate, soy milk, juice, jam;

~ Chemical industry: Lubricating oil, grease, heavy oil emulsification, diesel emulsification, disinfectant, insecticide, photosensitive latex, rubber slurry, resin pulp, thickener, flavor, silicon material, carbon black, magnesium oxide, titanium dioxide, Anti-adhesive agent, mold release agent, antifoaming agent, sealant, etc.;

~ Cosmetics industry: detergents, conditioners, shampoos, body lotions, perfumes;

~ Pharmaceutical industry: injection, drug emulsion, medicine cream, health care products, pharmaceutical preparations;

~ Paper industry: Pulp, adhesive, injection, resin emulsification.

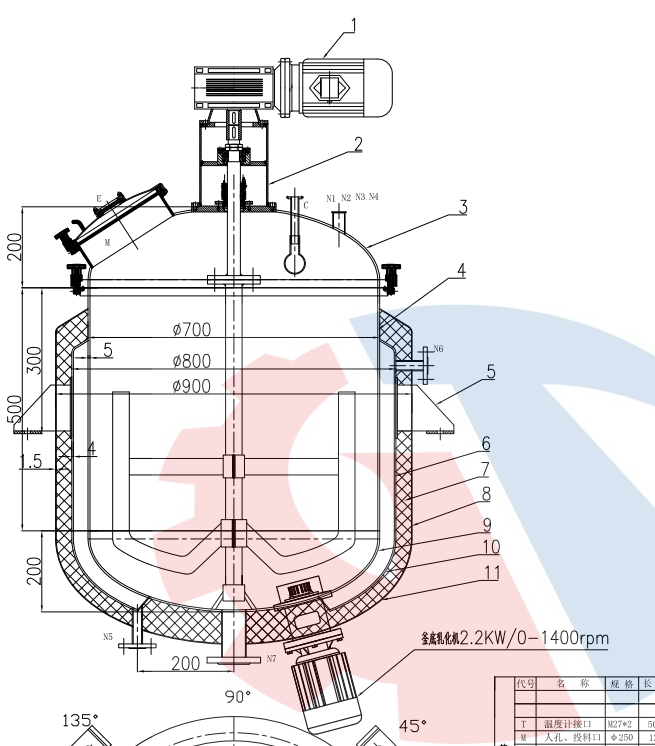

Product Drawing
