Description
DESCRIPTION:

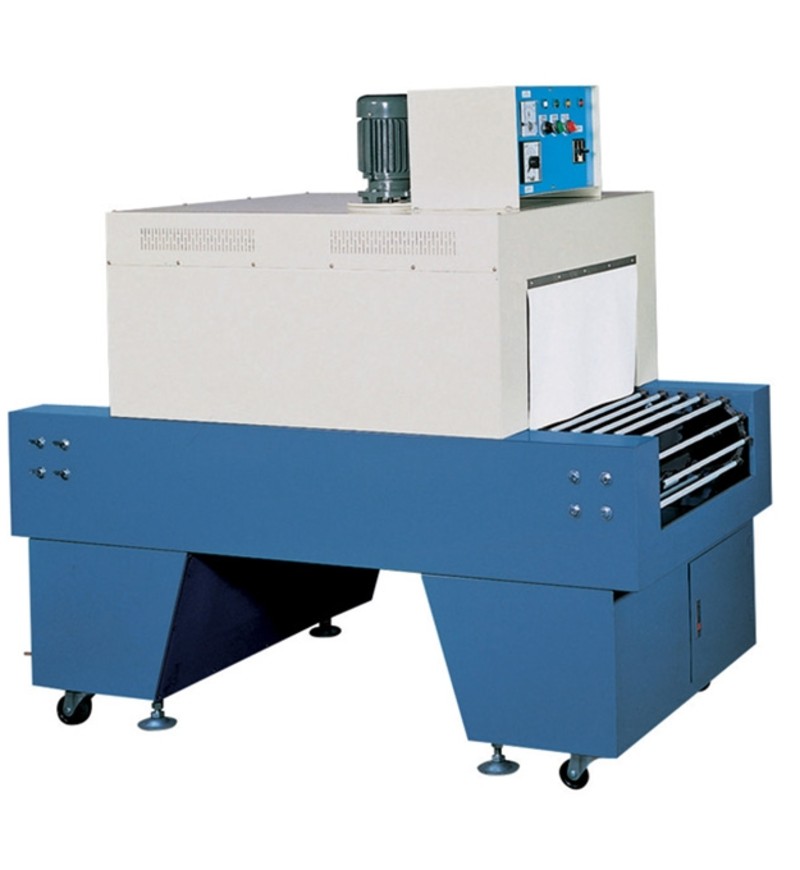

- IA shrink packaging machine adopts heat circulating type tunnel, temperature averagely spread. Special design and high in safety.
- This equipment is installed in the exit of shrink-packaging machine in order to accomplish the perfect shrinking effect.
- Special designed for POF, PVC film packaging.
- Auto temperature control can be adjusted for desired temperature.
- Conveyor speed is adjustable.
TECHNICAL PARAMETER:
| Model | IA-4520POF | IA-6530POF | IA-8540POF |
| Power supply | 3 Phase, 415v | 3 Phase, 415v | 3 Phase, 415v |
| Power consumption | 12kw | 15kw | 18kw |
| Tunnel size (Lx W x H) |
1200 x 450 x 200mm | 1200 x 650 x 300mm | 1200 x 850 x 400mm |
| Conveyor speed | 2-8m/min | 2-8m/min | 2-8m/min |
| Conveyor size (Lx W x H) |
2000 x 450 x 760mm | 2000 x 650 x 760mm | 2000 x 850 x 760mm |
| Machine dimension (Lx W x H) |
2000 x 730 x 1300mm | 2000 x 930 x 1400mm | 2000 x 1170 x 1500mm |
