Description
Application

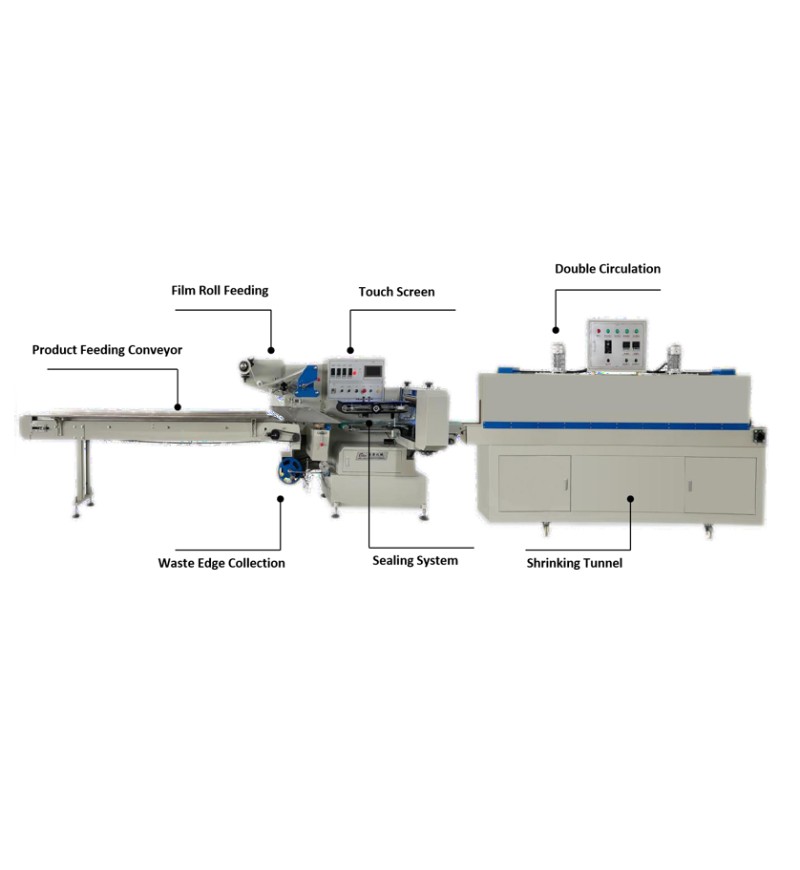

Based on the automatic flow packing machine, this machine can automatically finish product packing and shrinking in high speed up to 150pcs/min (depends on product size）. It is suitable for box, bag packages and individual regular products like drums instant noodles, toilet-roll, hardware, gift box, photo album, cosmetics etc, widely used in the food, daily necessities, pharmaceutical and other industries.
Features
- Suitable for various shape products.
- PLC control and movable touch screen for easy operation. 3.Option for date coding.
- Servo motor control. More intelligent.

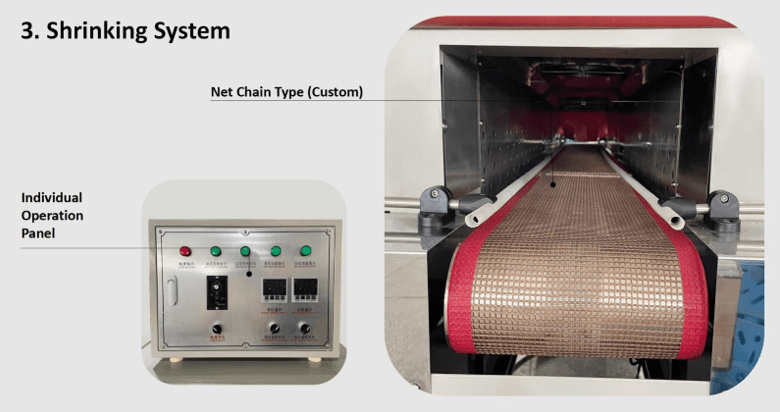

- PID temperature control. Suitable for various film. 6.Dual cycle for shrinking tunnel, ensure the shrink effect.
Technical Parameters
| Model No | IA-590HY + IA-2520SSJ |
| Voltage | Packing Machine – 220v, Single Phase
Shrinking Machine – 415v, 3 Phase |
| Power | Packing Machine – 4.75 kw
Shrinking Machine – 13.5 kw |
| Max film size | ≤590 mm |
| Bag length | 60 – 320 mm |
| Bag width | 10 – 200 mm |
| Bag height | 5 – 35 mm |
| Film type | PVC, POF, Shrinking Film |
| Packing speed | 30 – 150 |
| Machine weight | Packing Machine – 760 kg
Shrinking Machine – 380 kg |
| Machine dimension | Packing Machine – 2600 * 600 * 1700 mm Shrinking Machine – 2300 * 250 * 200 mm |

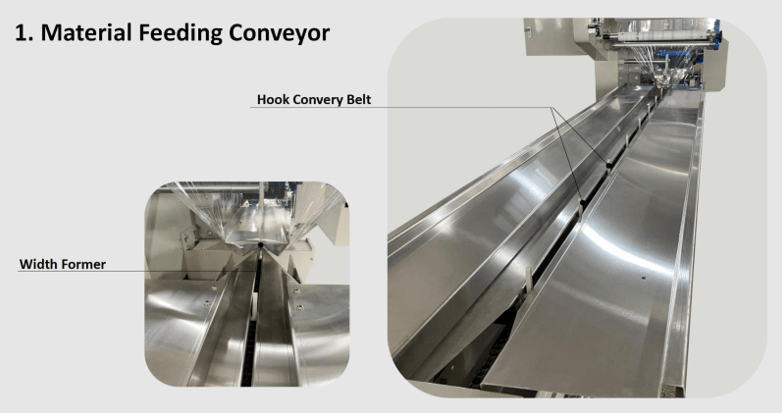

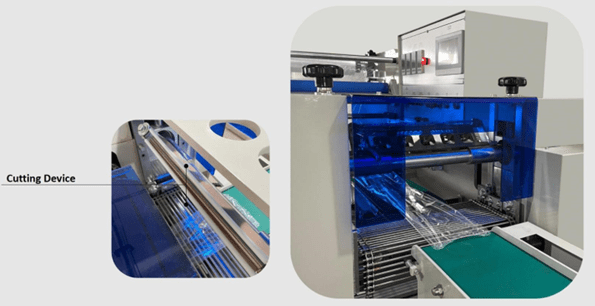

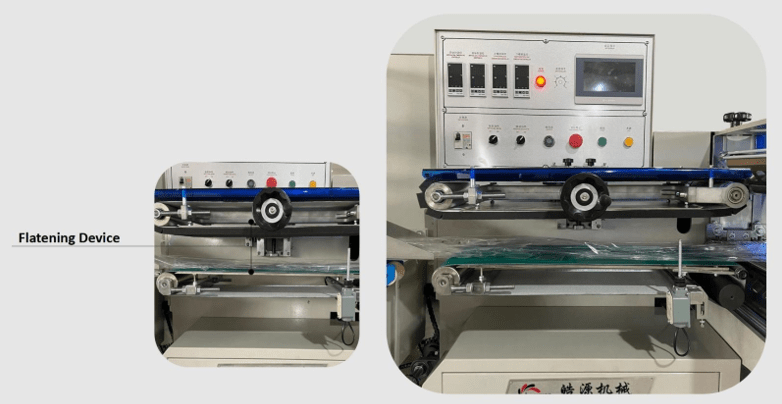

Standard Function Photos
