DESCRIPTION:

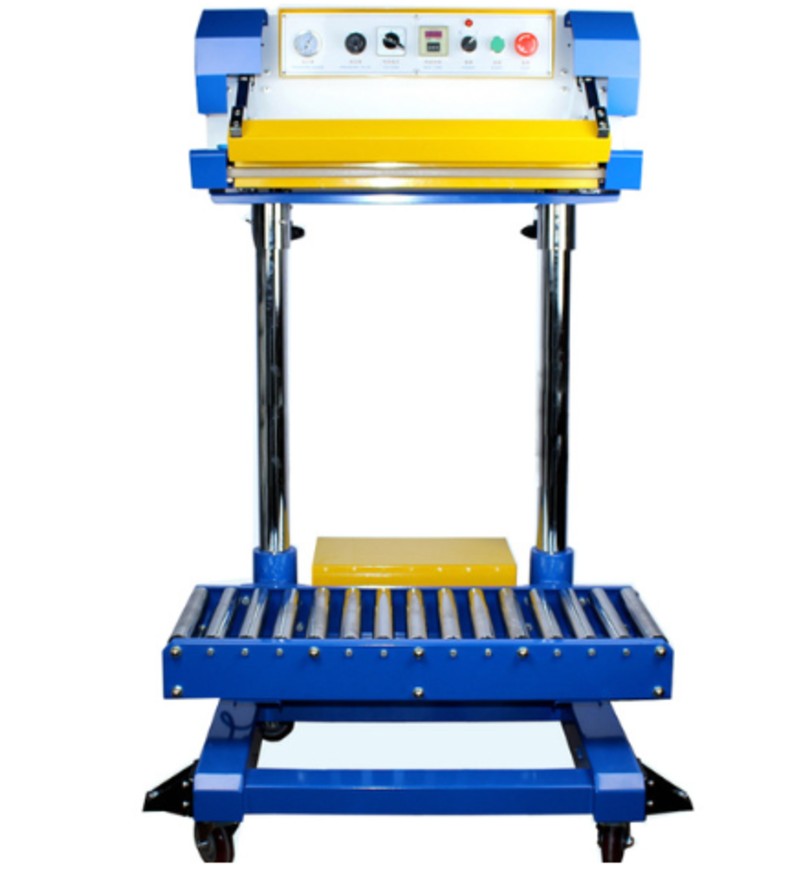

The pneumatic bag sealer is widely used in chemical industry, foodstuff, feedstuff industries to seal various plastic film bags and compound bag with maximum sealing length of 600mm and maximum carrying load of 50kg. It adopts compressed air as motive power with variable sealing pressyre and reliable sealing quality. The sealing operation can be controlled by manual or through using pedal switch, featuring ease of operation. For relatibely thick bag, you can choose model IA-600L/QF-S, with double heating function. According to special order, the sealing length can be increased to 700mm, 800mm, 1000mm. The machine can also be integrated into a conveyor or a production line.
TECHNICAL PARAMETER:
| Model | IA-600L/QF |
| Brand | IACHIEVE |
| Voltage | AC220v /50Hz |
| Sealing power | 250w |
| Air compressor | Equipped by user |
| Sealing length (mm) | 600/700/800/1000 |
| Sealing width (mm) | 8-10 |
| Distance from sealing center to floor | 1120 |
| Film thickness (mm) | ≤0.10 |
| Height of package (mm) | 450-750 |
| Maximum sealing loading (kg) | 50 |
| Adjustable angle of pressing head (°) | 20 |
| External dimension (LxWxH)mm | 720 x 560 x 1340 |
| Net weight (kg) | 80 |
