The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.

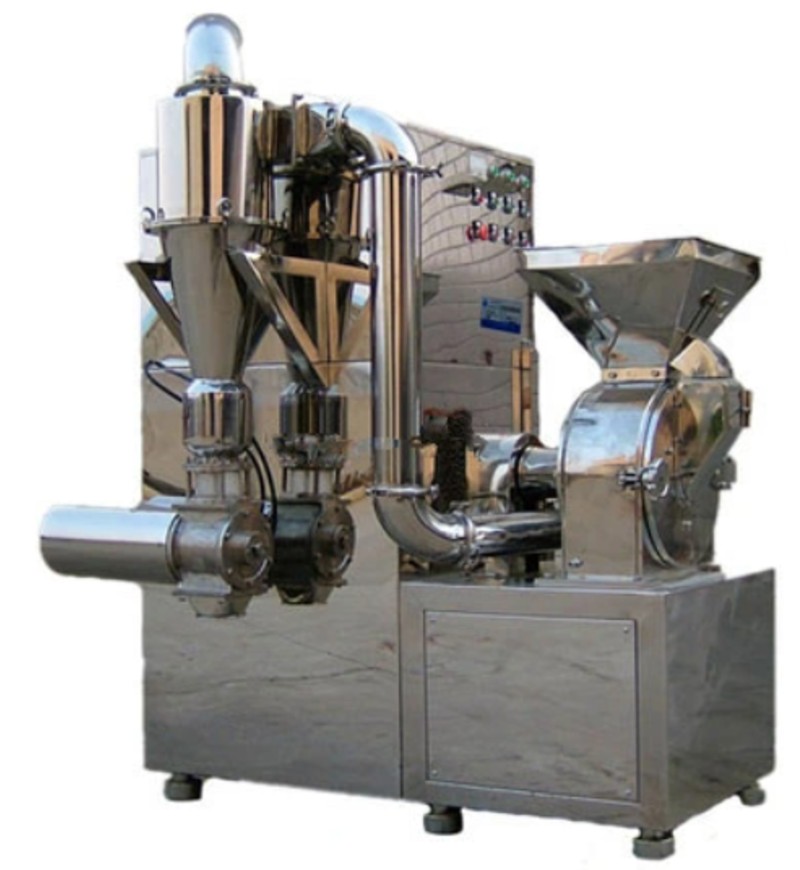

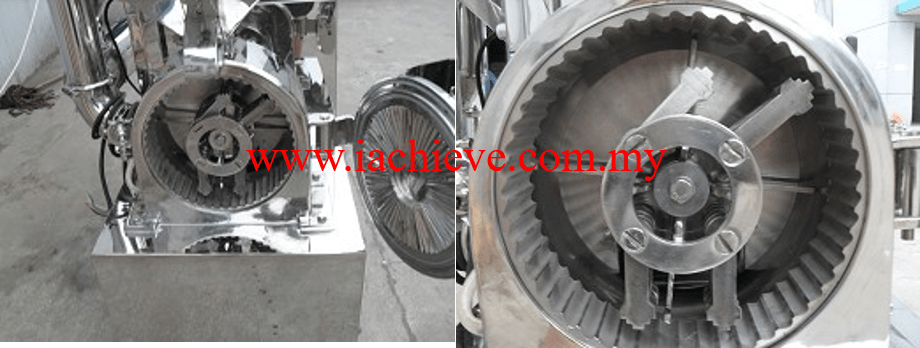

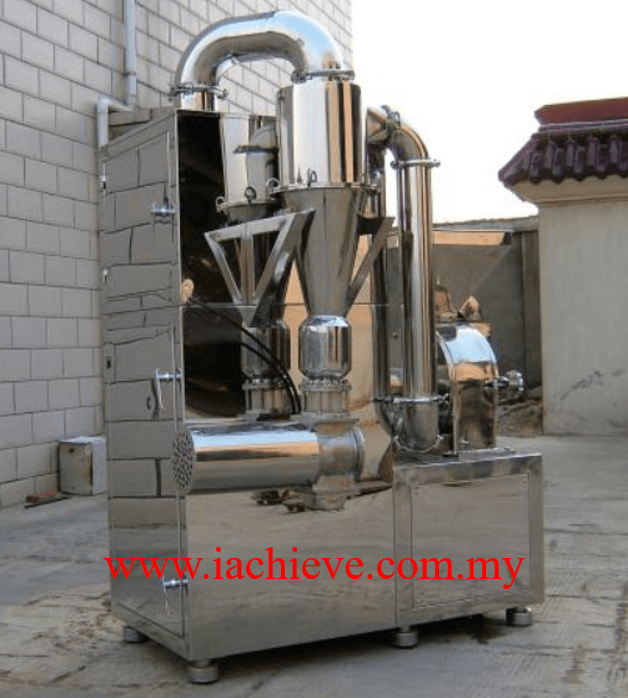

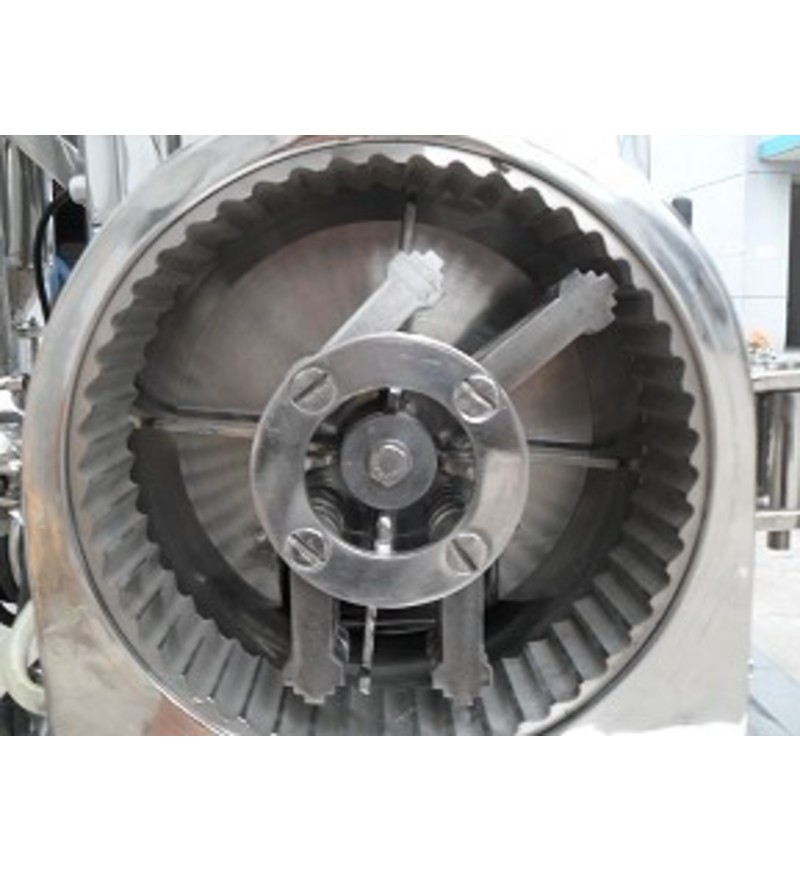

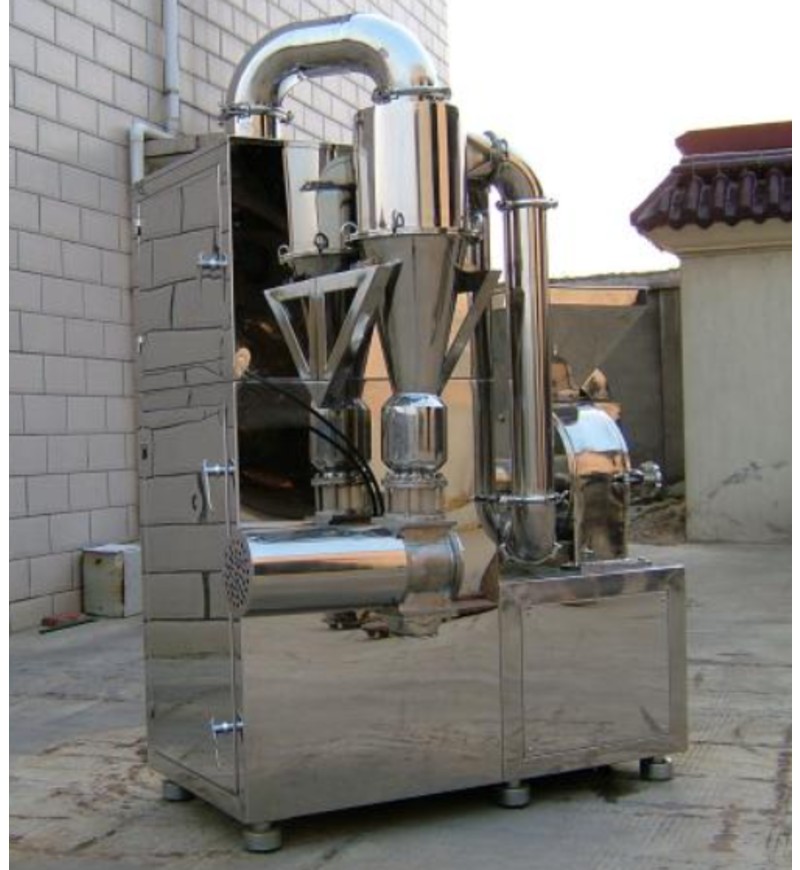

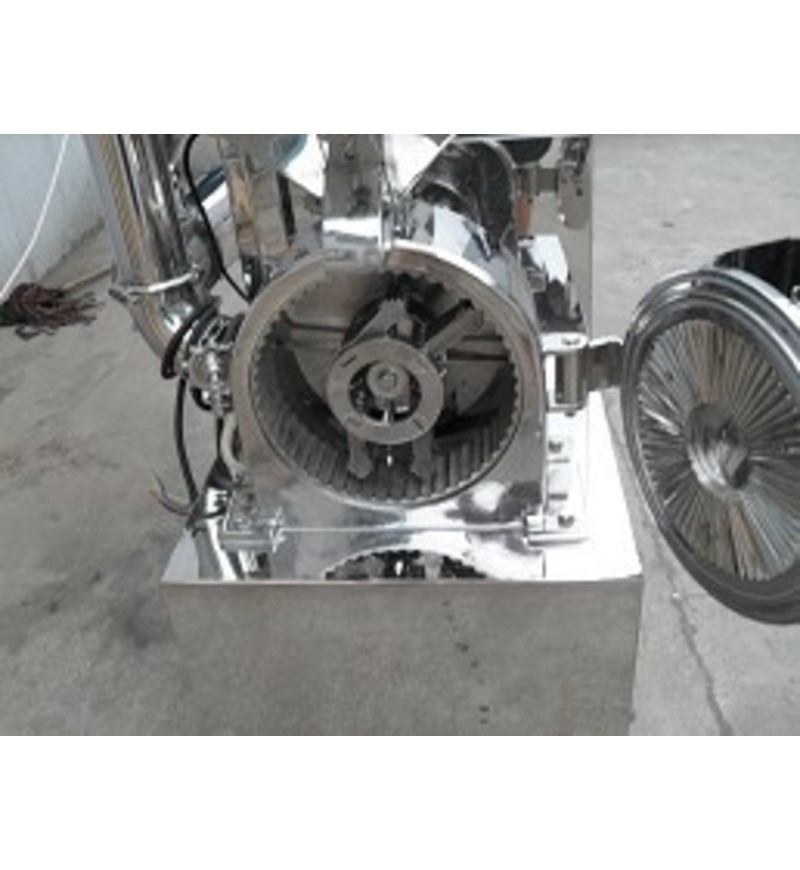

The machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, collection box, dust collection box and etc. Any raw material, being feed into the grind chamber through the upper feeder, is pulverized by highspeed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The highspeed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. The whole machine, designed according to GMP standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.
For crush the big material such as chili, sesame, walnut, rice, mung bean, peanut, lotus seed ,maize , buckwheat , Herbal, spices etc into small granule or powder.
| Model | IA-300/FSJ-M |
| Brand | IACHIEVE |
| Power | 415V, 3 Phase |
| Material | Stainless Steel 304 |
| Capacity | 50-200kg/h |
| Pulverizing Rotate | 4500-4800rpm |
| Hopper | 20kgs |
| Size of input granules (mm) | <12 |
| Fineness of products | 20mesh – 120mesh |
| Grinding power | 7.5kw |
| Dust absorption power | 2.2kw |
| Weight | 550kg |
| Dimension | 1200 x 850 x 1780mm |
| Optional | Heavy duty Caster wheels
With Cooling System to maintain temperature |
