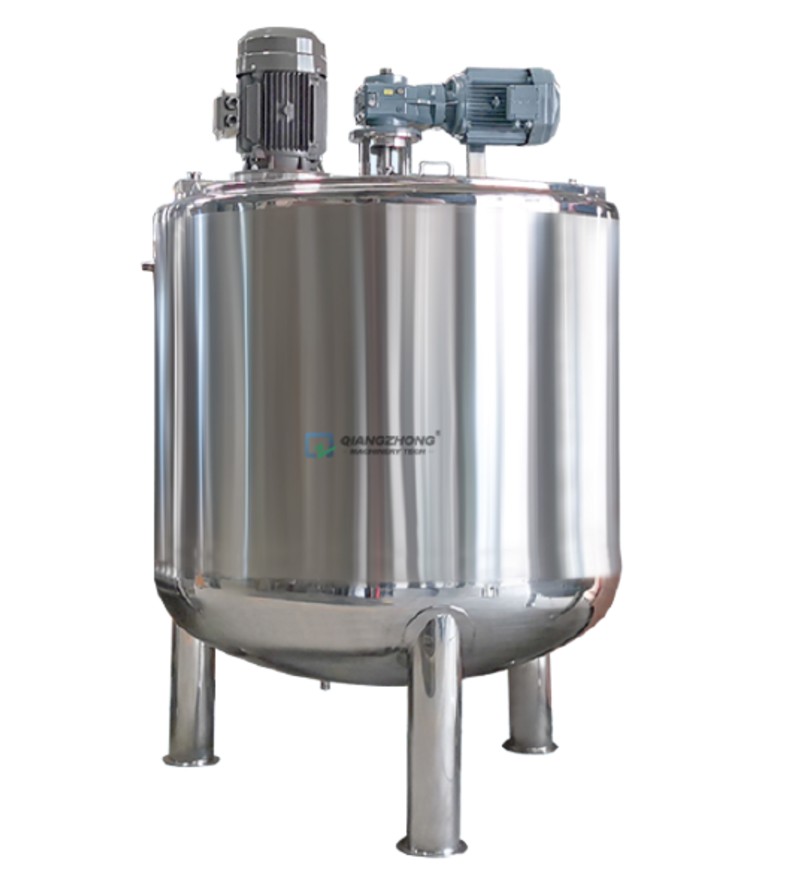

HOMOGENIZER TANK WITH MIXER IA-1000L/RHG

SKU IA-1000L/RHG Category

Features

The Homogenizer tank is made of centrifugal force generated by a high-speed, powerful rotating rotor, which breaks the material from the radial direction into the narrow and precise gap between the rotor and the rotor, and is subjected to centrifugal extrusion and impact to make the material dispersed and mixed, emulsification. The machine has the advantages of compact structure, small size, light weight, easy operation, low noise and stable operation. Its biggest feature is that it does not grind the medium in the production process, and combines high-speed shearing, dispersing, homogenizing, mixing and crushing.

The Role of The Homogenizer Tank

The Homogenizer tank can make the material high-speed staged and emulsified, so that various materials can be uniformly mixed to obtain a uniform liquid. At the same time, the emulsification tank also has the functions of heating, cooling, heat preservation and stirring. The tank body design has material inlet, discharge port, pure water port, etc. The process nozzle provides the full range of conditions for the emulsification process.

Technical Parameter Of Tank

Machine description Upper and lower standard elliptical heads, fully enclosed, inner thickness 4mm, Jacketed steam coil 304 heating ф

76*3mm, outer layer 2mm, material (SS304). Insulation material

Material polyurethane foam. Double mixing system

Material SS316
Mixing system -Upper mixing motor power 2.2kw/36rpm, frame agitator, mechanical base for kettle, dense seal
-Lower agitator motor power 7.5kw/1400rpm, homogenized milk chemical head, with external circulation cooling device
-Equipment configuration ф38 respirator,Control box, ф150 sight light mirror, ф400 manhole, ф38 feeding, ф38 discharge port, ф38 breathing port, ф38 spare port, etc
The discharge port 400mm above the ground
Overall dimension 1300 x 1300 x 2500mm

Technical Parameter Of Filter

Material Stainless steel 304
Import and export 38mm

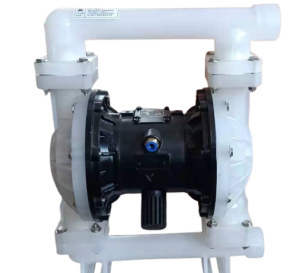

Technical Parameter Of Diaphragm Pump

Import and export 38mm
Flow 8T/H
Shell material Engineering plastic
Contact material F46 Teflon
