Description
Description:

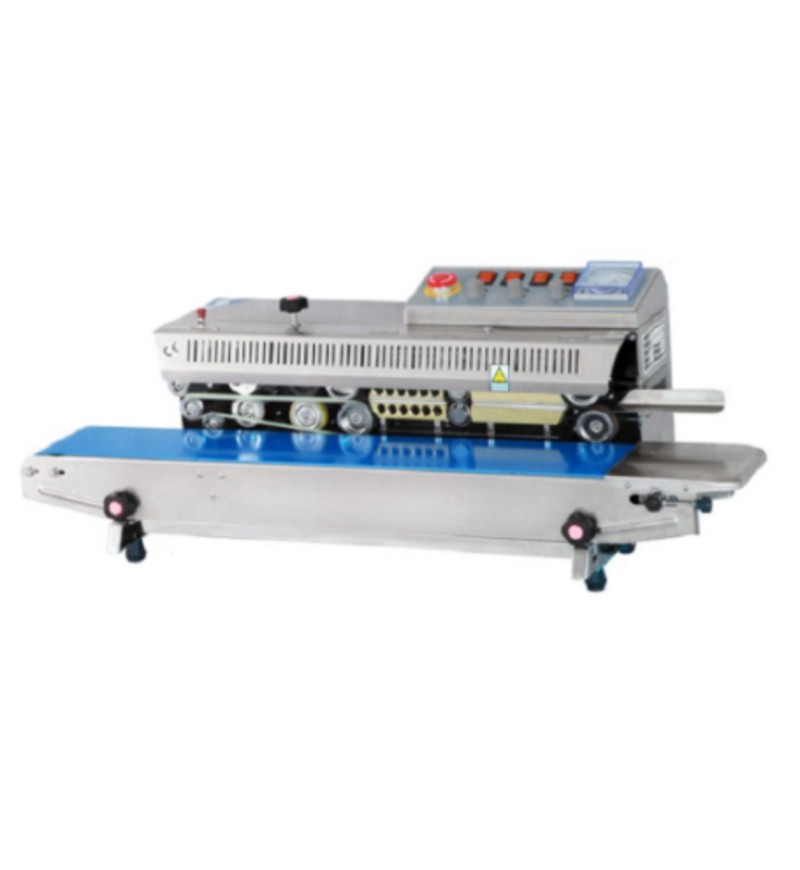

Continuous Band Sealer can seal plastic films made from various materials.
Solid-ink coding device is adopted to print the colored label on bag while sealing. The printing wheel equipped to the machine can be used for both R arrange and T arrange of types.
For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT). If necessary, counting device can be equipped as well.
Features:
- Constant temperature control and temperature is adjustable.
- Stepless speed regulation.
- Solid-ink coding is characterized by high definition, various selectable colors, instant dry while printing, strong adhesive property
Specification:
| Model | IA-980/AI |
| Voltage | 220V Single Phase |
| Motor Power (W) | 50 |
| Sealing Power (W) | 220×2 (300×2) |
| Printing Heating Power (W) | 40 x 2 |
| Speed (M/Min) | 0-16 |
| Sealing Width (MM) | 8 |
| Temperature Range (°C) | 0-300 |
| Printing Type | Solid Ink Roller |
| Distance Form Sealing Center To Conveyor Table (MM) | 10-40 |
| Conveyor Table Size (LxW) | 954 x 153 MM |
| Max Conveyor Loading For Single Package (Kg) | ≤1 |
| Overall Conveyor Loading (Kg) | ≤3 |
| External Dimension (LxWxH) | 950 x 390 x 345 MM |
| Net Weight | 28 Kg |
