Description
FEATURES:

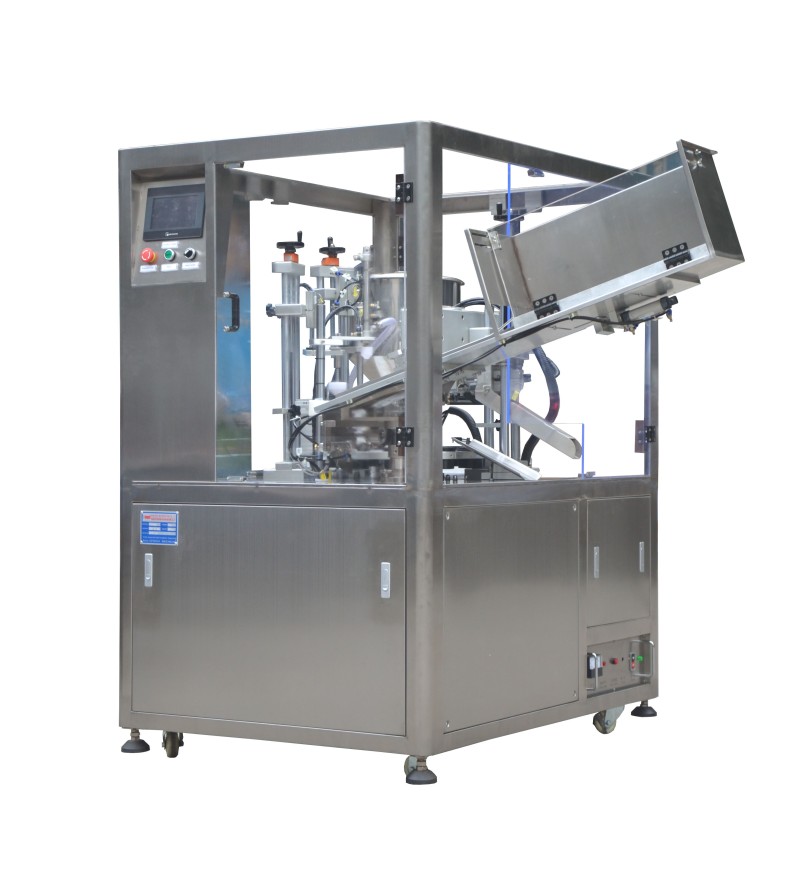

This machine is high technical equipment and integrating GMP requirement, with features of rational structure, complete function, easy operation, accurate filling, stable running, also low noise.
It adopts with PLC controller, automatically operating from liquid or high velocity material filling till batch number printing (including manufacture date). It’s an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, pharmacy, foodstuff, adhesives etc.
TECHNICAL PARAMETER:
| Model | IA-009A/FWJ |
| Tube material | Plastic tube, Laminate tube |
| Tube diameter | φ10-60mm |
| Tube length | 80-250ml (Customized) |
| Filling volume | 20-100ml/tube (Adjustable) |
| Filling accuracy | ≤±1% |
| Product capacity | 20-40 pcs/min |
| Air supply | 0.55-0.65 Mpa 0.1m³/min |
| Motor power | 2kw (380v/220v) 50Hz |
| Heat sealing power | 3kw |
| Machine dimension (L x W x H) | 1000 x 1350 x 1610mm |
| Overall dimension | 2620 x 1020 x 1980mm |
| Machine weight | 1000kg |

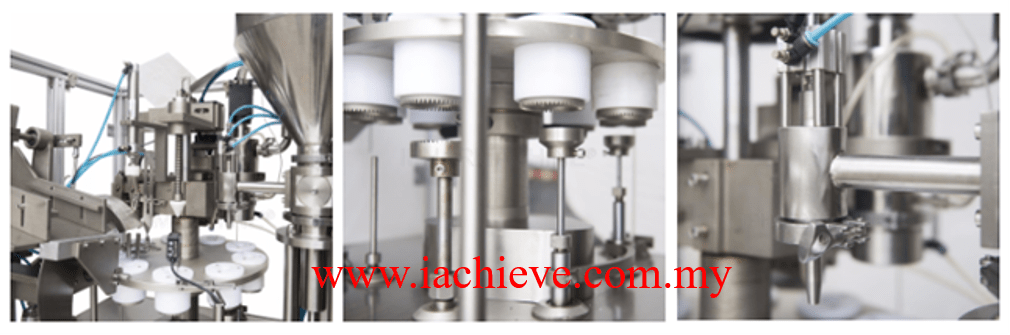

OTHER MACHINE DETAIL:
