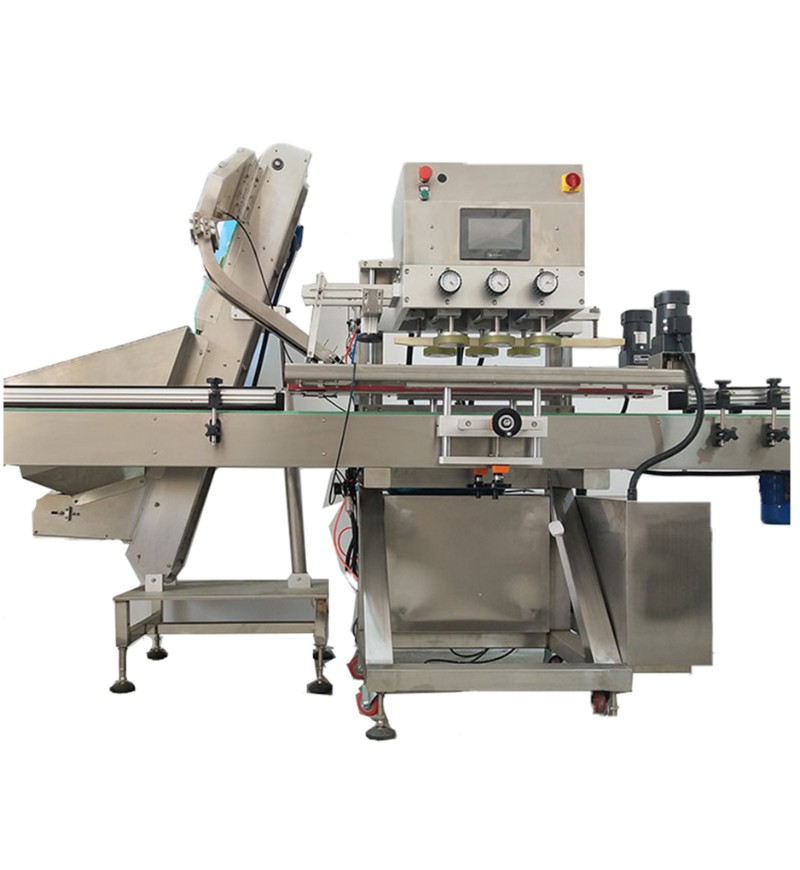

Description
FUNCTIONS:
- Adopt agile module combination, new ideal design, suit to various bottle and cap-rotating.
- No need to change parts, easily adjust.
- Easy operation and convenient for maintenance.
- Three group capping consist of first rotating and re-rotating the degree of moment may be adjusted singly. Ensure that will be tight. The machine has clutch to avoid the cap over-rotating.
- Two sets of bottles nipping and annular belt structure, Good effect for some bottles erecting unsteadily.
- Cap arranging part, conveying part, cap-rotating, belt for bottle, nipping, all of speed can be governing separately, which is more utility.
- Choosing automatic cap-sender and cap hopper.
TECHNICAL PARAMETER:
| Model | IA-2000/PTXG |
| Brand | IACHIEVE |
| Applied bottle height | 50-300mm |
| Applied cap range | 28-130mm |
| Yield of capping | ≥99% |
| Power supply | 220v/380v 50Hz |
| Power consumption | 800w |
| Speed control | Frequency conversion adjusting speed |
| Capacity | 2000-4000 bottles/hour |
| Dimension (L x W x H) | 2500 x 1000 x 2000mm |
| Weight | 600kg |
