Description

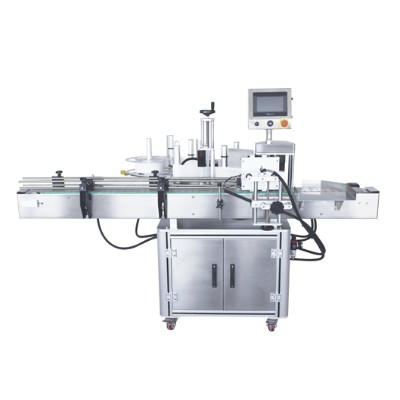

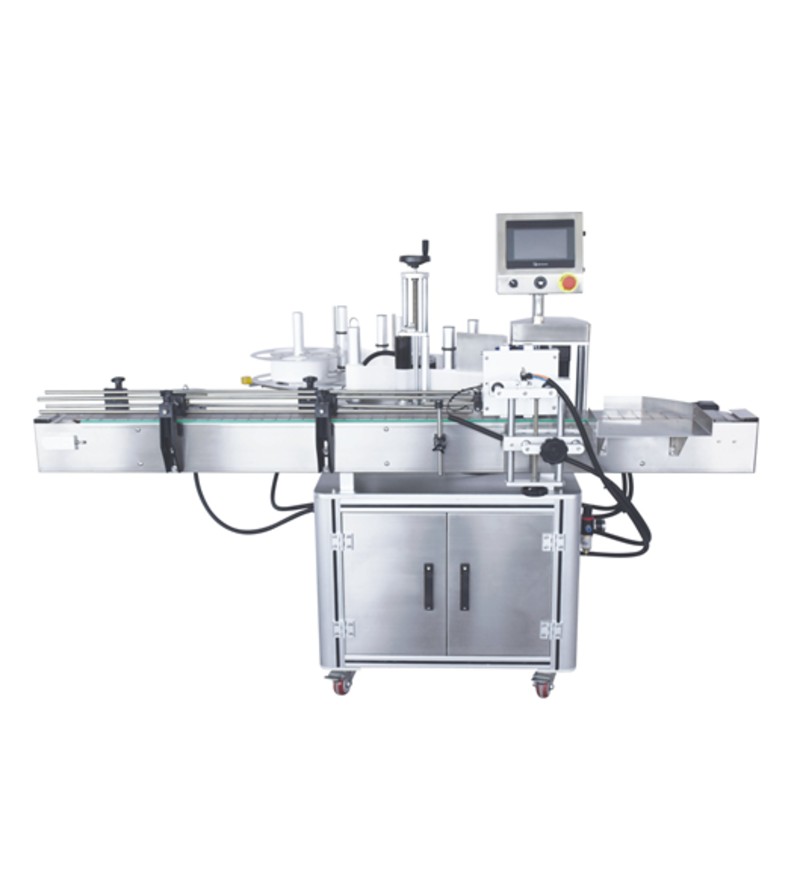

Applicable to beverage, pharmaceutical, food, daily chemical and other in-dustries of the round bottle label. It can be label for half-week. Can Optional with bottle finishing machine, can be connected to the front-end production line.
- The servo motor system.
- Clutch design, make the label tension force more stable, and easy to improve labeling precision.
- Advanced color man-machine interface control system.
- Germany Siemens PLC control, high reliability.
- Use Germany, Japan magic eye.
- Machine structure is simple, compact, easy to operation and maintenance.
- Can add ribbon typewriter, or heat transfer machine and automatic send bottle opener (optional).
Technical Parameters:
| Model
|
IA-200B/MT |
| Voltage
|
220V 50/60Hz |
| Label width
|
30-150mm
|
| Label length
|
30-200mm
|
| Bottle diameter
|
Φ30-100mm
|
| Paper roll diameter (maximum)
|
Φ260mm
|
| Inside of paper roll
|
φ75mm
|
| Label speed
|
10-25 bottles/min
|
| Labeling precision
|
±1mm
|
| Machine size (L *W* H)
|
2110*800*1450mm
|
| Weight | 280Kg
|
