Description
DESCRIPTION:

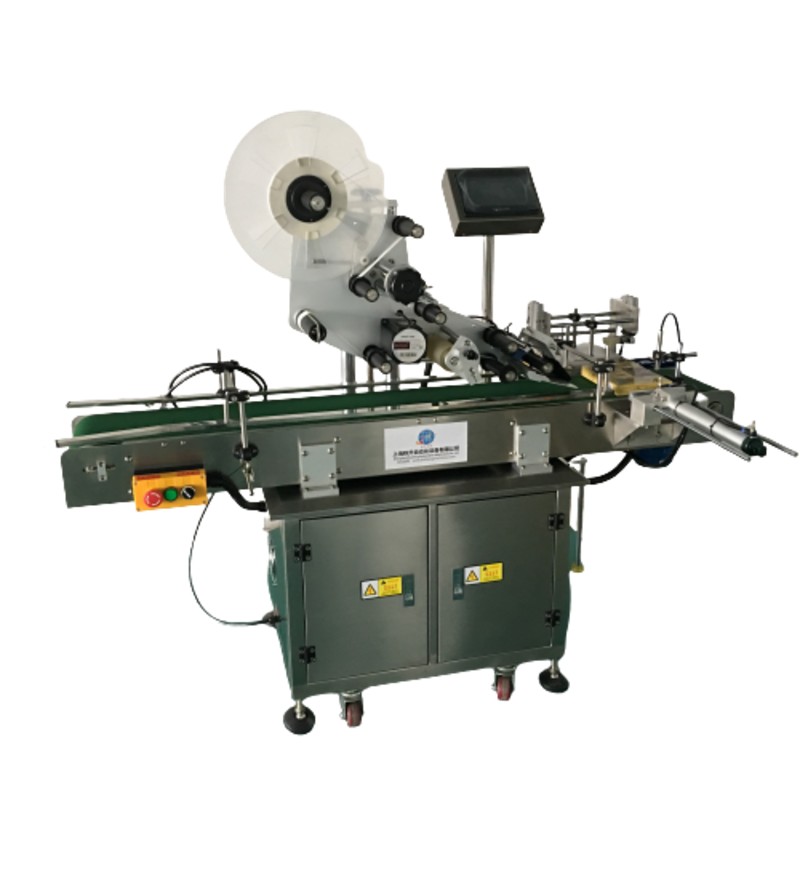

The IA Series Automatic Labelling Machine – Top & Bottom is design for up and down sides labelling on various shapes of bottles and containers, the machine applicable to the medicine, food, daily chemical and other industries in the round, square, flat bottles and other kinds of similar products.
The whole equipment is qualify with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy. The machine is adopting PLC control system combine with LCD touch screen, setting and operation is easy and clear. The labelling position of height can be adjusted as requirement, and the machine can be incorporate with a packing line or operated individually.
*Application industry: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics, printing and other industries; Powerful and versatile (square bottles, flat bottles, oval bottles, shaped bottles, round bottles can be used as usual).
*This machine is only suitable for flat bottle / square bottle / round bottle
TECHNICAL PARAMETER:
Model: IA-6001QH/TBJ
Voltage: 220V 50/60Hz
Power: 1kW
Bottle Type: flat bottle / square bottle / round bottle (half)
Labeling Size:
– Width : 15-220mm
– Length: ≥15mm
Label Size Applicable:
– Width : 20-110mm
– Length: ≥10mm
Labelling Accuracy: ±1mm
Labelling Speed: 10-60 pcs/min (related to product size)
Machine Dimension: 1600L * 700W * 1300H mm
Machine Weight: 250kg
