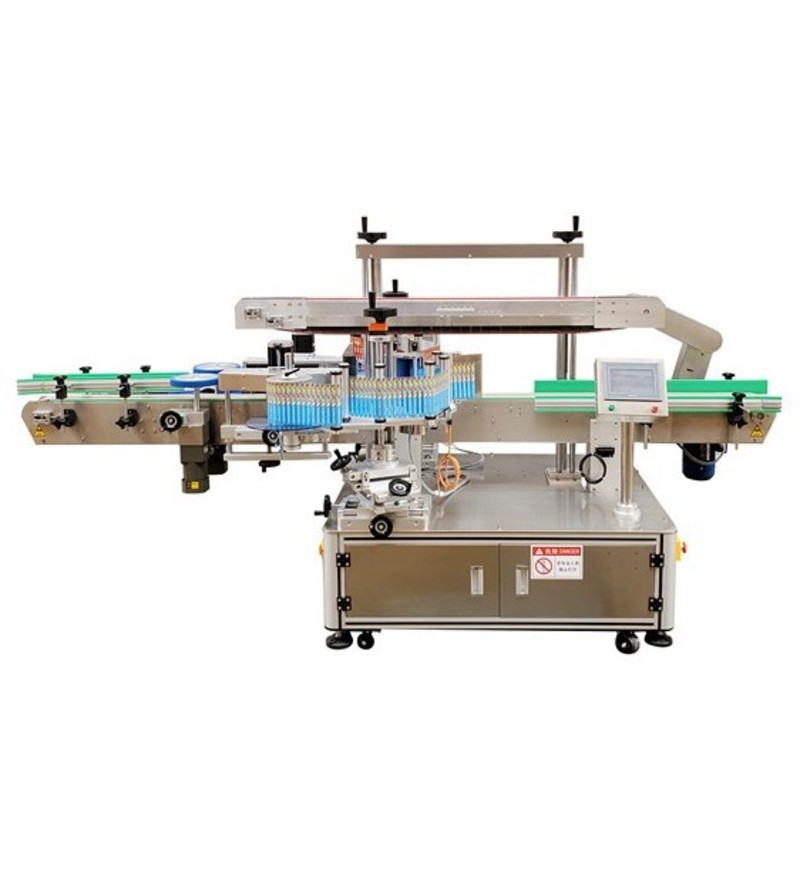

TECHNICAL PARAMETER:
| Labelling Accuracy | ±1mm (errors caused by product and label are not concerned) |
| Labelling Speed | 60-120pcs/min (influenced by the size of the product and label) |
| Product Diameter | 20-100mm |
| Applicable Product | L20-250mm W30-170mm H60-280mm |
| Applicable label | L: 20-300mm W: 20-170mm (height of release paper) |
| Applicable Label RolI | Inner diameter 76mm Outer diameter <300mm |
| Dimension LxWxH | 3000 x 1450 x 1600mm |
| Voltage | 220v 50Hz |
| Weight | About 600kg |
STANDARD CONFIGURATIONS:
| Major Mechanical Configurations | |||
| Name | Picture | Main Material | Function |

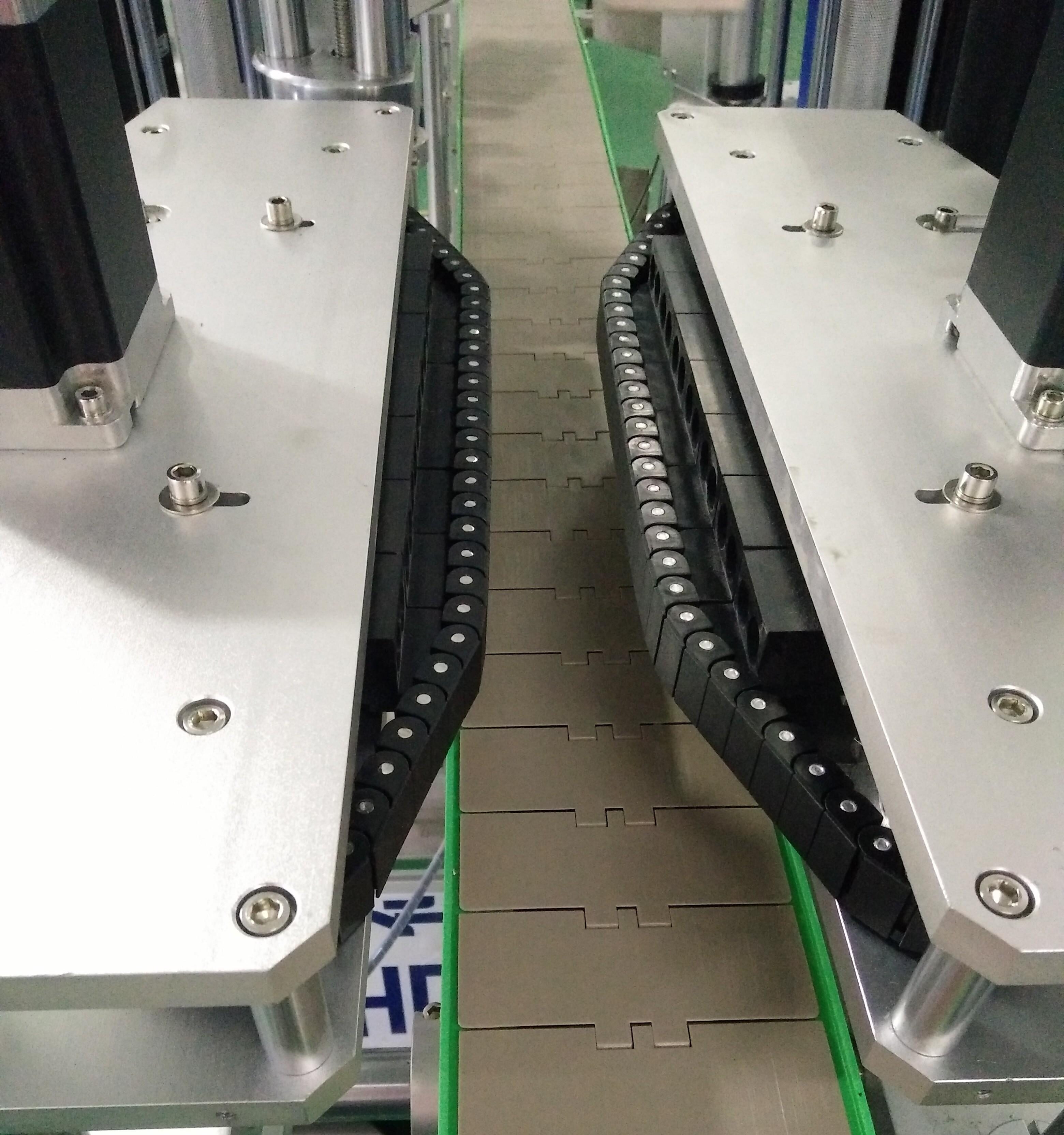

| Conveyor Belt |  |
Metal plate | Transmit the product
|
| Spacing Wheel |  |
High-density foam Aluminum alloy | Separate and keep certain distance between every 2 bottles |

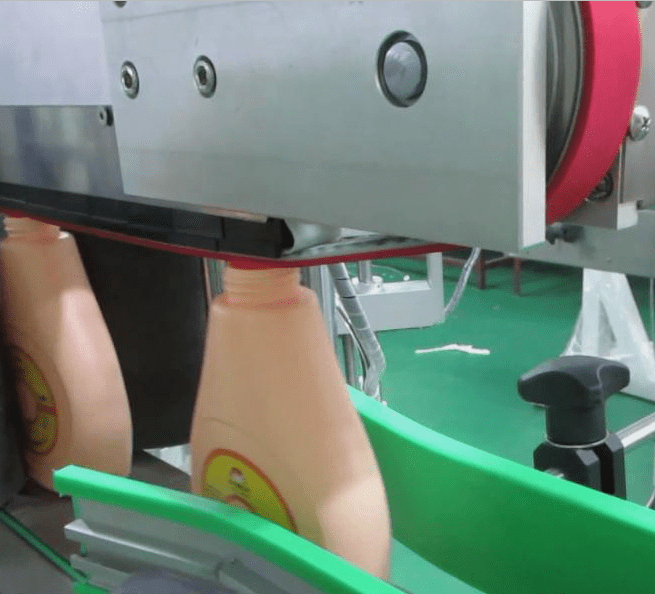

| Guiding Device |  |
Stainless Steel | Correcting the transmission direction, keep the bottles go straightly. |
| Top Belt Device |  |
Stainless Steel | Fixing the product from the top,keep it moving steadily. |
| Label-peeling Plate |  |
Stainless Steel | Label be peeled and stuck here. |

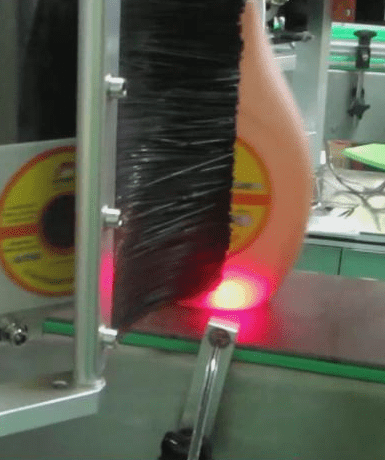

| Strengthening Device |  |
Stainless Steel
High Density Sponge |
Press the bottles to make label stick tighter |

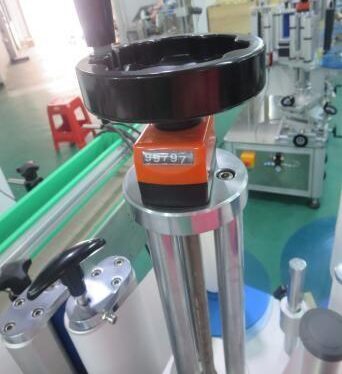

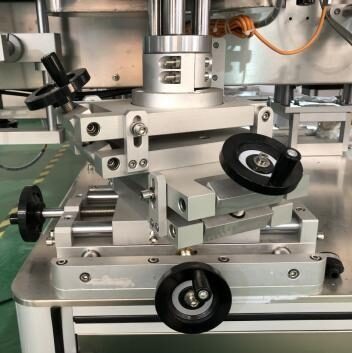

| Adjustment Base |  |
Stainless Steel | Adjust the labeling head in vertical, horizontal direction and angle to adapt to bottle shape |
| Position Indicator |  |
Stainless Steel | Indicate the position of the labeling head by specific numbers. |

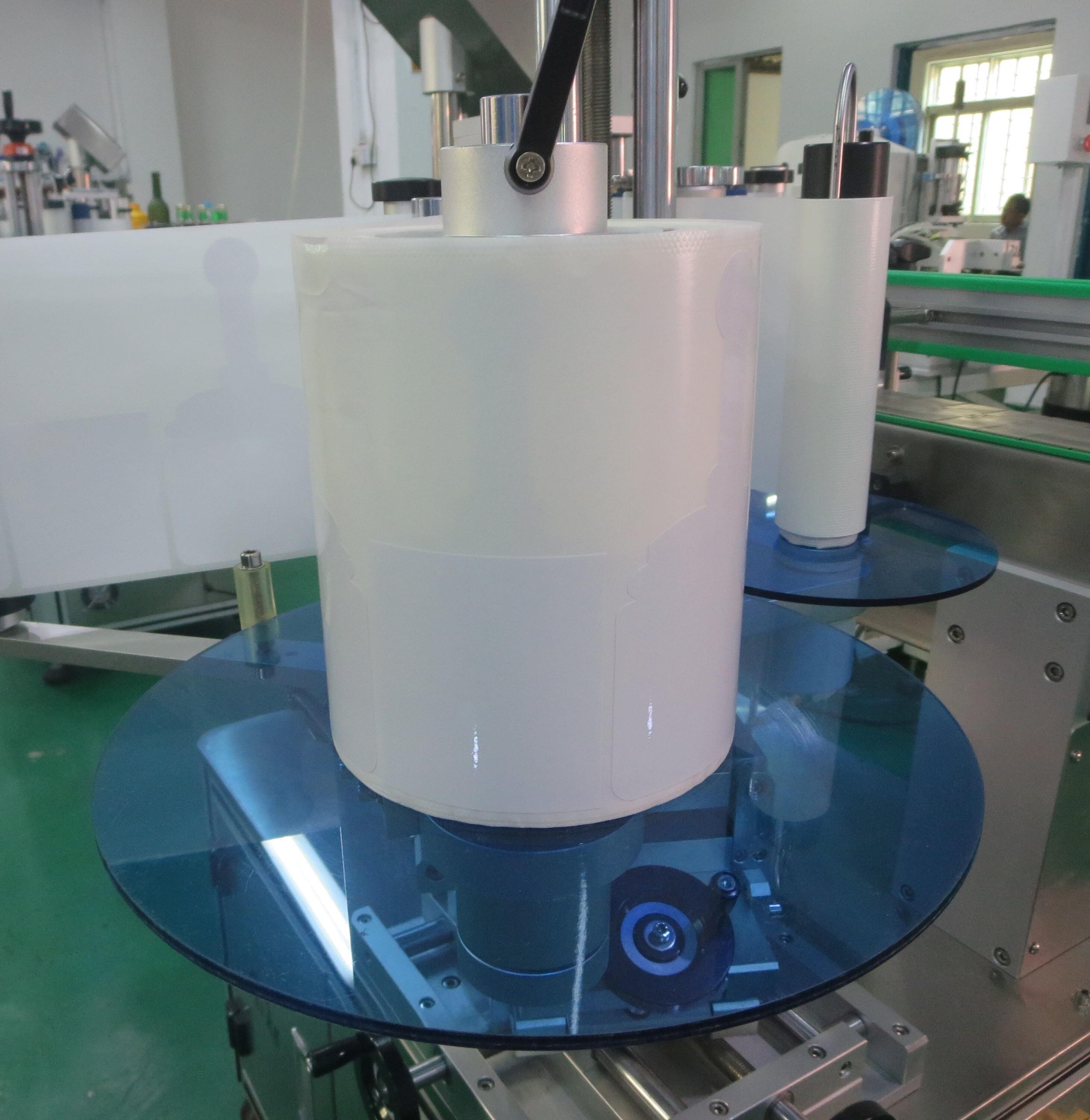

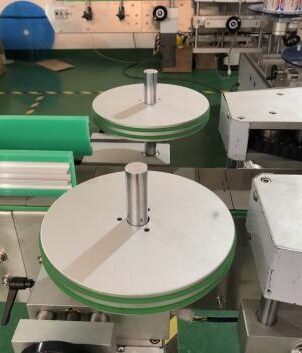

| Label Tray |  |
Aluminium alloy
Acrylics |
Place the label roll, the tray roll to send the label out. |

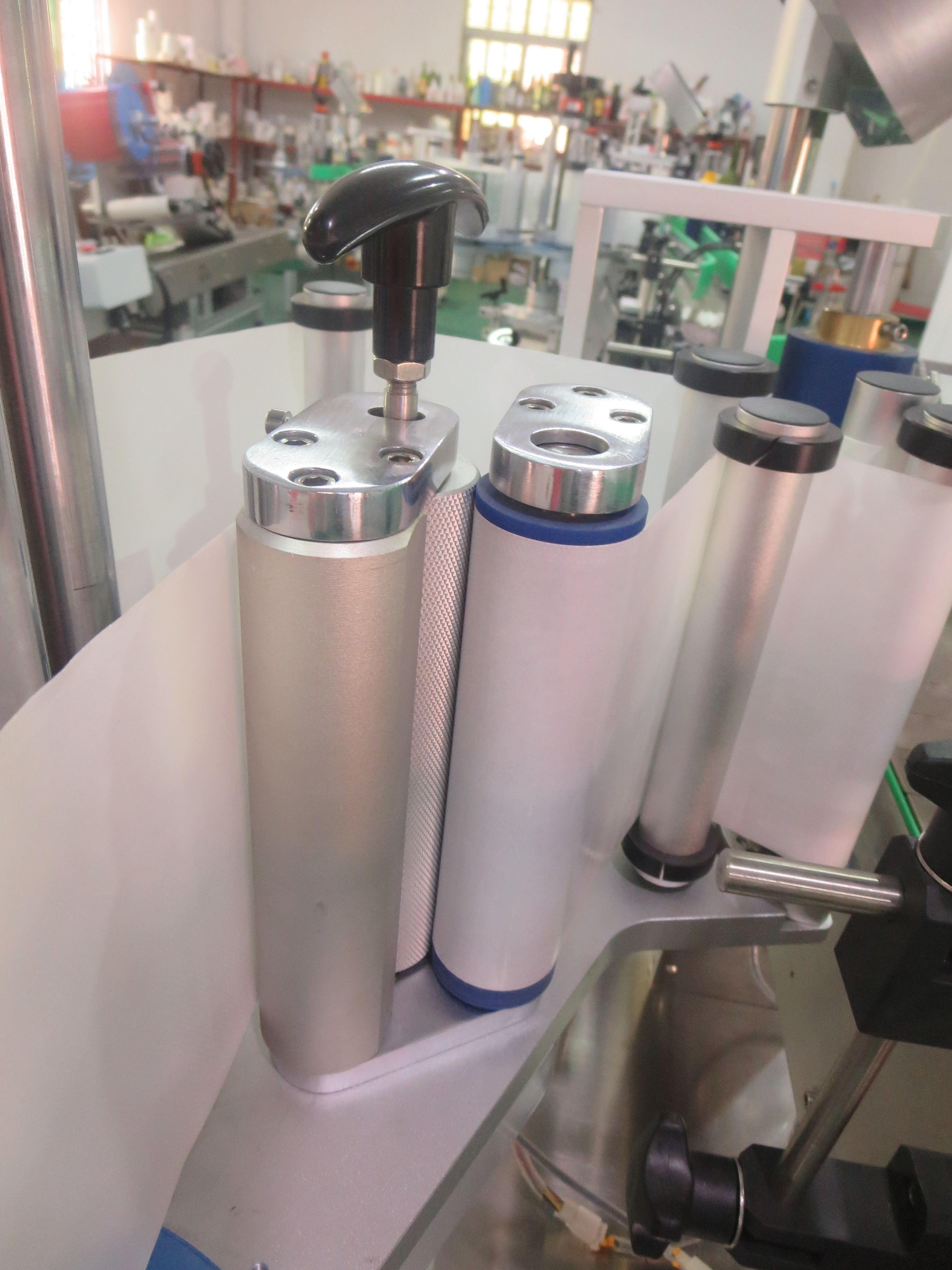

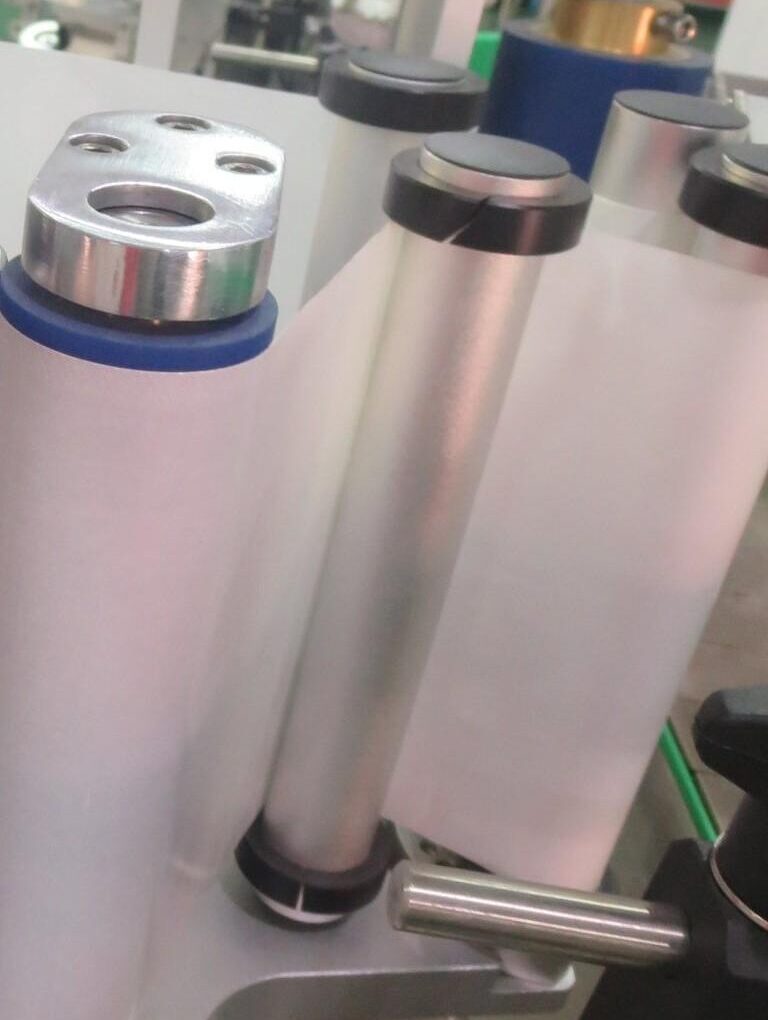

| Roller |  |
Aluminium Alloy | Maintain the tension of the label |

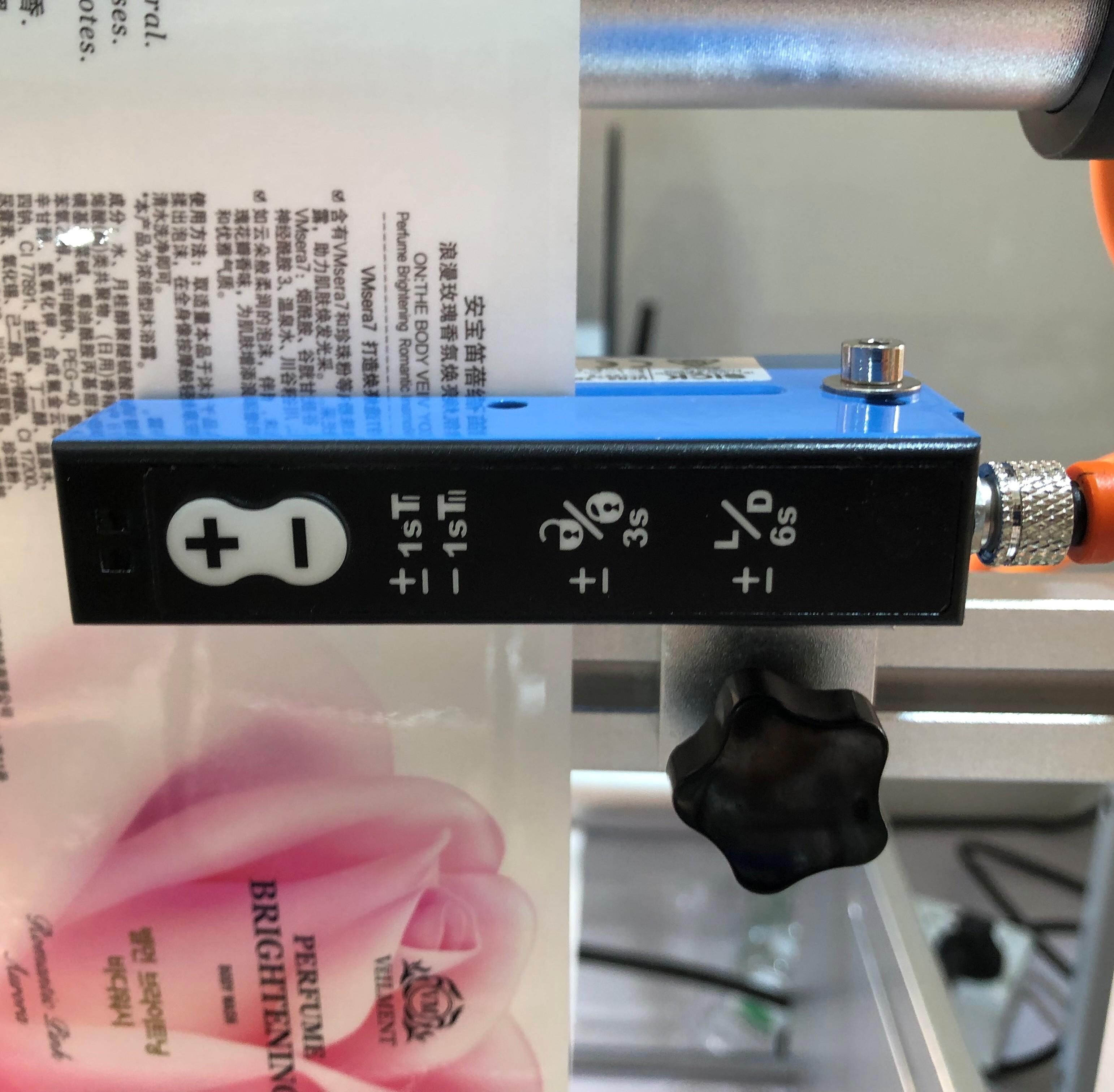

| Front Label Sensor |  |
Transparent Sensor
(German Sick) |
Detect the label to control the label be peeled one by one;for opaque label. |
| Traction Device |  |
Aluminum alloy; Rubber covered roll | Driven by a stepper motor, pull the label reel while labeling |

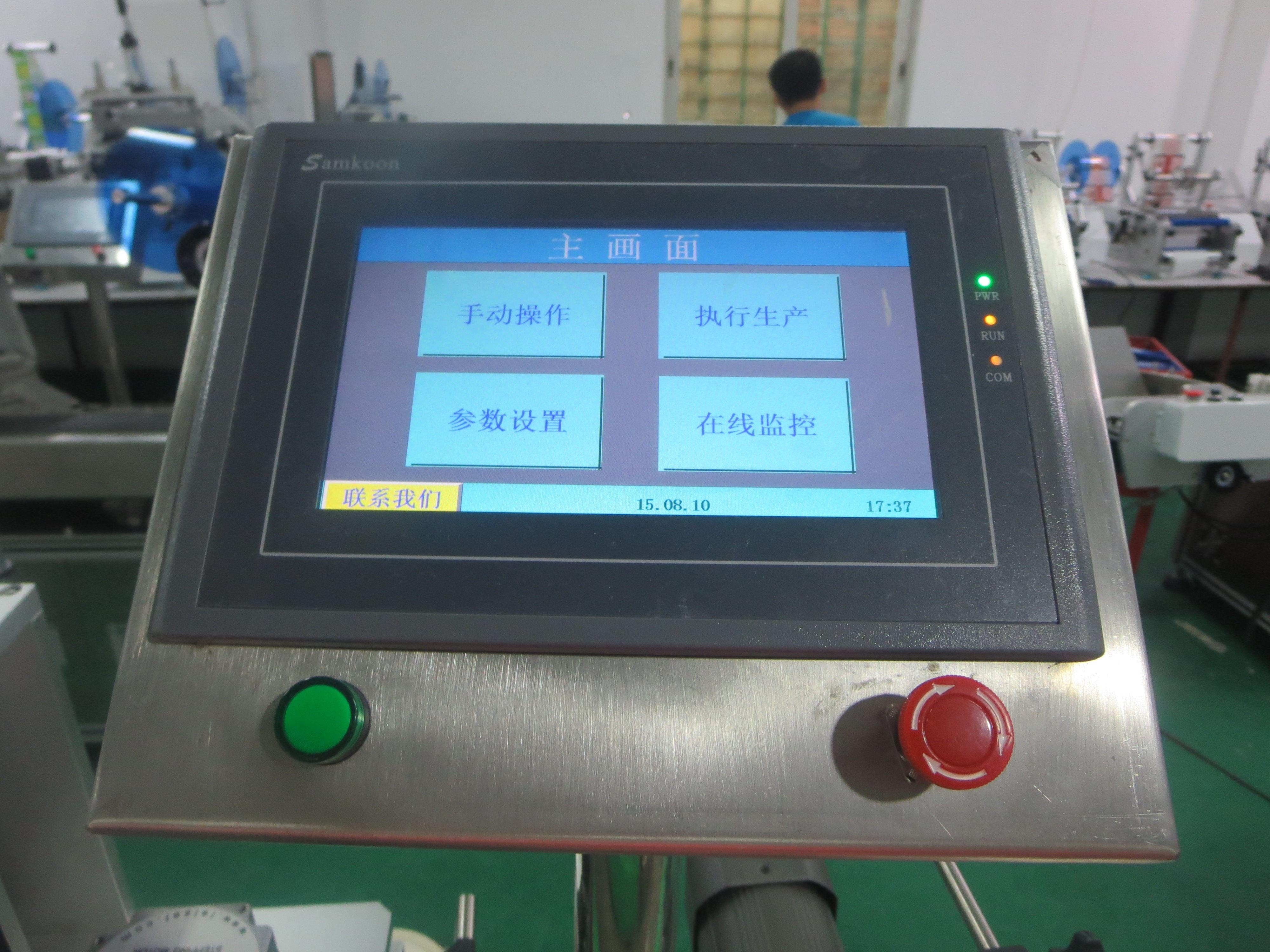

| Touch Screen |  |
Control machine and set production parameter | |

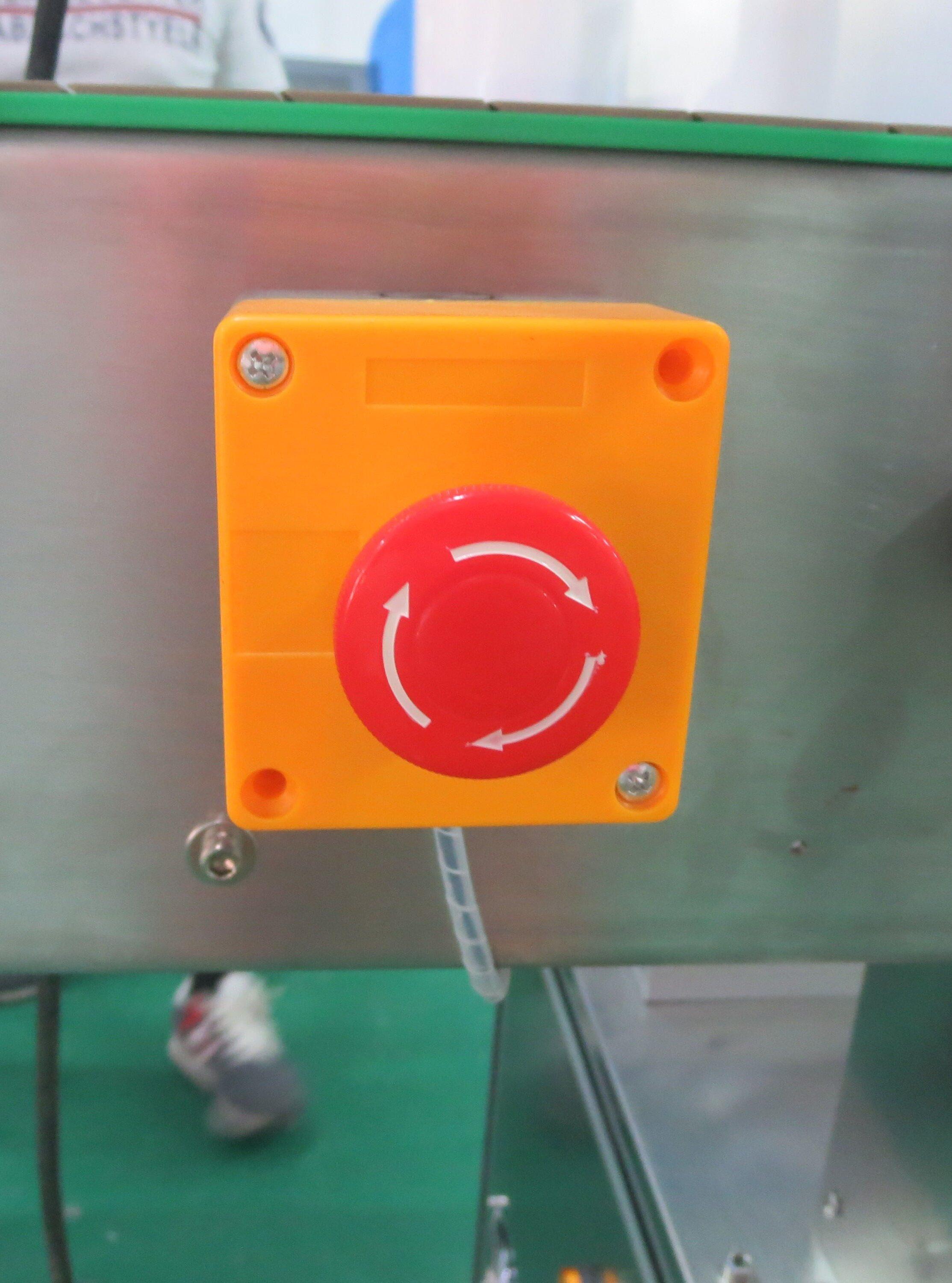

| Emergency Stop Switch |  |
Stop the machine immediately if the machine runs wrong. | |
