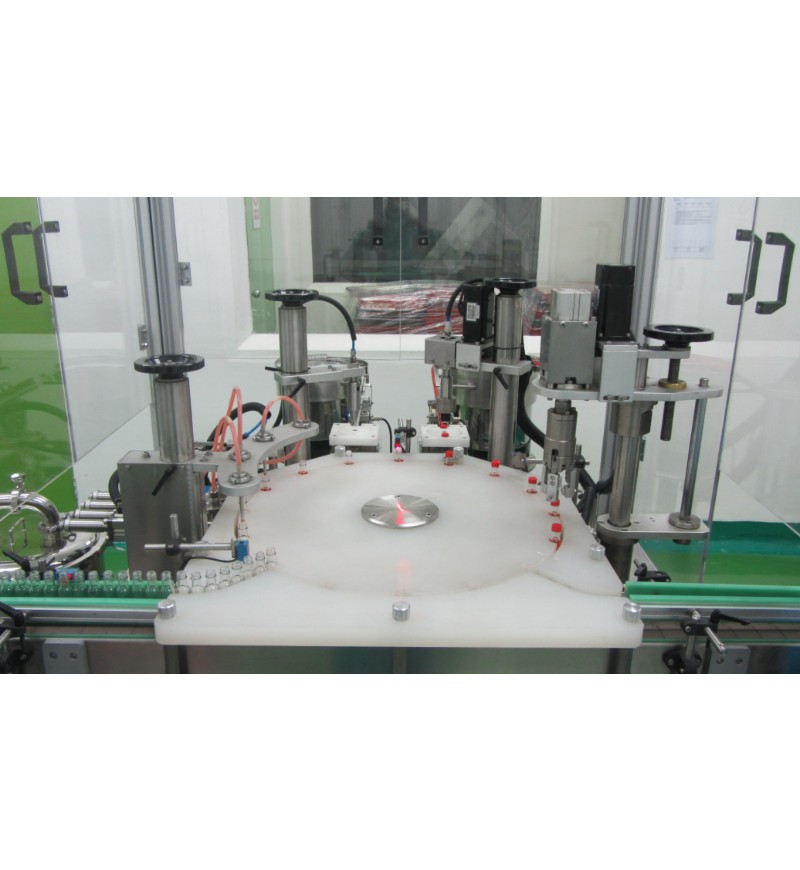

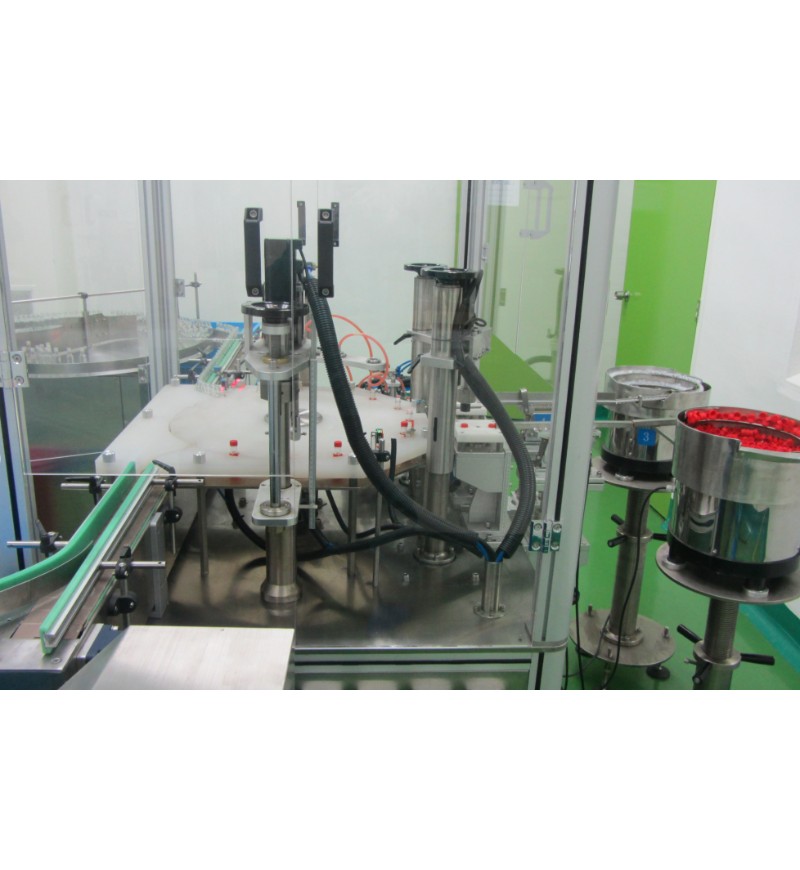

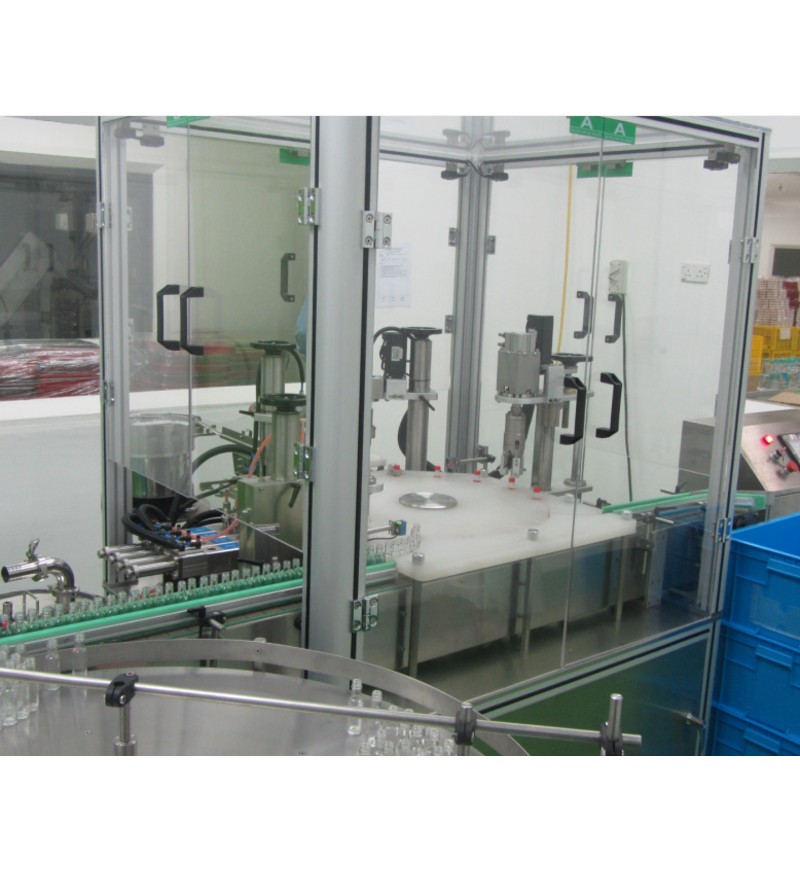

AUTOMATIC ROTARY LIQUID FILLING & CAPPING MACHINE

Brief Introduction

This machine is the new machine which in these years we design and make it. can set number of steps peristaltic pumps with microcomputer to perform metering filling (special occasions with ceramic pump).

It has the functions: automatic filling, automatic plugging and capping. The machine is equipped with special internally unique mechanical hand. These can ensure the plug and the out cover to enter the bottle, so that it achieves fully automatic.

The machine fully meets with new GMP requirements.



  1. Be settled by microcomputer, high precision, easy operate.
  2. Filling system has sucked back, no dropping or leakage.
  3. Use the mechanical hand to plug and press the cover.
  4. No bottle, no filling, no plugging and no capping.

Machine Process

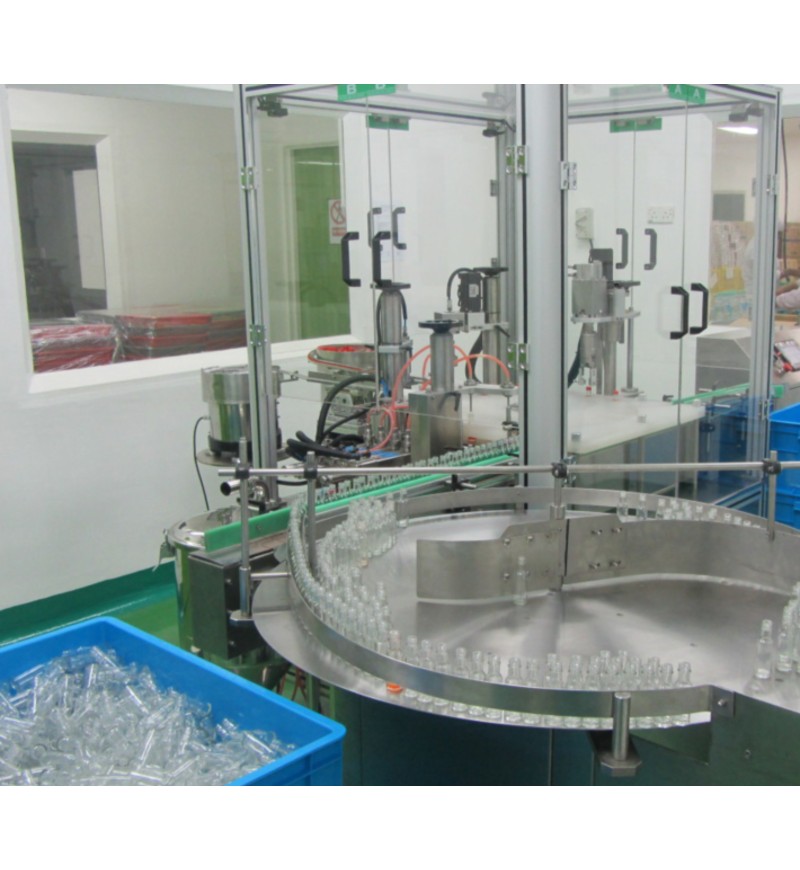

  1. Automatic Turntable Feeder (Optional)

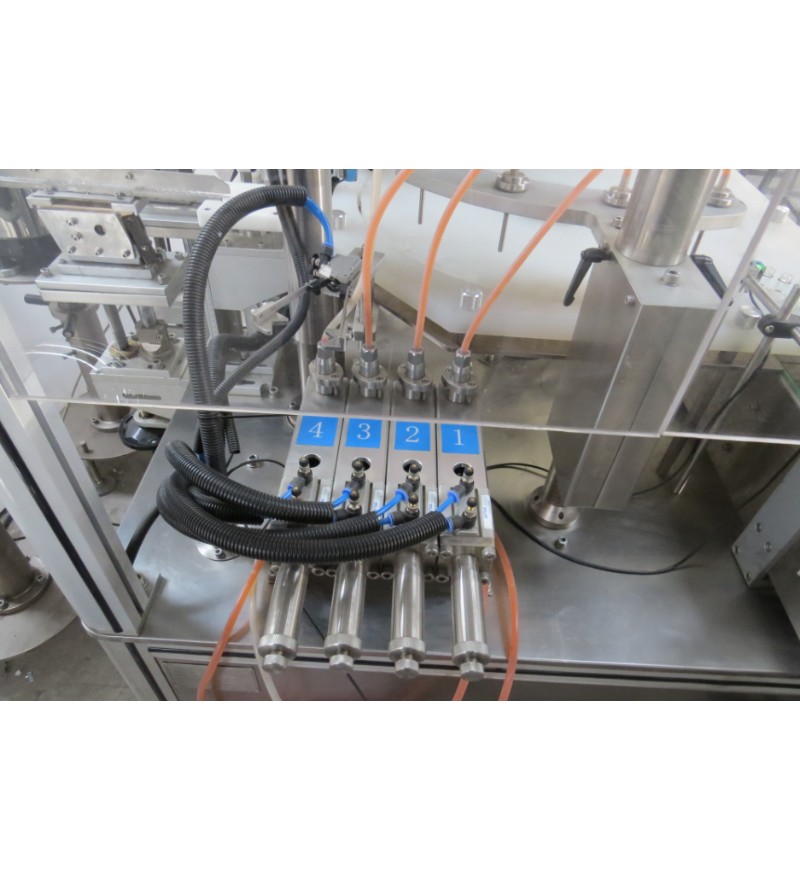

  2. Automatic Peristaltic Pump Filling (4 Heads)
  3. Automatic Plugging (2 Heads)
  4. Automatic Capping (1 Head)

Technical Parameter

Model

IA-4F2C/YL-A
Voltage

220V    50/60Hz

Gas source

2 m3/h   0.4-0.8Mpa

Power

1.0Kw

Filling Heads

4

Capping Heads

2

Filling Volume Range

10-50ml(adjust)
Capacity

30-40 bottles/min

Automatic Plugging Rate

≥99%

Automatic Capping Rate

≥99%

Filling Accuracy

≤±0.5%

Machine size (L *W* H)

2400*1200*1500mm
Weight

500Kg

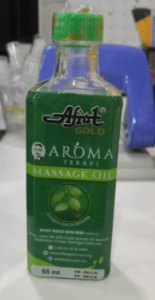

Product Application
