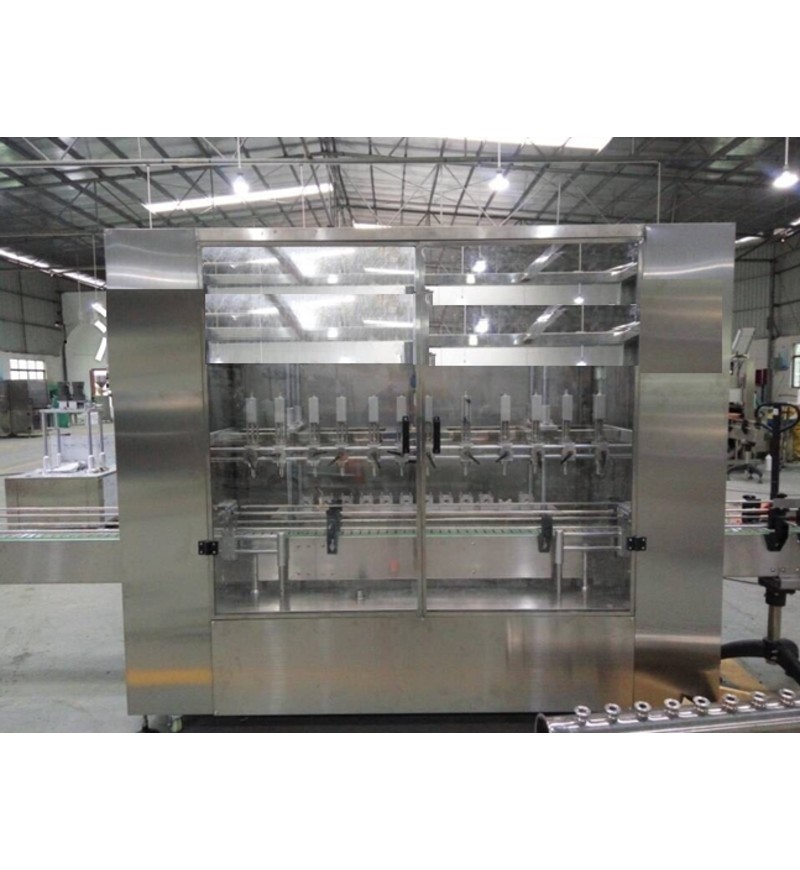

AUTOMATIC 4 HEAD LIQUID FILLING MACHINE (FLOW METER)

SKU IA-4T/ZLGZJ-4T Category Tag

Features

  • The flow meter performs filling quantitatively, with high accuracy and a wide range of adjustable doses, suitable for all kinds of liquids.
  • The filling system is a flow meter, which is convenient for cleaning and disinfection and stable production.
  • Frequency conversion speed regulation, automatic display counting function.
  • The filling execution system has a set shrinkage function without dripping.
  • This machine can automatically complete bottle feeding, metering and filling, and can be equipped with production lines such as automatic stoppering, capping, labeling and other complete functions.
  • The whole machine is designed according to GMP requirements.

Technical Parameters

Model IA-4T/ZLGZJ
Voltage 380v, Three Phase
Power 1.5 Kw
Filling Range 10-30Litre
Filling Speed 300-400bottle/hour
Loading error ≤±1-2%
Automatic cover rate ≥99%
Noise ≤70dB
Weight about 500kg
Dimension 4000*1300*1500mm
Material quality the contact material is 304 stainless steel, the frame is 304

Product Application
