Description
FEATURES:
- Suitable for masks, medical supplies, sanitary supplies, food and other products.

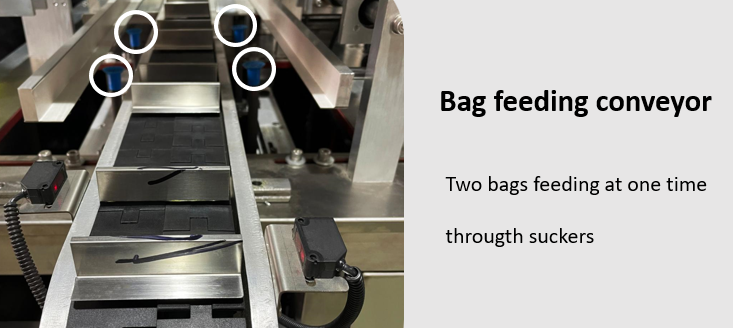

- Automatic bag feeding, material feeding, bag sealing photoelectric correction, no burrs, fault forming.

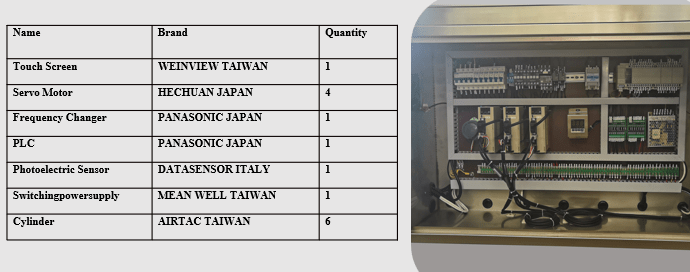

- Adopt Panasonic PLC imported from Japan, improve accuracy and high stability of equipment.

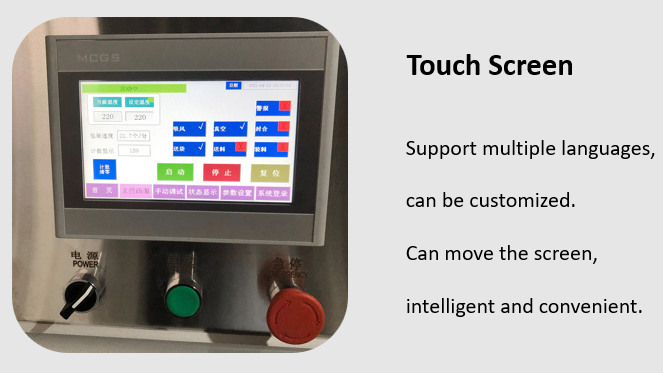

- PLC touch screen and servo motor control. Multiple language of Spanish, French, Korean, Russian, Japanese, Arabic and other local languages.
- 304 Stainless steel body, good appearance. Low operation and maintenance cost.
- Intelligent PLC temperature control.
- Automatic alarm reminder, batching and stacking.
TECHNICAL PARAMETER:
| Model | IA-200/HY |
| Brand | IACHIEVE |
| Capacity | 30-50 bags/min |
| Bag type | Four side sealing |
| Product size | According to product |
| Bag Size | According to product |
| Film Material | PE/OPP PE/PET PAPER |
| Power | 6.5kw |
| Voltage | 415V 50Hz |
| Suitable air compressor | 1.0/101 > 0.5-0.8M3/MIN 300-500L/min |
| Weight | 900kg |
| Dimension | 4500 x 800 x 1250mm |

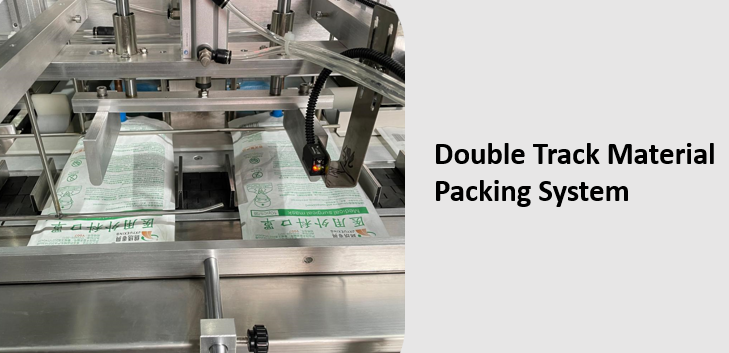

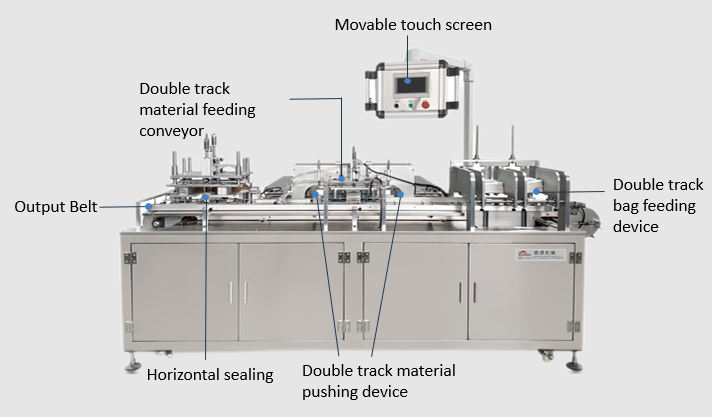

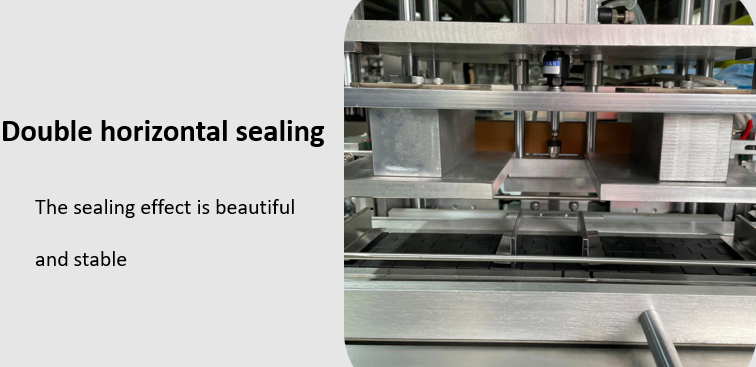

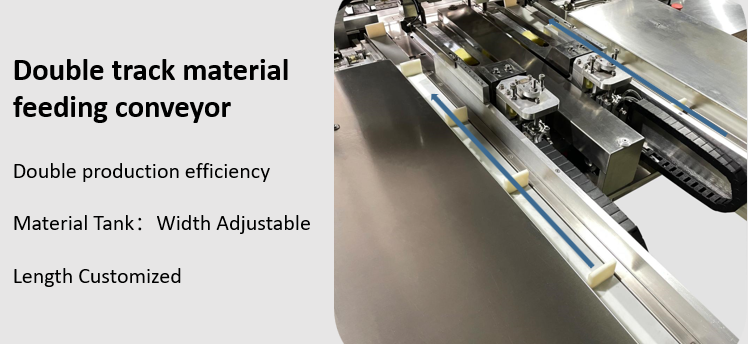

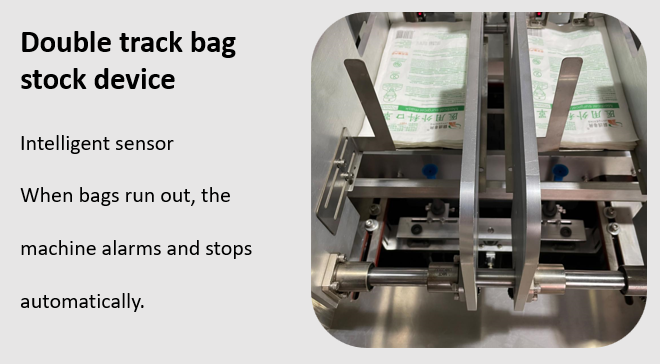

OTHER MACHINE VISUAL:

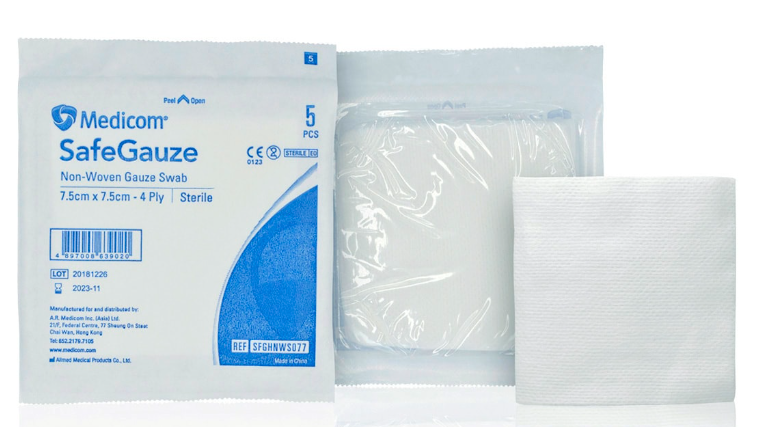

PRODUCT APPLICATION:
