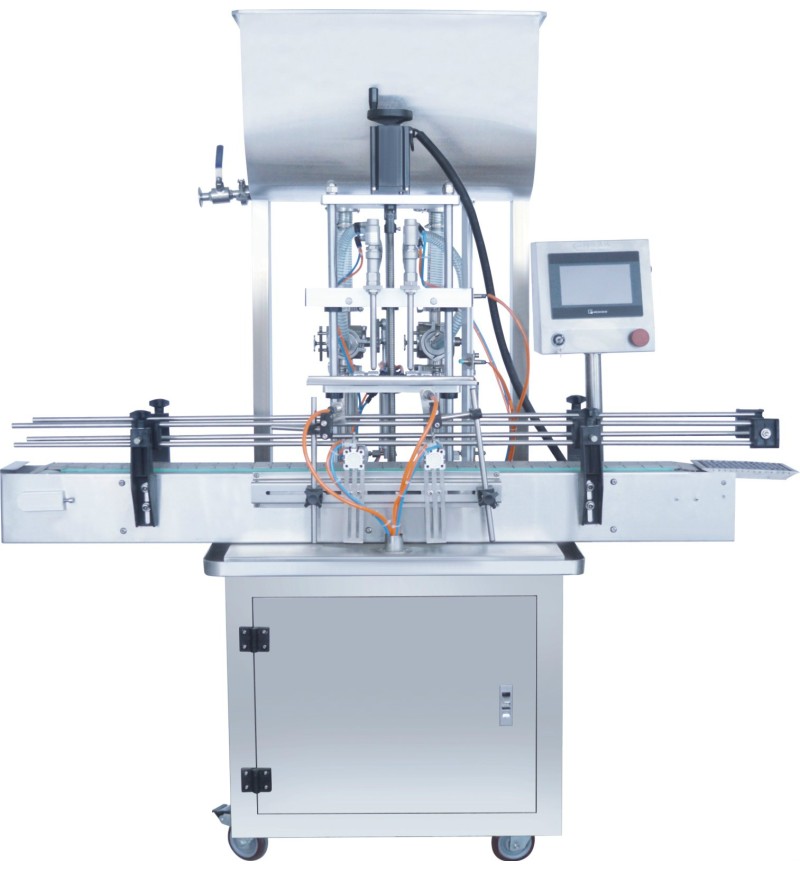

AUTOMATIC PASTE TYPE FILLING MACHINE – 2 NOZZLE

SKU IA-1000L/GCGA-2 Category Tag

Automatic Viscosity/ Paste Type Filling Machine

This machine is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labelling machine in bottling line, fully complete and intelligence control advantage.

Characteristics

Adopt volumetric piston pump, pneumatic control ss check valve to filling various kinds of liquid from light to medium heavy.
Pneumatic control piston pump, easy adjust filling volume.
Auto shut on/off filling nozzle, prevent drop while filling.
Automatic tray collector under filling nozzle, to avoid dropping on bottle.
Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts.
Frequency speed control, no bottle no fill intelligence.
Whole machine designed and manufactured accordance to GMP regulation.

Technical Parameter

Model IA-1000L/GCGA-2
Voltage 220V Single phase
Air pressure 0.5 – 0.7 mpa
Length of conveyor 2m
Filling volume range 100 – 1000 ml
Filling head 2
Filling speed 10 – 16 bottles/min
Machine size (L*W*H) 2000 * 1050 * 1900 mm
Weight 250 kg

Product Application
