Description
Technical Parameters:
| Model No | IA-200A/GCGA |
| Voltage | 415v , 3 Phase |
| Power | 2.3 Kw |
| Packing volume | 10 – 1000 ml |
| Packing bag size | Bag width : 80 – 250 mm
Bag length : 100 – 400 mm |
| Packing speed | 10 – 30 bags/min |
| Air consumption | ≤0.6m³/min |
| Precision | ≤ ±1% |
| Dimension (LxWxH) | 1560 x 2300 x 2430 mm |
| Gross weight | 1800 Kg |

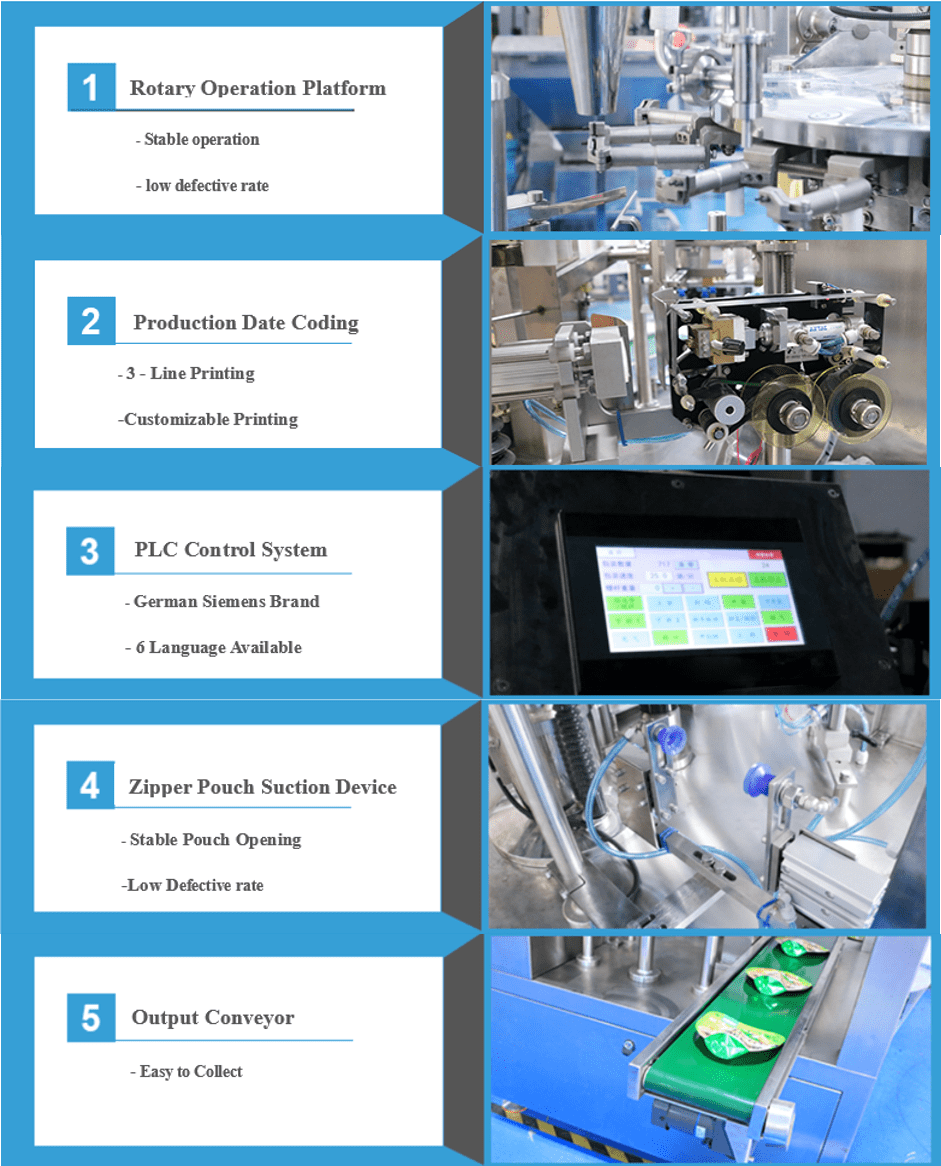

Operation Procedure

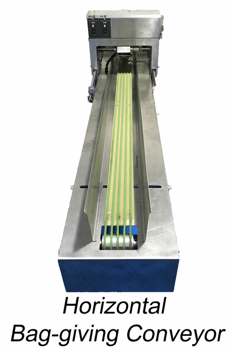

- Bag-Giving
- Coding

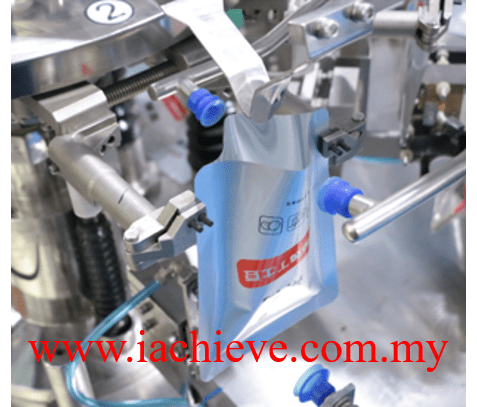

- Opening
- Filling A
- Filling B
- Heat sealing A
- Heat sealing B
- Forming & Output

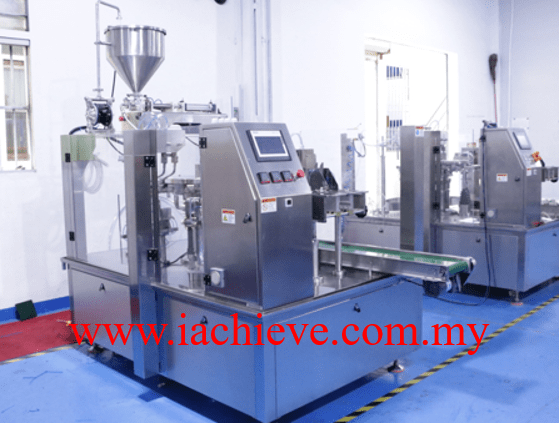

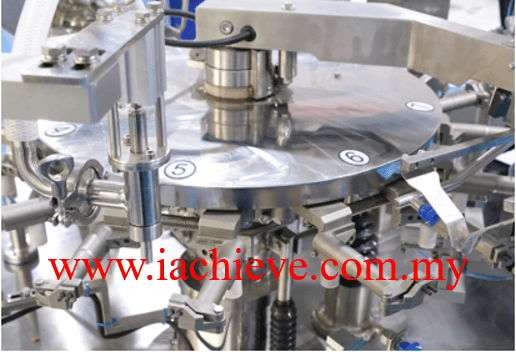

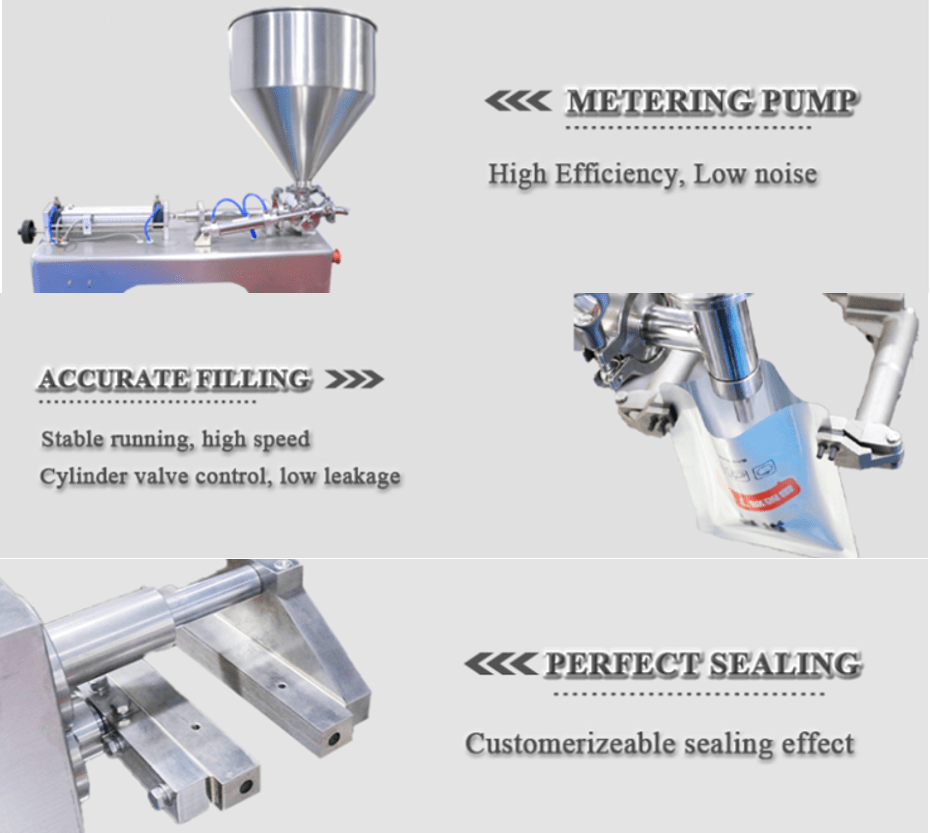

Product Display
In case some of the material will be sticky or causticity, will influence the durability.

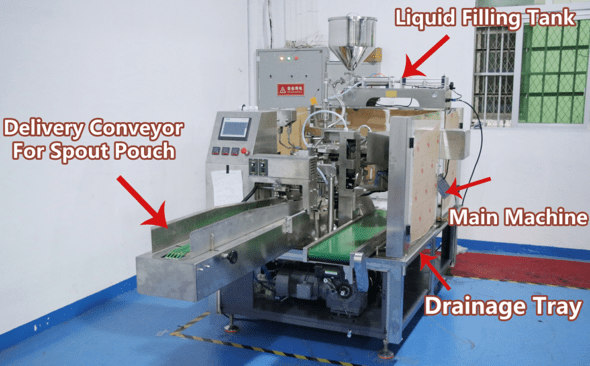

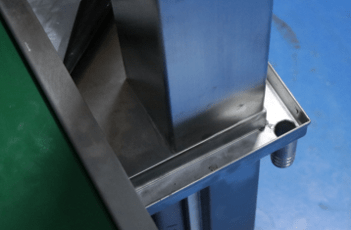

The machine body is surrounded by drainage tray.
Conveniently to directly clean with water after operating.

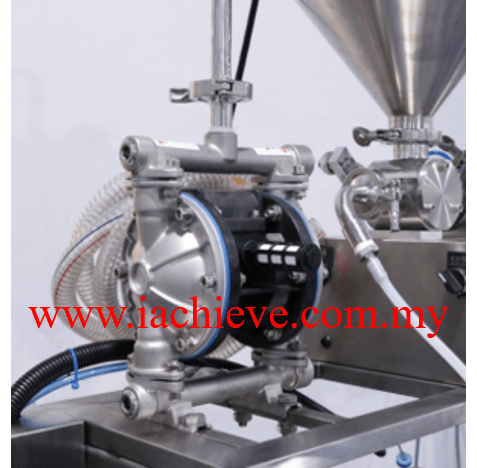

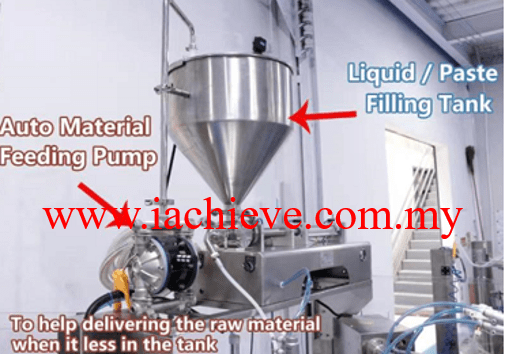

Optional material feeding pump
- Can be automatic directly pump the raw material from the tank when the filling tank lower than set filling level, and stop pumping at full level.
