STAINLESS STEEL HOMOGENIZER TANK IA-200L/JCG-H

SKU IA-200L/JCG-H Category

Application

The Homogenizer tank is made of centrifugal force generated by a high-speed, powerful rotating rotor, which breaks the material from the radial direction into the narrow and precise gap between the rotor and the rotor, and is subjected to centrifugal extrusion and impact to make the material dispersed and mixed, emulsification. The machine has the advantages of compact structure, small size, light weight, easy operation, low noise and stable operation. Its biggest feature is that it does not grind the medium in the production process, and combines high-speed shearing, dispersing, homogenizing, mixing and crushing.

Role of Homogenizer Tank

The Homogenizer tank can make the material high-speed staged and emulsified, so that various materials can be uniformly mixed to obtain a uniform liquid. At the same time, the emulsification tank also has the functions of heating, cooling, heat preservation and stirring. The tank body design has material inlet, discharge port, pure water port, etc. The process nozzle provides the full range of conditions for the emulsification process.

Technical Parameter

Model IA-200L/JCG-H
Brand IACHIEVE
Volume 200L
Pot Diameter 520
Speed 2900r/min
Material SUS 304
Requirement With heavy duty wheel, with homogenizer
Voltage 415v 50Hz
Weight 200kg
Dimension 1250 x 1100 x 1450mm

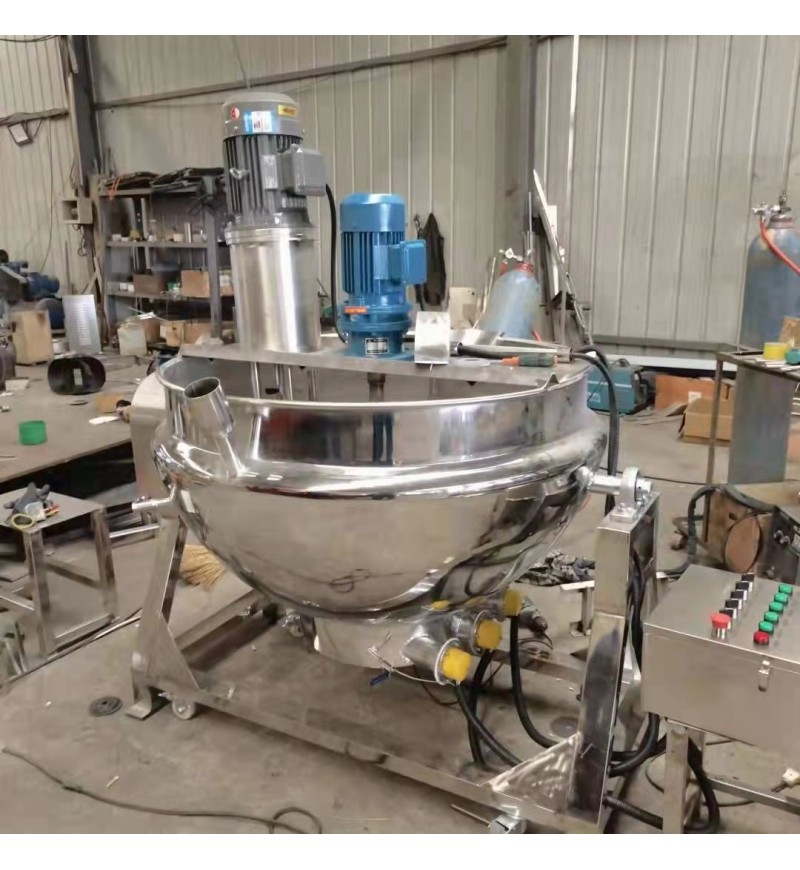

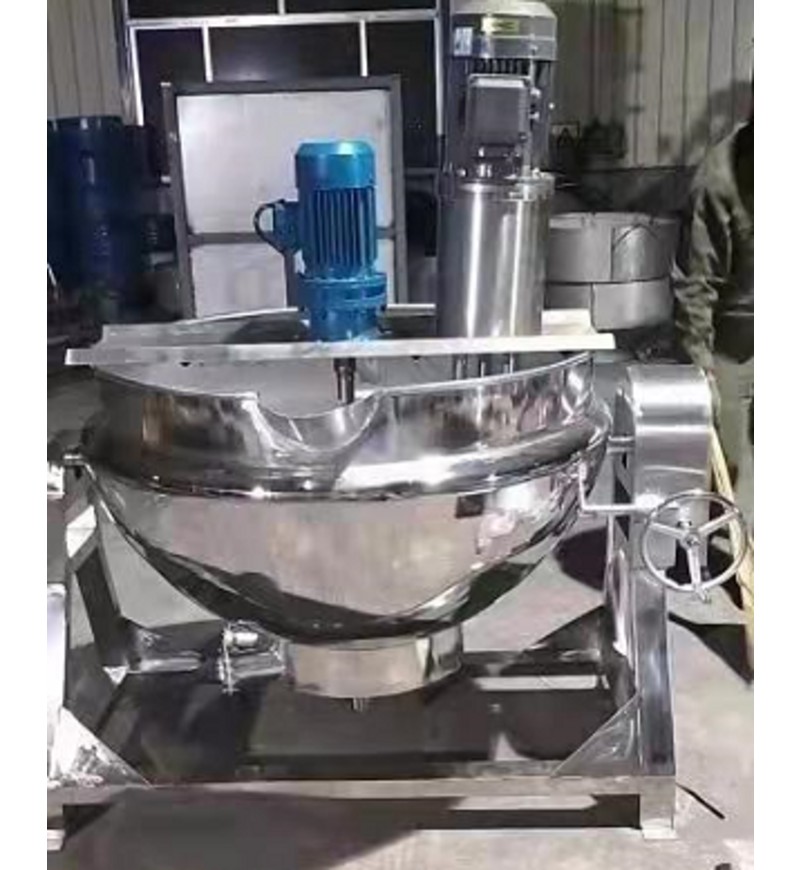

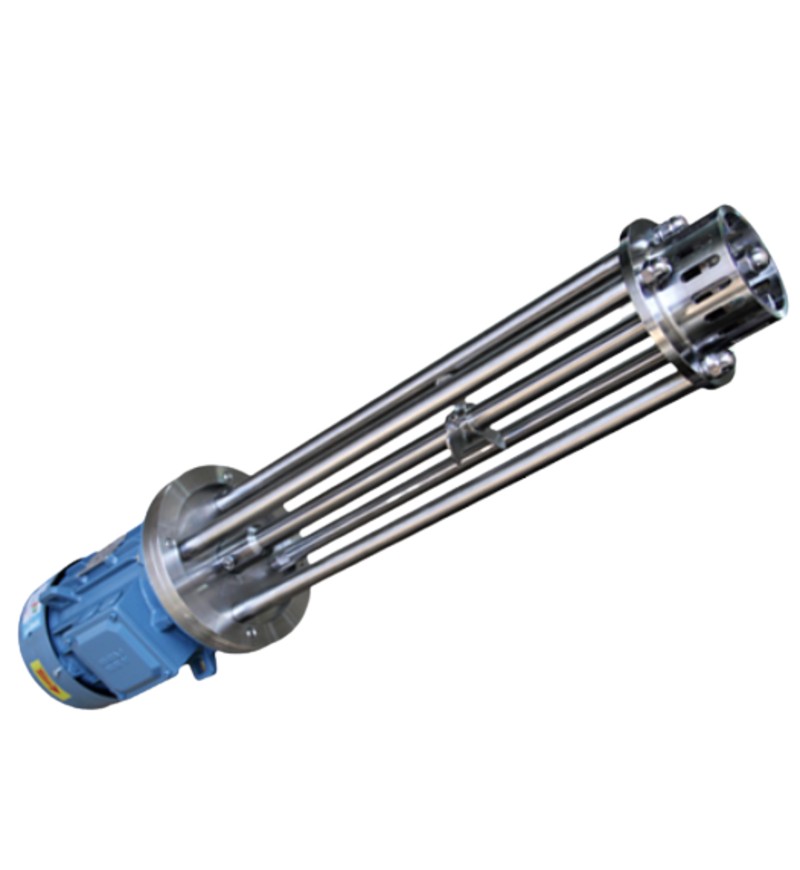

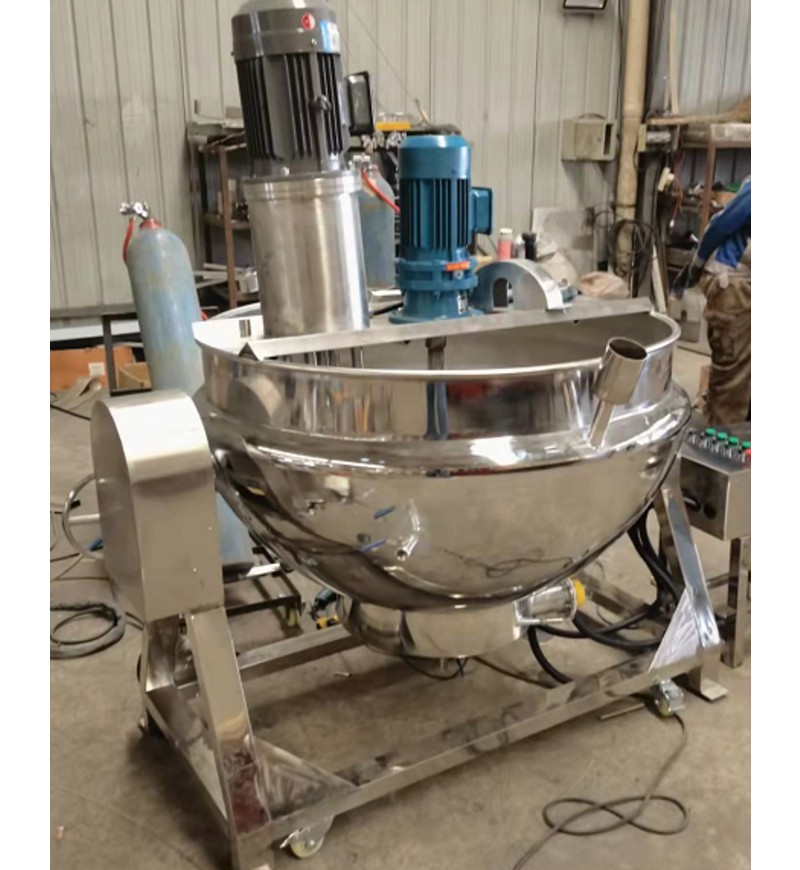

Other Machine Visual

Product Application

~ Food and beverage: dairy products, ice cream, chocolate, soy milk, juice, jam;

~ Chemical industry: Lubricating oil, grease, heavy oil emulsification, diesel emulsification, disinfectant, insecticide, photosensitive latex, rubber slurry, resin pulp, thickener, flavor, silicon material, carbon black, magnesium oxide, titanium dioxide, Anti-adhesive agent, mold release agent, antifoaming agent, sealant, etc.;

~ Cosmetics industry: detergents, conditioners, shampoos, body lotions, perfumes;

~ Pharmaceutical industry: injection, drug emulsion, medicine cream, health care products, pharmaceutical preparations;

~ Paper industry: Pulp, adhesive, injection, resin emulsification.
