Description

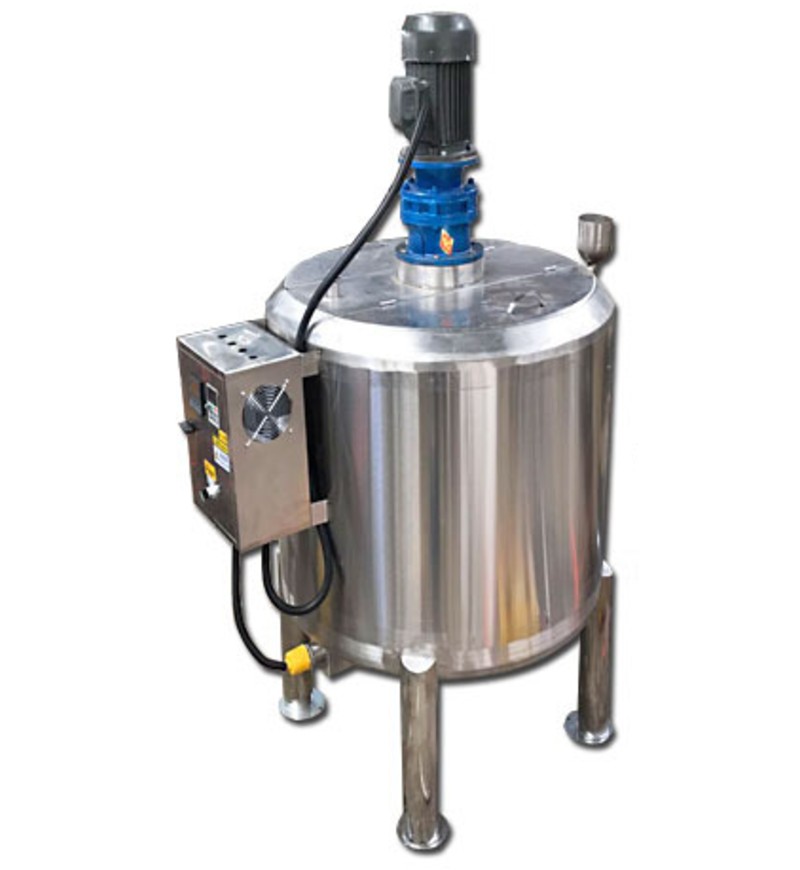

Electric heating, upper and lower standard elliptical heads.
+6018-971 3633
Puchong, Selangor
+6018-971 3633
Puchong, Selangor
Electric heating, upper and lower standard elliptical heads.
| Type | Mixing and heating tank |
| Voltage | 380v, 3 Phase |
| Dimension (LxWxH) | 1100 x 1100 x 1800 |
| Material | 304 |
| Inner Liner | 3mm （ SS304 ） |
| Jacket | 3mm (SS304) |
| Outsourcing | 2mm (SS304), polyurethane foam insulation material |
| Top seal headband stirrer | Motor power 0.55kw, 36rpm |
| Electric heating power | 9kw |
| Inlet and outlet | 38mm |
| Discharge port | 350mm above the ground, equipped with respirator,
Temperature control box (respectively control 1.5KW motors, heating rods are automatically controlled Temperature), sight light sight glass, sandwich sight glass, hand hole, feed inlet, Discharge port, interlayer inlet, interlayer outlet, breathing port, spare port, etc. |
| Material | SUS 304 |
| Diameter | 230 |
| Inlet and outlet | 38mm |
| Filter mesh number | 100 mesh |
