Description
PERORMANCE FEATURES:

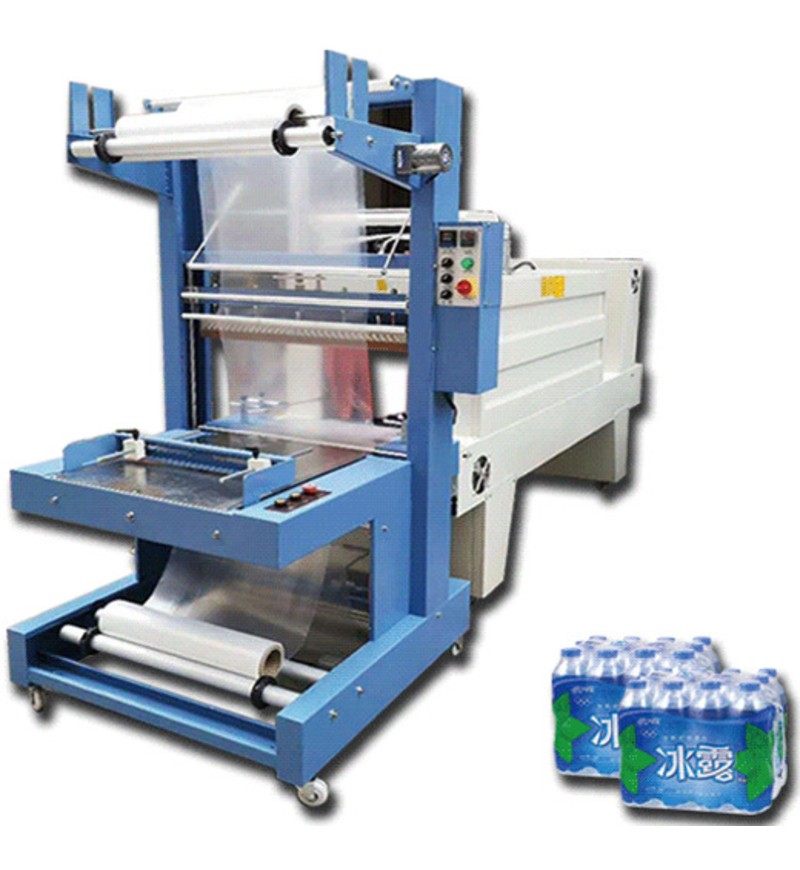

- The semi auto sleeve mineral water bottle shrink packager PE film shrink wrapping machine is widely used for bottle, carton electronic appliances, stationery, books, music, hardware tools, daily necessities, medicine, cosmetics, beverages, fruit, mark label items such as packaging. Comply with the regulations of food health law
- The semi auto sleeve mineral water bottle shrink packager PE film shrink wrapping machine adopts Quartz tubeheating which can continuously produces heat, cooperate with the strong wind circulation, make the temperature of the heated more evenly
- The electronic constant temperature control system, make furnace temperature stability, energy saving.
- The shrink furnace temperature reached the set temperature, the machine will automatically stop heating. When the shrink furnace temperature is lower than the set temperature, the machine will automatically start heating device, it is energy conservation and environmental protection.
- Independent temperature control, independent speed controller, more accurate temperature control, shrinkage effect is more perfect, and shrinkage furnace is convenient maintenance, so as to prolong the service life of the machine.
TECHNICAL PARAMETER:
| Model | IA-6540FL | IA-6040E |
| Power supply | 1.5kw | 18kw |
| Voltage | AC220V 1/3 PH 50/60Hz | AC220V /380 3PH 50/60Hz |
| Max packing size LxWxH | 400 x 400 x 380mm | W500 x 350mm |
| Tunnel LxWxH | / | 1800 x 600 x 400mm |
| Blade length | 600mm | / |
| Air temperature | – | 0-300℃ |
| Table height | – | 820±50mm |
| Packing speed | 5-8 minute | 0-25m/min |
| External air source | 5-7kg/cm2 | / |
| Shrink film | PE | PE |
| Machine size | 925 x 1040 x 1920mm | 2800 x 950 x 1750mm |
| G/N Weight | 350/380kgs | 625/565kgs |
