Description

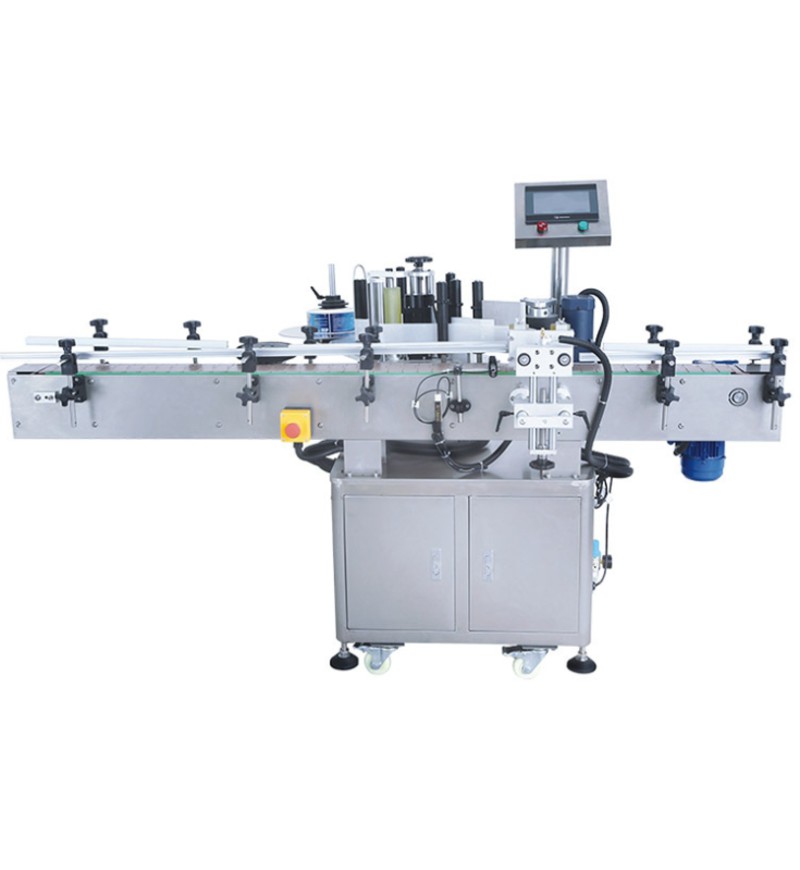

DESCRIPTION:
* Industry: Widely used in food, toys, daily chemical, electronics, pharmaceutical, metal, plastics and other industries;
* The use of labeling bottles standing, can stand-alone production, can also be connected unmanned labeling production line;
* Device main material made of stainless steel and high-alloy, the overall structure of a solid, nice;
* The use of standard PLC + touch screen + servo motor + standard sensor electronic control system control, high safety factor, easy to use, simple to maintain;
* With production counting function, the production of digital set prompts.
Instructions:
* Core works: sub-bottle body after the product separately, the sensor detects the product passing back control signal to the labeling system, in place corresponding motor control system and sends the label to be affixed to the product labeling position, product scaling means passing through cover, covered with a standard drive product rotation, label is roll coating, a label attached to the action is completed;
TECHNICAL PARAMETER:
| Labelling accuracy | ± 1mm (excluding product label error) |
| Labelling speed | 20 to 120 / min (depands product size) |
| Product size | ¢ 25≤ Diameter ≤ ¢ 100mm |
| Applicable label size | Width: ≤ 20mm – ≤160mm
Length: ≥80mm – 300mm |
| Overall size (LxWxH) | 2000 × 900 × 1500mm |
| Power supply | 220v, 50/60Hz |
| Machine weight | 150kg |

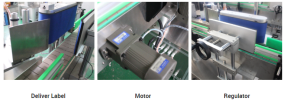

MACHINE STRUCTURE:
