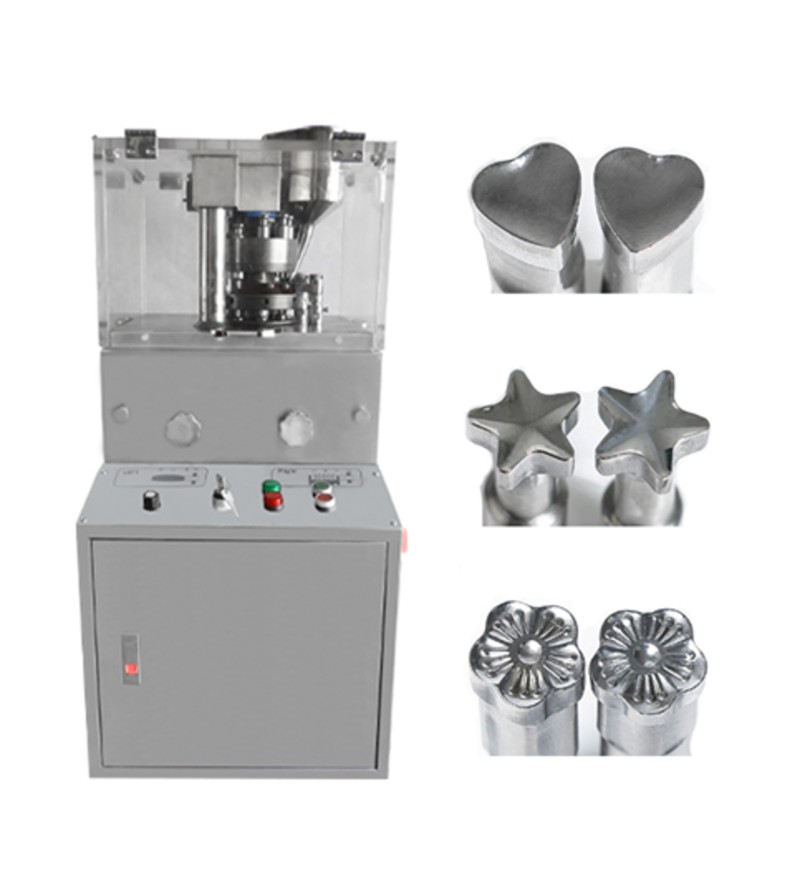

ROTARY TABLET PRESS MACHINE

SKU IA-9D/YPJ Category

Description

This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.

Main Feature

  1. The tableting machine enclosed from the outside part of the machine and made of stainless-steel construction.
  2.  The tableting machine meet GMP requirement.
  3. The tablet press has a continuous automatic rotating tablet press device with complete functions, which is used to press granular drug materials into various shapes.
  4. The machine able to press granular materials into round shape tablet, Oval shape and engraved tablet.
  5. Reliable safety sealing system, dust-proof system and noise-proof system.
  6. The machine has a highly transparent window, which can be observed during tablet pressing, and the parts can be easily removed for cleaning and maintenance.
  7. The tablet machine is equipped with four heavy duty Lock wheels.
  8. The tablet machine is operated with Single Phase, 240v power supply.
  9. Nodular cast iron QT400 for transfer technology, strong hardness, heat resistance, wear resistance and good system stability.
  10. The tool is made of GCR15 which has strong hardness and good corrosion resistance.

Technical Parameter

Brand IACHIEVE
Product No IA-9D/YPJ
Quantity of Punch Die on Resolving Table (set) 9
Maximum Working Pressure (KN) 50
Maximum Diameter of Tablet (mm) 20
Maximum Thickness of Tablet (mm) 6
Maximum Depth of Filling (mm) 15
Rotate Speed (r/min) 32
Production Capacity (pcs/h) 12000-15000
Voltage (v) 110
Motor Power (kw) 2.2
Overall Size (mm) 500*690*1150
Weight (kg) 350
