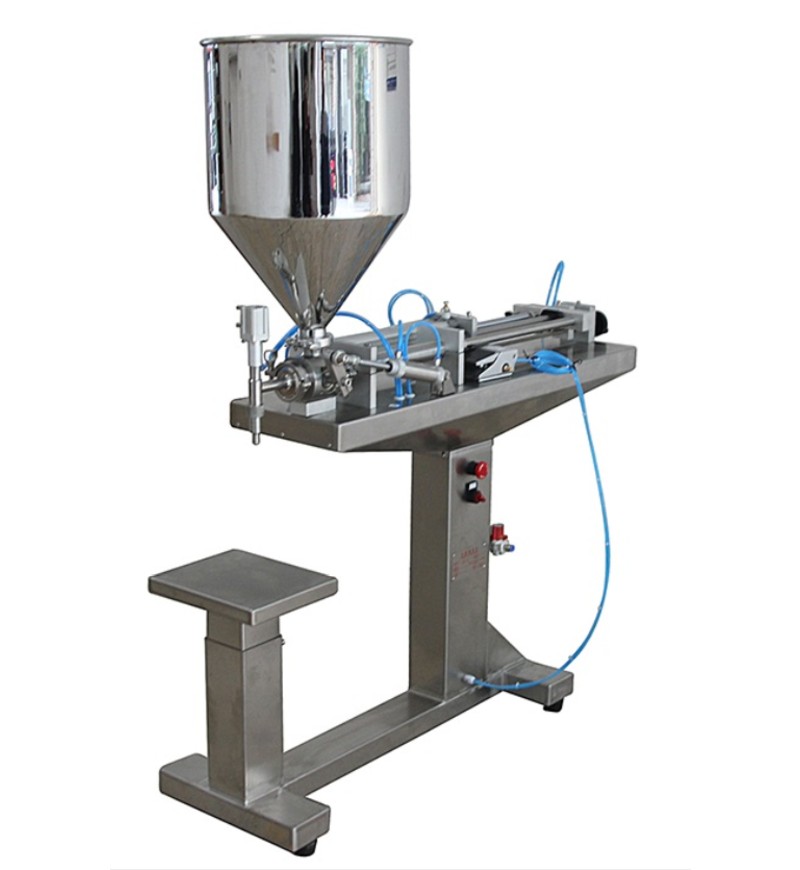

1 Nozzle Paste Type Filling Machine 100–1000ml | Stand

SKU IA-1000SH/GCGA Categories , Tag

Discover the single-nozzle paste type filling machine with stand for 100–1000ml filling. Features adjustable filling volume and speed, high accuracy, and anti-drip filling technology.

Description

IA series of Automatic Piston filler developed by our company to a high concentration of fluid filling the filling machine, filling volume and filling speed can be adjusted, filling accuracy high, filling valve adopts anti-leakage, anti-pull and lift the filling device.

The device has a simple structure is reasonable, easy to understand, and high accuracy features. It can be converted into a long, explosion-proof type, overflow filling system according to customer demand.

Technical Parameter

Model IA-1000SH/GCGA
Brand IACHIEVE
Type Paste type
Power 220v 50Hz
Air pressure 0.5-0.7Mpa
Power 300w
Filling range 100-1000ml
Filling speed 15-30 bottles/min
Filling accuracy ± 0.5%
Dimension 1310 x 550 x 380mm

Product Application
