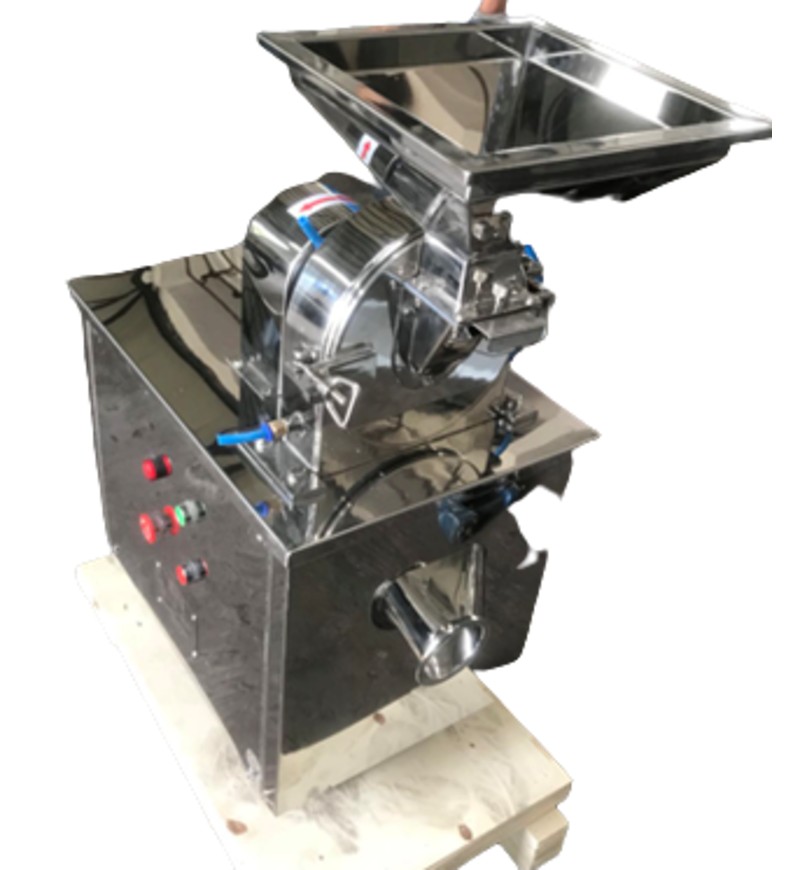

The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc. Characteristics the crushing chamber is equipped with the wind wheel type high speed rotary cutters so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
The machine uses the wind wheel type high speed rotary cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.
| Model | IA-250AC/FSJ |
| Capacity(kg/h) | 30-60 |
| Size of input granules(mm) | < 10 |
| Size of output granules(mesh) | 12-120 |
| Motor power(kw) | 5.5 |
| Speed of principal (axisr/mim) | 2900 |
| Weight(kg) | 195 |
| Overall size (L× W× H)(mm) | 770× 750 × 1500 |
