Description
Product Description :

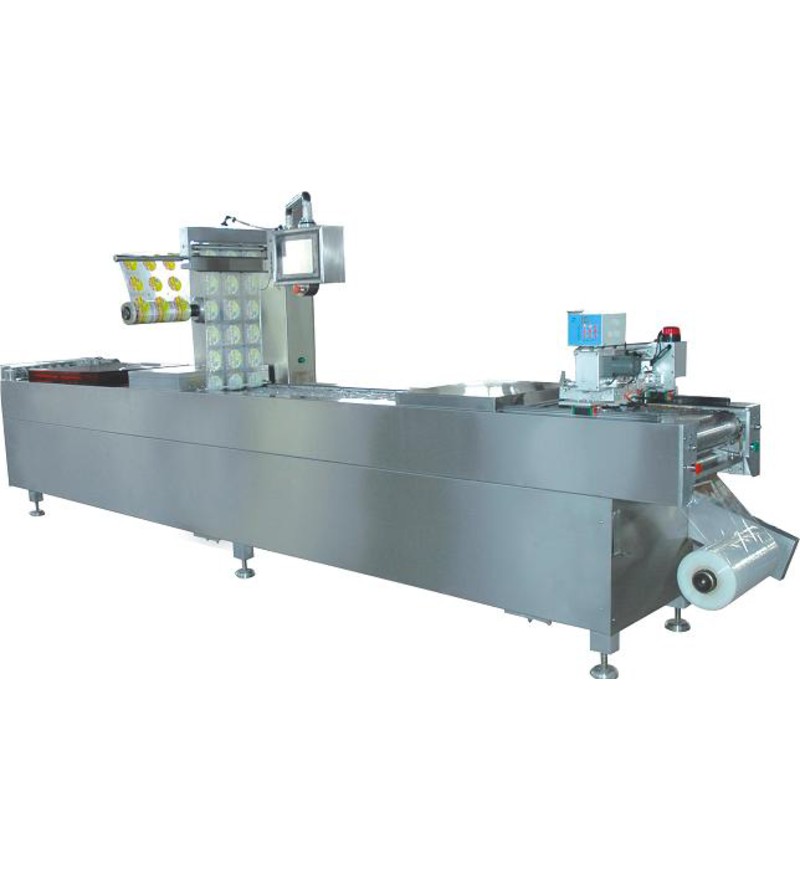

Vacuum Forming packing machine is mainly used for forming tray and seal packing. It can be with soft or hard film tray that sealed with either plastic film or aluminium made film.
*Food industries are using the machine to pack PICKLE, MEAT, FISH, FRUITS, SAUCE, ETC.
*Other industries such as PHARMEUTICAL PRODUCTS, METAL OR COSMETICS.
Working Process :
Forming (tray) → Filling (Automatic or by hand) → Vacuum Sealing → Date printing(Optional) → Cutting
Advantages :
- High efficiency. It can finish over 10,000 packages per day.
- Labor saving. It can finish the whole packing process from film forming to ready package.
- Easy operation. It’s easy to control the whole machine with PLC touch screen.
- Customized: It’s customized to do the size ,material and shape of the package.
- Multi-functional. It’s optional to add extra function, such as ultraviolet sterilization, auto weighing,
- Durable. Even a tiny part is of high top brand, such Busch pump, Schneider components.
- Easy to maintain. 304 stainless steel,as the major material of the machine, is high corrosion resistance.
Specification :
| Model | IA-420VF/DZ | IA-520VF/DZ |
| The top Width | 396mm | 496mm |
| The Underside Width | 422mm | 522mm |
| Room Size | 400x(200-400mm) | 500x(200-600mm) |
| Vacuum Pump | 100/160m３/h | 200m３/h |
| Shape Size | 5000 x 810 x 1700mm | 7000 x 910 x 1700mm |
| The Max Depth | 80mm | 80mm |
| Machine weight | 1600Kgs | 1800Kgs |
| Machine Power | 9Kw | 12Kw |
| Material | SS304 | SS304 |
